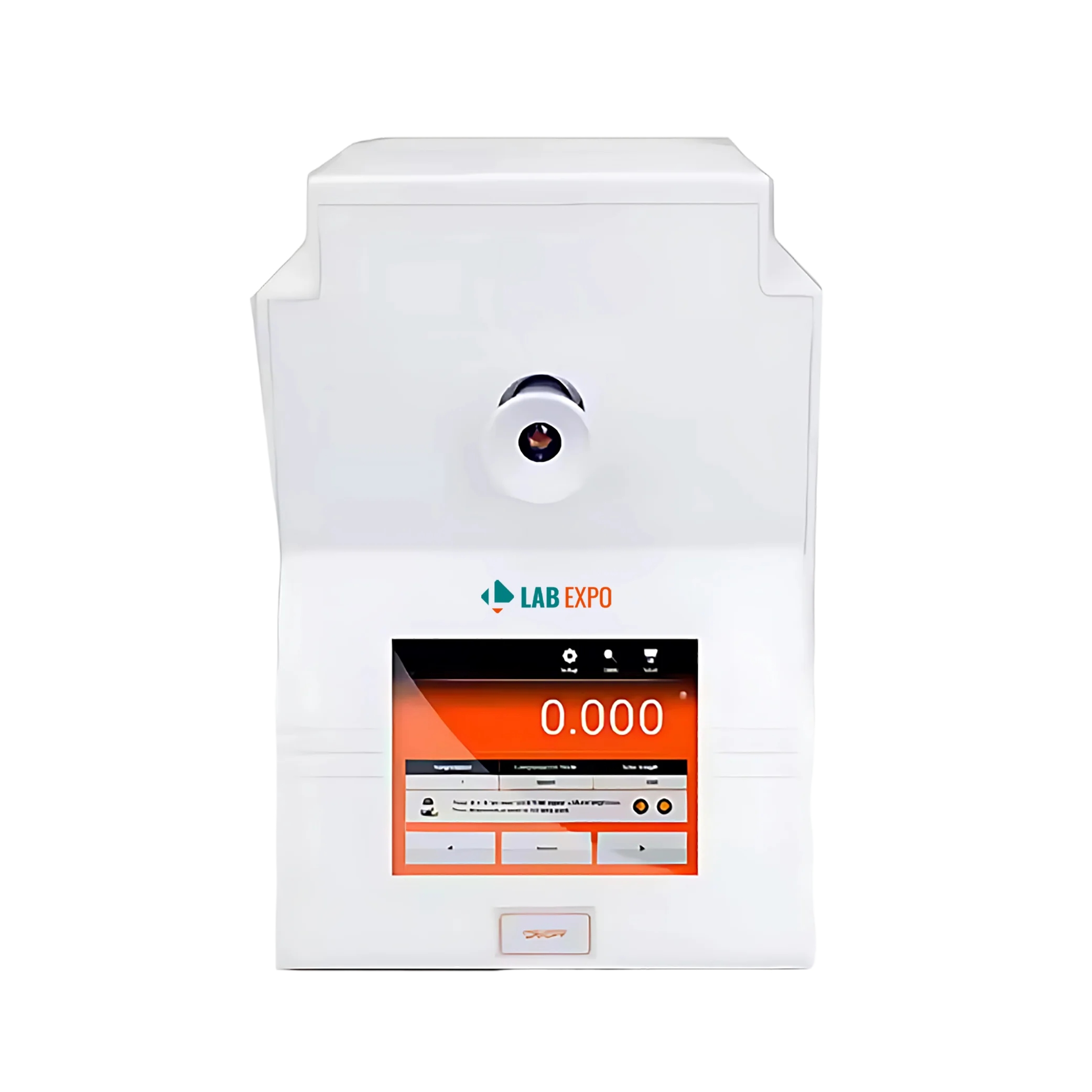

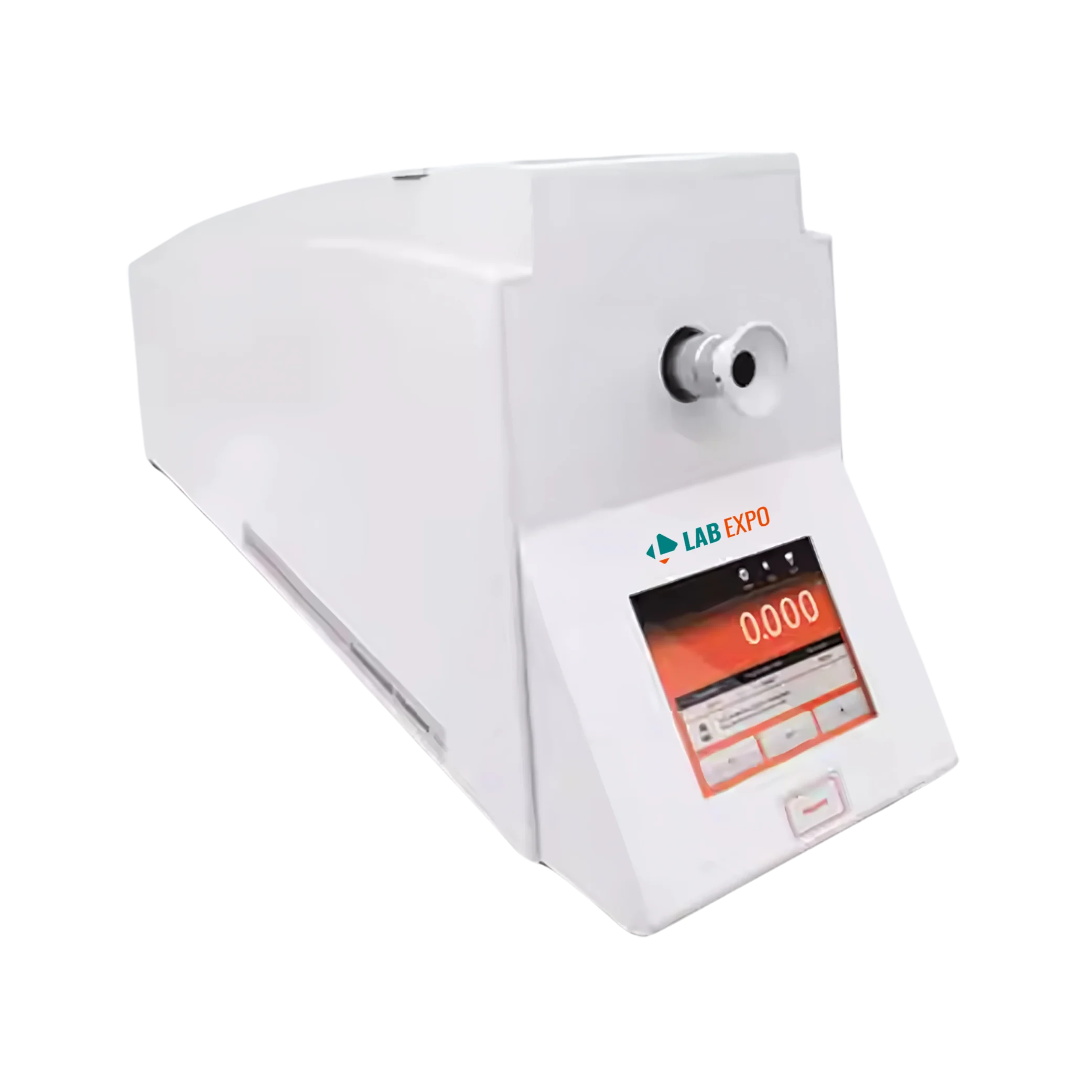

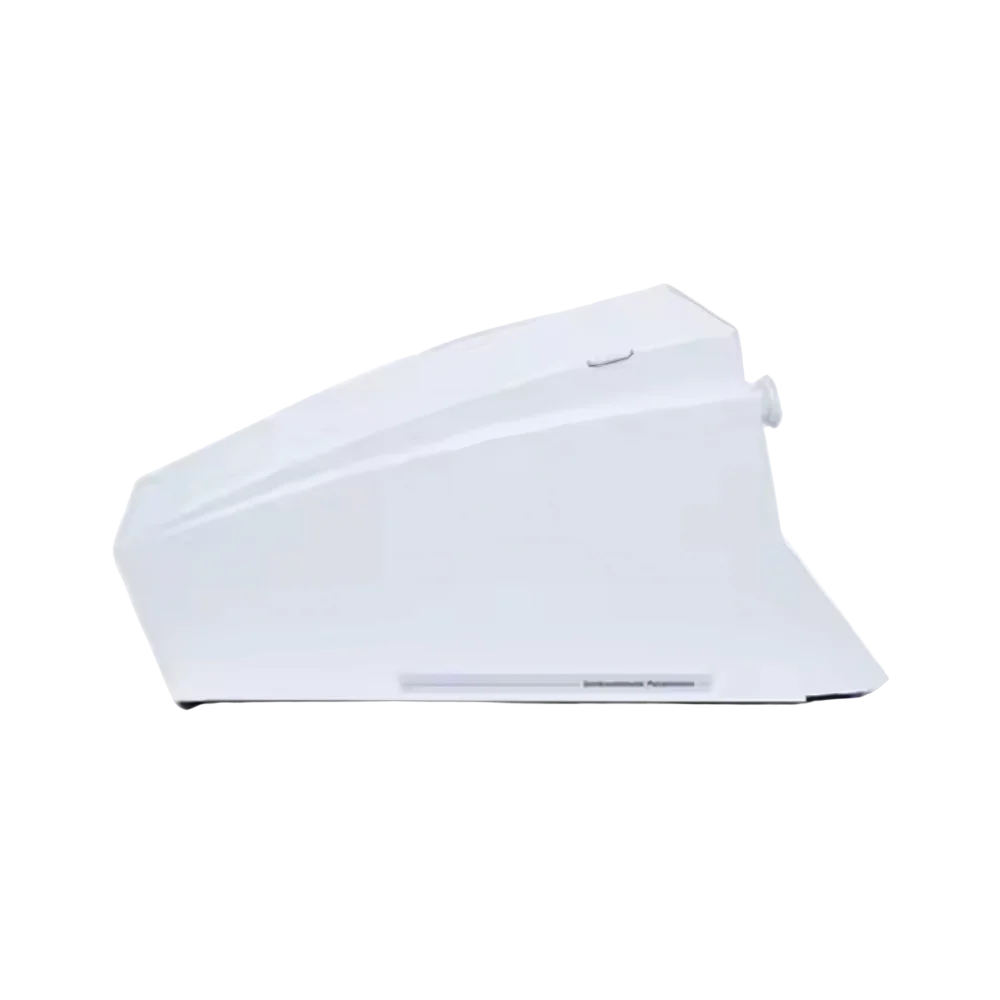

Semi automatic Polarimeter 53-PMT101

Name: Semi automatic Polarimeter 53-PMT101
Brand: Labexpo
SKU: 53-PMT101
Rating: 4.4 (969 reviews)

Lab Expo Semi automatic Polarimeter 53-PMT101 comes with 5.6 inch TFT touch screen, has one touch reset function to automatically restore the polarimeter to the original settings. The long-life LED with 589 nm filter is used instead of traditional limited hours light source. The manual zero point calibration allows users to adjust the optical field of view and eliminate the zero point error. It has four measurement options which includes optical rotation, specific rotation, concentration and international sugar content.

$3,120.00 $ 2600

Semi automatic Polarimeter 53-PMT101 - Specifications

Measurement mode	Four modes: optical rotation, specific rotation, concentration and international sugar content
Measuring range	± 90°. ± 130° Z
Measurement accuracy	± 0.02°, ± 0.05° Z
Display/resolution	0.005°
Wavelength	589 nm
Light source	LED + interference filter
Test tube length	50 / 100 / 200 mm
Temperature measurement range	0 °C to 100 °C
Temperature measurement accuracy	± 0.5 °C
Data storage	100 sets of data storage
Interface	USB
Display screen	5.6 inch TFT touch screen
Dimension (L × W × H)	550 × 300 × 220 mm
Power	AC 220 V, 50 Hz
Weight	7.5 kg

Semi automatic Polarimeter 53-PMT101 - Key Features

Four selectable measurement options for optical analysis
Long LED life with 589 nm interference filter source
Automatic calculations for non-standard test tube lengths
Built-in temperature sensor with real-time chamber sensing
100 sets of data storage capacity for measurement records
Automatic marking for time date and sample identification

Semi automatic Polarimeter 53-PMT101 - Applications

Function	Implementation
Quality control labs	± 0.02° measurement accuracy ensures precise optical rotation analysis
Pharmaceutical testing	100 sets of data storage supports batch sample documentation
Clinical laboratories	589 nm wavelength enables standardized sucrose concentration measurement
Research institutions	Four measurement modes allow specific rotation and international sugar content analysis
Industrial settings	AC 220 V, 50 Hz power input accommodates standard laboratory electrical supply

Semi automatic Polarimeter 53-PMT101 - Optional Accessories

Polarizing test tube 100 / 200 mm

Semi automatic Polarimeter 53-PMT101 - Catalog

Semi automatic Polarimeter 53-PMT101 Catalog
