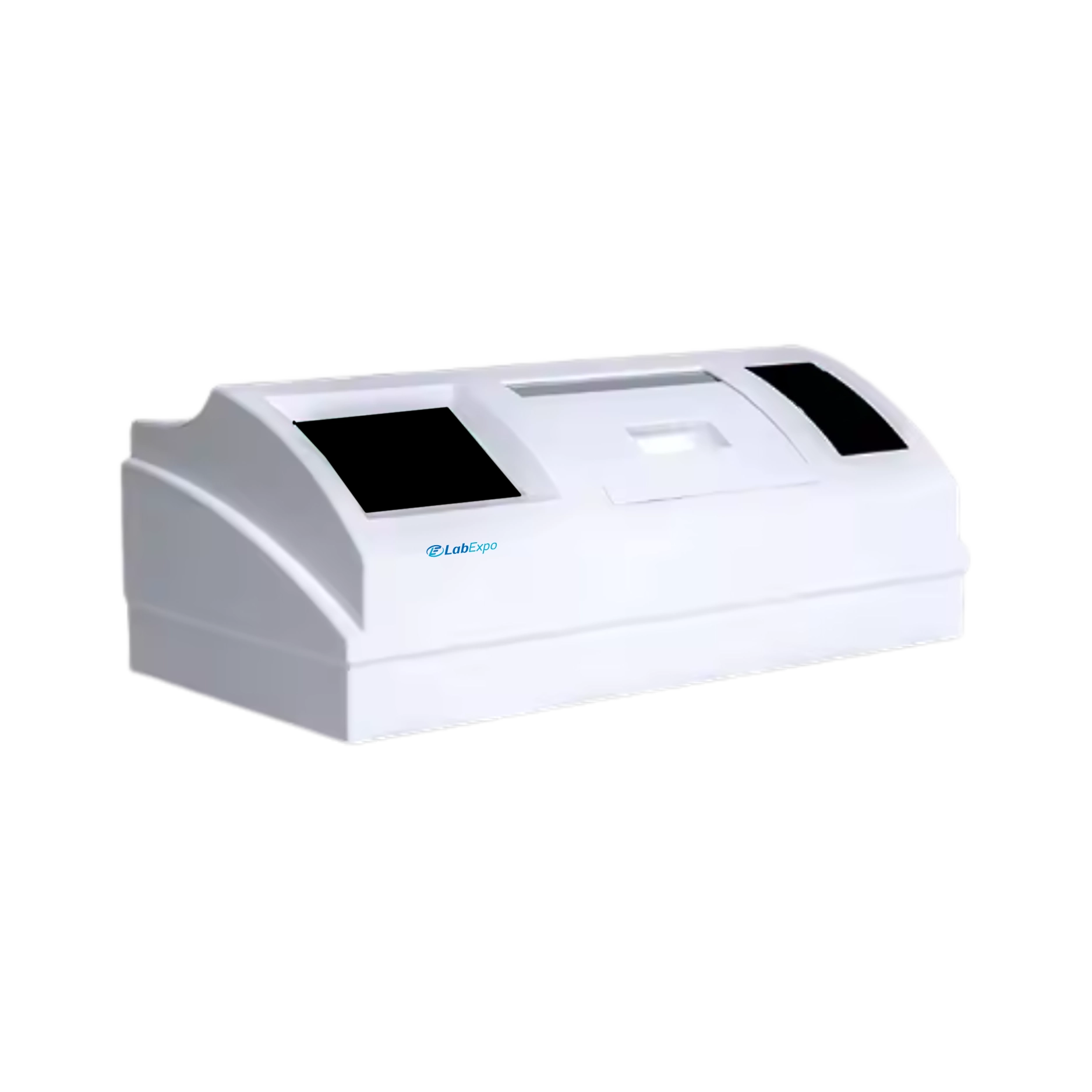

Automatic Polarimeter LE-PMT202

Automatic Polarimeter LE-PMT202

Lab Expo Automatic Polarimeter LE-PMT202 is designed with a working wavelength of 589.3 nm for accurate and stable measurements. It provides a measuring range of ±90° optical rotation and ±259°Z sugar for versatile measurements. Built-in 7-inch TFT real color touch screen offers clear display of measurement results. Our Automatic Polarimeter is suitable for measuring rotation to assess purity, concentration, chemical activity, and composition of active substances.

$5,438.00 $ 4532

Automatic Polarimeter LE-PMT202 - Specifications

Measurement Mode Optical Rotation, Specific Rotation, Concentration and Sugar
Measuring Range Optical Rotation ± 90°, Sugar ± 259 ° Z
Minimum Reading 0.001°(Optical Rotation)
Accuracy ± 0.01 ° (- 45 ° ≤ Optical Rotation ≤ + 45 °)± 0.02 ° (When the Optical Rotation is Less Than - 45 ° or the Optical Rotation is More Than + 45 °)
Repeatability 0.002 ° (Optical Rotation)
Working Wavelength 589.3nm
Measurable Sample min. Transmittance 1%
Light Source LED
Display Mode 7-inch TFT Real Color Touch Screen
Interface USB
Data Storage 1000 Groups of Data
Power Consumption 220V ± 22V, 50Hz ± 1Hz
Power Supply 250 W
Weight 28 Kg

Automatic Polarimeter LE-PMT202 - Key Features

  • LED light source with 250W power consumption
  • 7-inch TFT real color touch screen display
  • 4 selectable measurement options for analysis
  • Automatic calculations with data storage capability
  • USB interface for data transfer and control

Automatic Polarimeter LE-PMT202 - Applications

FunctionImplementation
Quality control labs±0.01° accuracy ensures precise optical rotation measurement
Clinical analysis589.3nm wavelength enables reliable sugar concentration testing
Research facilities±90° optical rotation range supports diverse compound analysis
Industrial testing250W power supply allows continuous operation in production settings
Pharmaceutical labs1000-group data storage facilitates batch sample tracking

Automatic Polarimeter LE-PMT202 - Catalog

Automatic Polarimeter LE-PMT202 Catalog

Automatic Polarimeter LE-PMT202

Automatic Polarimeter LE-PMT202

Related Polarimeter

Lab Expo Polarimeters enable accurate optical rotation measurement across multiple modes with stable illumination and integrated temperature control for consistent analysis. Designed to meet polarimeter instrument requirements, they support data storage for result comparison and touchscreen operation for efficient control. These units suit research, pharmaceutical, and chemical workflows requiring precise optical measurements under varying sample conditions.
