Automatic Polarimeter LE-PMT206

Automatic Polarimeter LE-PMT206

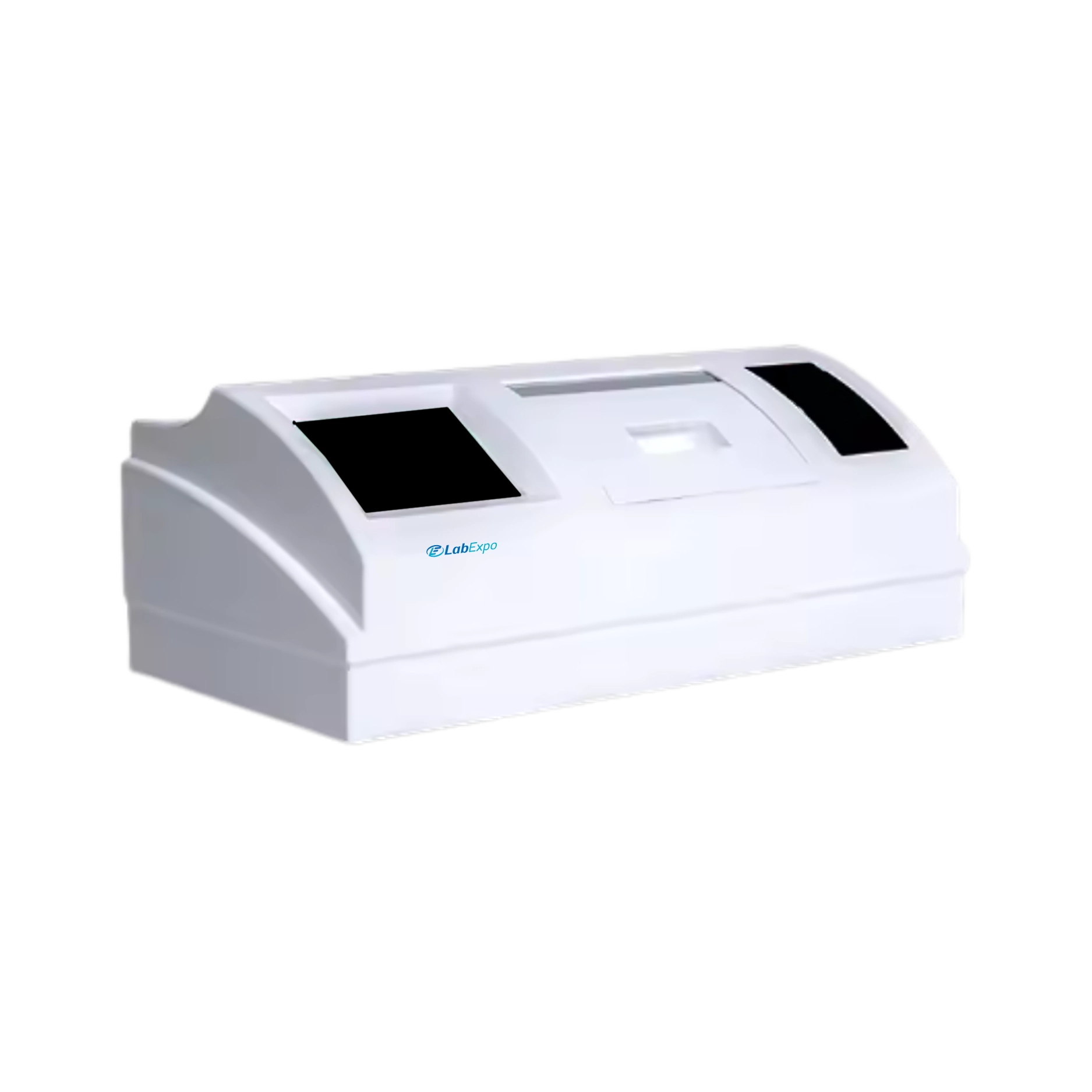

Lab Expo Automatic Polarimeter LE-PMT206 delivers versatile measurement capabilities through optical rotation, specific rotation, concentration, sugar, and custom modes. It features a 10-inch touch screen that provides clear display and intuitive user interaction. Equipped with a precise temperature control ranging from 10℃ to 60℃. Our Automatic Polarimeter is suitable for pharmaceutical, chemical, and food industries, as well as academic research laboratories.

$15,883.00 $ 13236

Automatic Polarimeter LE-PMT206 - Specifications

Measurement Mode Optical Rotation, Specific Rotation, Concentration, Sugar, Custom
Calibration Automatic Calibration
Measuring Range Optical Rotation ± 90°, Sugar ± 259 ° Z
Minimum Reading 0.001° (Optical Rotation)
Indication Error ± 0.005°
Repeatability 0.002° (Optical Rotation)
Temperature Control Range 10℃ to 60℃
Temperature Control Accuracy ± 0.1 ℃
Working Wavelength 589.3nm
Transmittance 0.1%
Light Source LED
Display Mode 10-inch TFT Real Color Touch Screen
Interface USB, RS232 Connection
Power Consumption 220V ± 22V, 50Hz ± 1Hz
Power Supply 250 W
Weight 28 Kg

Automatic Polarimeter LE-PMT206 - Key Features

  • Automatic calibration with ±0.1C temperature accuracy
  • Peltier temperature control from 10C to 60C range
  • LED cold light source at 589.3nm wavelength
  • Data statistics retrieval via USB RS232 interface
  • User-friendly interface on 10-inch TFT touch screen

Automatic Polarimeter LE-PMT206 - Applications

FunctionImplementation
Quality control labs±0.1℃ temperature accuracy ensures measurement consistency
Pharmaceutical testing259 °Z sugar range supports sucrose analysis
Food industry labsLED light source enables stable wavelength operation
Chemical research facilities10-inch touch screen facilitates multi-mode selection
Academic laboratories0.002° repeatability allows reliable sample verification

Automatic Polarimeter LE-PMT206 - Catalog

Automatic Polarimeter LE-PMT206 Catalog

Related Polarimeter

Lab Expo Polarimeters enable accurate optical rotation measurement across multiple modes with stable illumination and integrated temperature control for consistent analysis. Designed to meet polarimeter instrument requirements, they support data storage for result comparison and touchscreen operation for efficient control. These units suit research, pharmaceutical, and chemical workflows requiring precise optical measurements under varying sample conditions.
