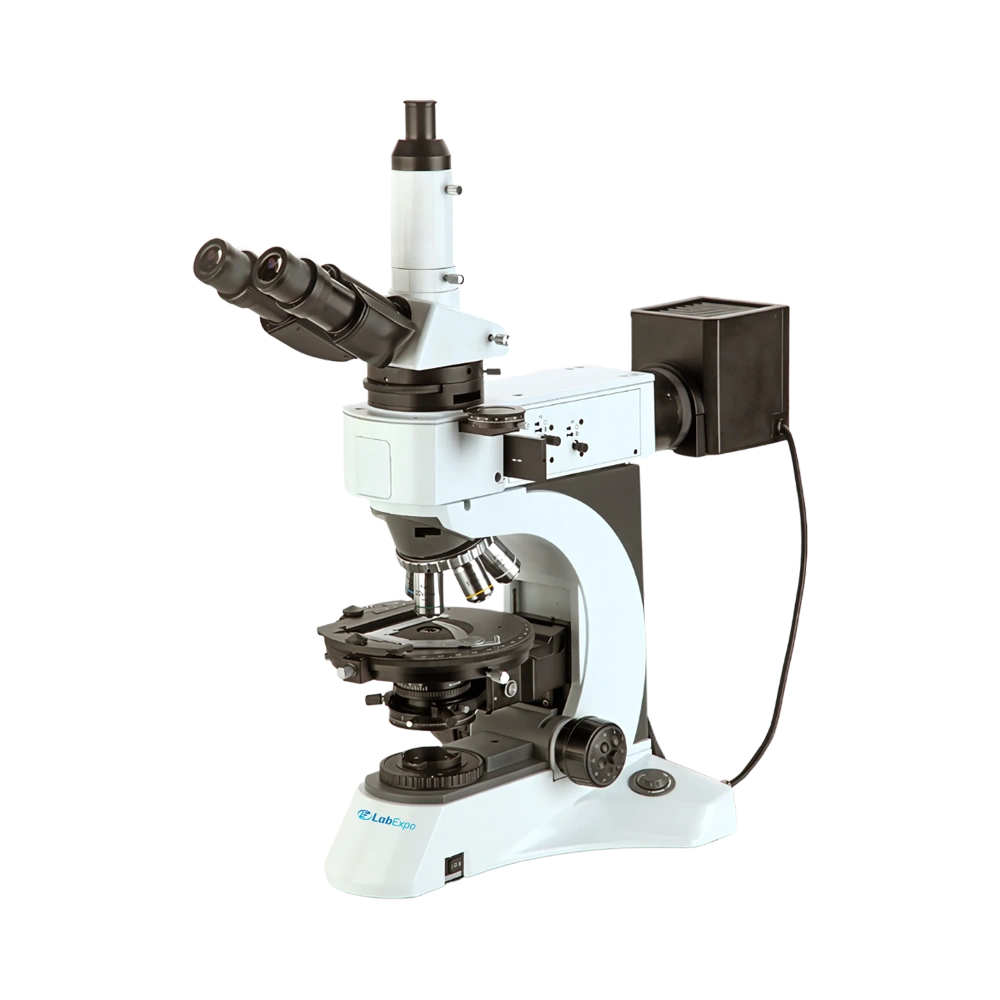

Lab Expo Polarizing Microscope LE-PM101 is designed for accurate optical analysis and smooth user operation. It features a rotatable analyzer with 0º to 90º graduation for precise polarization angle control. Equipped with a quick-switch system between orthoscopic and conoscopic observation modes. Integrated quintuple nosepiece and high precision revolving stage allow fine sample positioning. Our Polarizing Microscope is suitable for applications in geology, mineralogy, material science, and optical research.
$9,744.00 $ 8120
| Optical System | Infinite optical system |
| Viewing Head | Hinged Type Trinocular Head Inclined At 30°, Interpupilary 48 to 75mm |
| Eyepiece | Plan eyepiece EW10X/22 |
| Objective | Strain-Free Plan Achromatic Objective |
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable |
| Analyzer | 360° Dial Rotation Minimum Scale Reading：0.1°（Vernier Scale） |
| Conoscopic Observation Attachment | Switch Between Orthoscopic and Conoscopic Observation, Bertrand Lens Position Adjustable |
| Optical Compensator | First-Order Red Plate, Guarter-Wave Plate, Quartz Wedge |
| Polarizing Rotatable Stage | Diameter Φ170mm, Center Adjustable, 360° Scale, Minimum Divison 1°, Minimum Reading 6' by Means of Vernier Scale, 45° Click Stop Knob |
| Focusing | Coaxial Coarse & Fine Adjustment, Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation |
| Polarizer | Reflected: Fixed |
| Illumination | Reflected Light: 24V/100W Halogen Lamp, Brightness Adjustable |
Function Implementation Geological sample analysis 0.1° analyzer rotation enables precise polarization angle measurement Mineralogy research labs Φ170mm rotatable stage supports full 360° sample orientation Material science inspection 32mm focusing range accommodates varied specimen thickness Optical crystallography work Conoscopic observation switch allows detailed interference pattern study Quality control environments Fine division 0.001mm ensures high-precision focus adjustment
Lab Expo Polarizing Microscopes are structured around controlled polarization optical paths to analyze birefringent and anisotropic materials with precision. This polarized light microscope integrates high-quality polarizers, analyzers, and a smooth rotating stage for accurate light interference control. Stable illumination, precise component alignment, and high-resolution optics enable precise identification of minerals, crystals, fibers, and polymers in material science, forensic, and research laboratory workflows.
