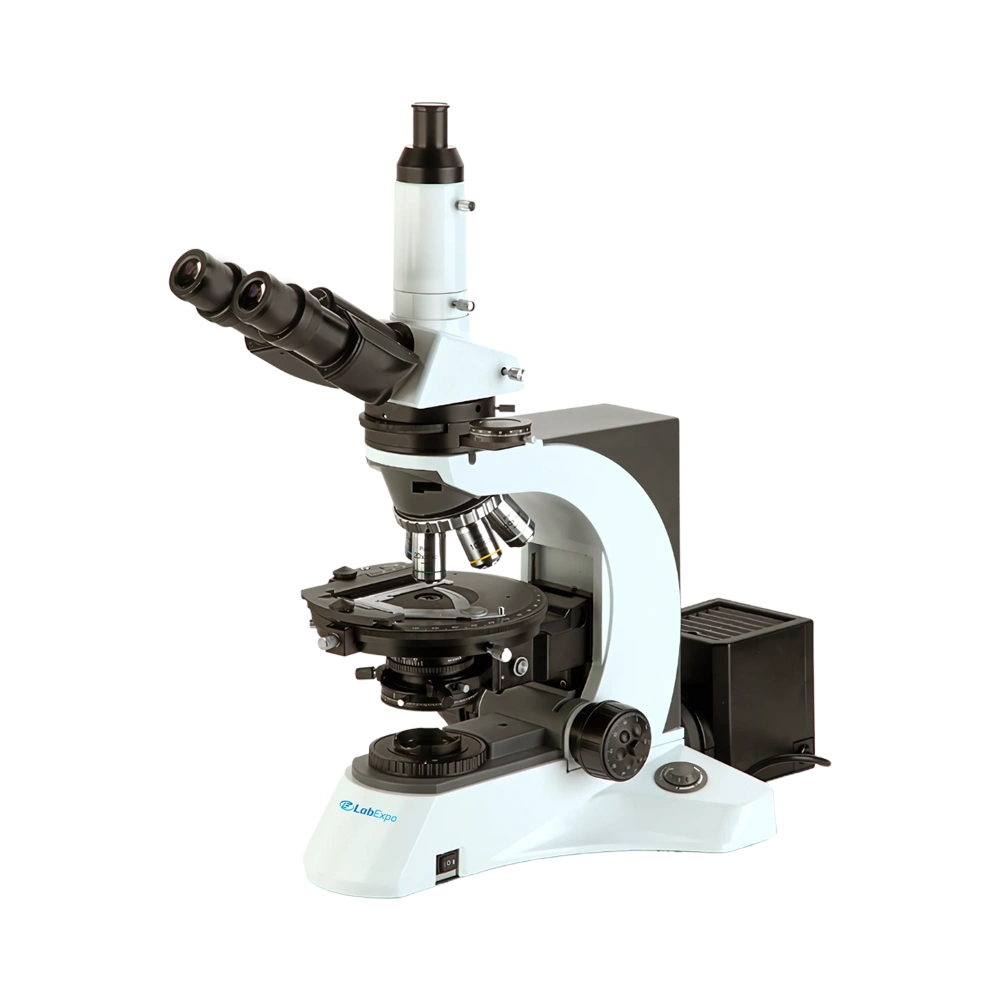

Lab Expo Polarizing Microscope LE-PM102 delivers high-contrast, strain-free imaging for optical analysis. It features single or othorgonal polarization with support for conoscopic observation techniques. Equipped with both transmitted and reflected light sources for versatile viewing conditions. Integrated with a long-life halogen lamp to ensure stable and consistent illumination. Our Polarizing Microscope is suitable for applications in geology, petroleum, chemical analysis, polymer research, and the LED industry.
$4,704.00 $ 3920
| Optical System | Infinite Optical System |
| Viewing Head | Hinged Type Trinocular Head Inclined At 30°, Interpupillary 48 to 75mm |
| Eyepiece | Plan Eyepiece EW10X/22 |
| Objective | Strain-Free Plan Achromatic Objective |
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable |
| Analyzer | 360° Dial Rotation Minimum Scale Reading：0.1°（Vernier Scale） |
| Conoscopic observation attachment | Switch Between Orthoscopic and Conoscopic Observation, Bertrand Lens Position Adjustable |
| Optical Compensator | First-Order Red Plate, Guarter-Wave Plate, Quartz Wedge |
| Polarizing Rotatable Stage | Diameter Φ170mm, Center Adjustment, 360° Scale, Minimum Division 1°, Minimum Reading 6' By Means Of Vernier Scale, 45° Click Stop Knob |
| Attachable Stage | Moving Range 30mmx40mm (Optional) |
| Condenser | Strain-Free Swing Condenser NA0.9/0.25 |
| Focusing | Coaxial Coarse & Fine Adjustment, Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation |
| Polarizer | 360°Rotatable 0°Position Adjustable |
| Illumination | 24V/100W Halogen Lamp, Brightness Adjustable |
| Filter | Blue Filter Φ45mm |
Function Implementation Geological sample analysis 360° rotatable stage with 1° minimum division enables precise angular measurement Petroleum testing labs Strain-free swing condenser NA0.9/0.25 supports high-resolution transmitted light imaging Polymer research facilities Infinite optical system maintains image flatness across wide field of view Chemical quality control Vernier scale analyzer with 0.1° minimum reading allows accurate retardation measurement Materials inspection workflows 24V/100W halogen lamp with adjustable brightness ensures consistent illumination for extended use
Lab Expo Polarizing Microscopes are structured around controlled polarization optical paths to analyze birefringent and anisotropic materials with precision. This polarized light microscope integrates high-quality polarizers, analyzers, and a smooth rotating stage for accurate light interference control. Stable illumination, precise component alignment, and high-resolution optics enable precise identification of minerals, crystals, fibers, and polymers in material science, forensic, and research laboratory workflows.
