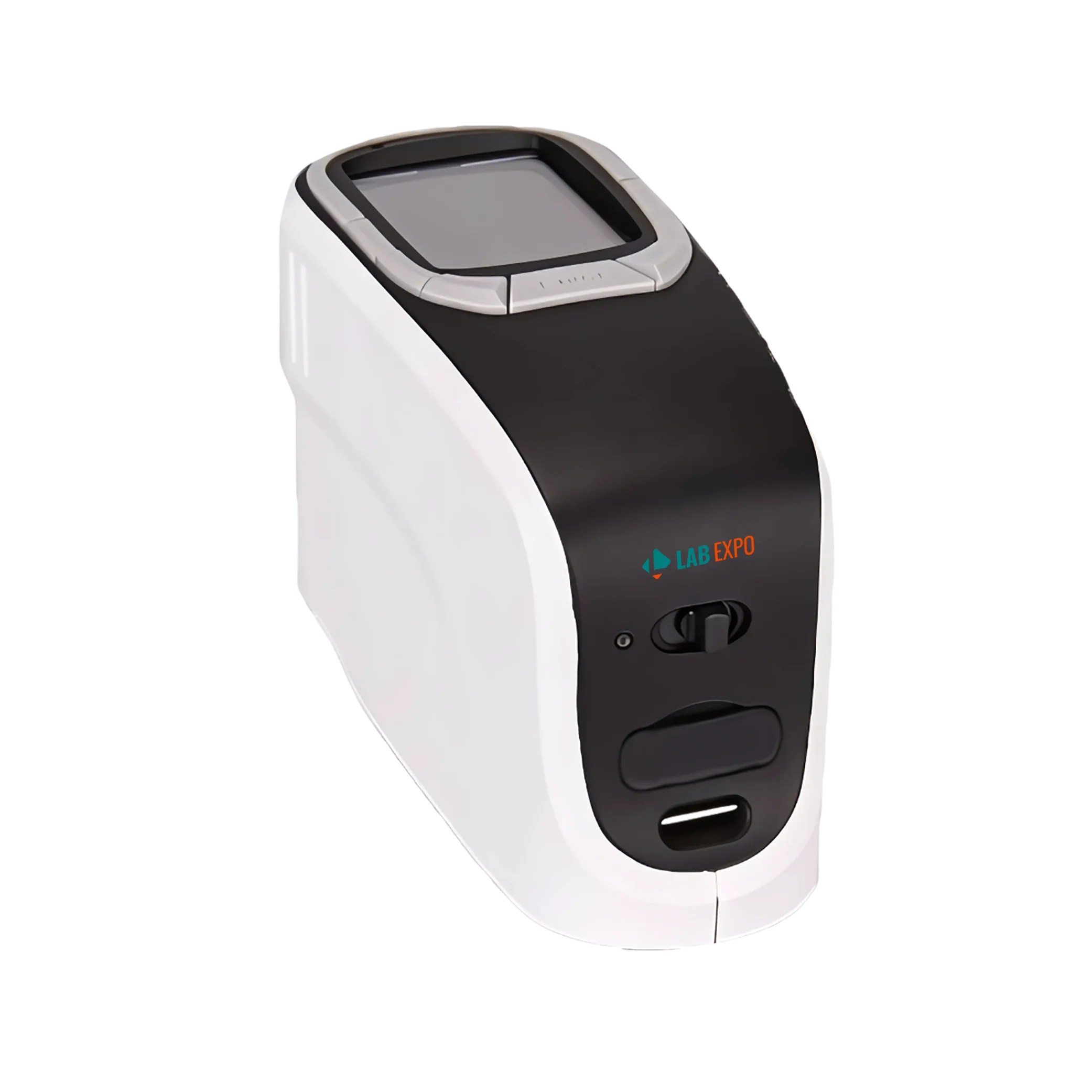

Lab Expo Portable spectrophotometer 15A-PSP102 is adopted with every test calibration ETC technology, where the standard whiteboard is included in the optical system for great accuracy of every measurement. Equipped with automatic gloss compensation technology to ensure the accuracy of the color measurement data for the surface of different glosses. The measurement of the color of the powder, granules & other materials can be done by adding the powder accessories to this spectrophotometer.
$9,571.00 $ 7976
| Illumination | d/8 (Diffused lighting, 8° observation angle) SCS optical engine (light splitting and integration system) ETC (real time calibration technology ) SCI (specular reflection included) & SCE(specular reflection excluded)simultaneous measurement |
| Repeatability | Light splitting reflectivity：standard deviation within 0.08% Color values:ΔE*ab |
| Sensor | Photoelectric diode sensor |
| Size of integrated sphere | 40 mm, alvan diffused reflection surface coating |
| Illumination light source | CLED |
| Light source | A, C, D50, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, DLF, TL183, TL184, NBF, U30, CWF |
| Wavelength range | 400-700 nm |
| Wavelength interval | 10 nm |
| Half spectral width | 5 nm |
| Reflectivity range & resolution | 0 to 200%, 0.01% |
| Observation angle | 2°/10° |
| Measurement time interval | 0.5 seconds |
| Measurement time | 2 seconds |
| Measuring aperture | 8 mm |
| Color space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, hunterlab, munsell Mi, CMYK, RGB, HSB |
| Color difference formula | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555,color classification |
| Other colorimetric indices | WI (whiteness) (ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby) YI (yellowness) (ASTM D1925，ASTM E313-00,ASTM E313-73),Tint (ASTM E313,CIE,Ganz) Metamerism index Milm, Staining fastness, Color fastness |
| Color matching system | Not match |
| UV light source | Not included |
| Work temperature range | 0 to 45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Storage temperature range | 25℃ to 55℃ relative humidity 80% or below(at 35°C ),no condensation |
| Battery capacity | Rechargeable, 10000 continuous tests, 7.4V/6000 mAh |
| Data being displayed | SPD distribution/data，sample\'s color values，color difference values/graph，pass/fail results,color error tendency，color simulation display measurement area，history data color simulation，manual input standard sample generate measurement report |
| Interface | USB |
| Data storage | 100 test samples , 200 measurement records for each sample |
| Display | True color 2.8 inch TFT touch screen |
| Light source longevity | 10 years, 3 million tests |
| Dimension (L*W*H) | 181 × 73 × 112 mm |
| Weight | 550 g |
Function Implementation Color measurement labs 40 mm integrated sphere enables diffuse reflection analysis Quality control stations 0.5 second measurement interval supports rapid sample throughput Field testing environments 7.4V/6000 mAh battery allows 10,000 continuous tests Powder and granule analysis Accessory compatibility facilitates non-liquid material evaluation Industrial inspection points USB interface enables direct data transfer to host systems
| Accessories No. | Name |
| 1 | Power cord |
| 2 | USB cable |
| 3 | Driving software |
| 4 | Color QC software |
| 5 | Black and white calibration tile |
Lab Expo Portable Spectrophotometer units are designed for portable color and reflectance analysis in industrial, coating, and material testing applications. Models support portable spectrometer measurement with d/8 illumination geometry, SCI/SCE simultaneous analysis, and high-repeatability handheld spectrophotometer performance.
