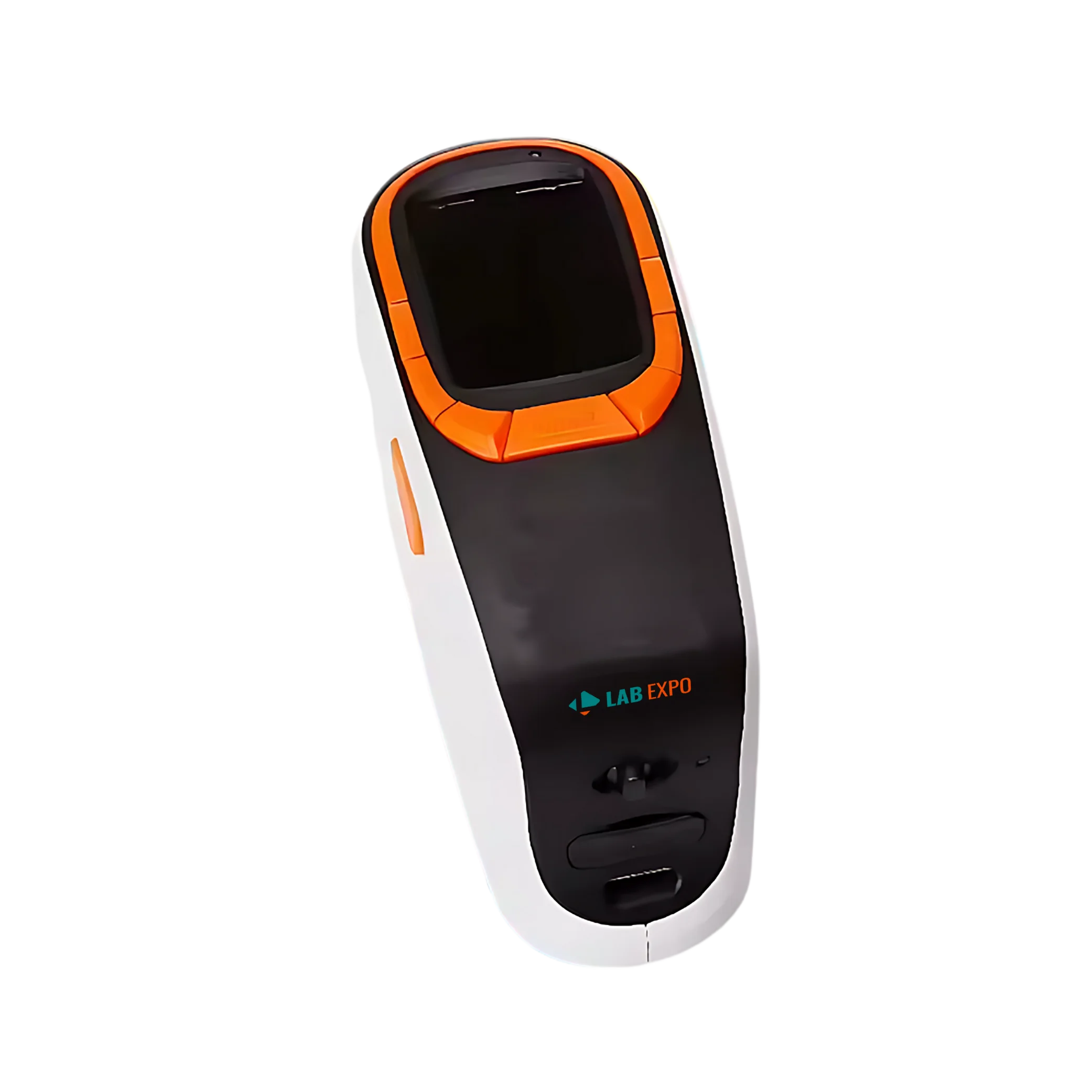

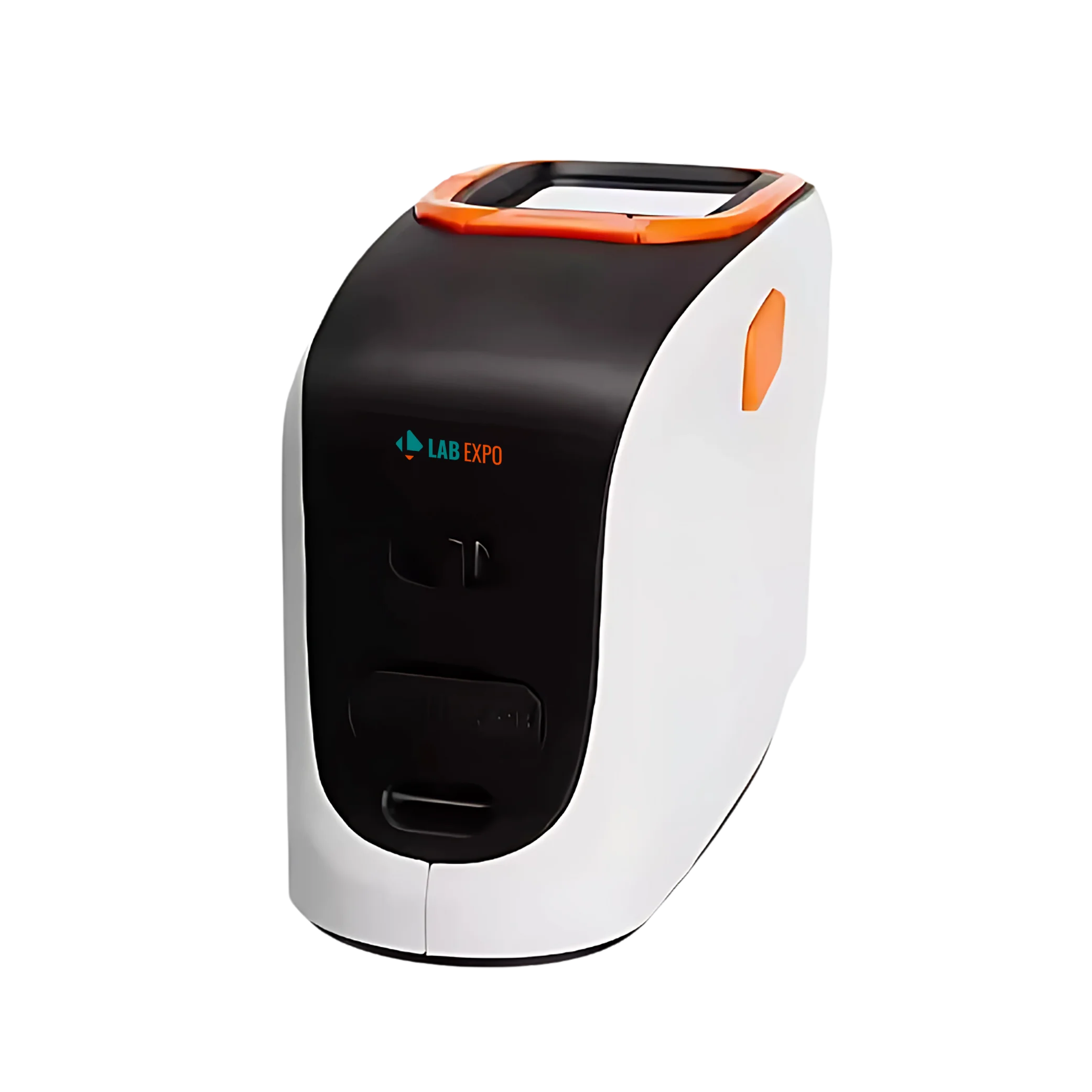

Lab Expo Portable spectrophotometer 15A-PSP104 is adopted with every test calibration ETC technology, where the standard whiteboard is included in the optical system for great accuracy of every measurement. Equipped with automatic gloss compensation technology to ensure the accuracy of the color measurement data for the surface of different glosses. The measurement of the color of the powder, granules & other materials can be done by adding the powder accessories to this spectrophotometer.
$10,385.00 $ 8654
| Illumination | Observation angles 2°/10° Illumination: d/8 (Diffused lighting, 8° observation angle) SCI (specular reflection included) & SCE(specular reflection excluded)simultaneous measurement |
| Repeatability | Light splitting reflectivity：standard deviation within 0.08% Color values:ΔE*ab |
| Sensor | Dual light path sensor array |
| Size of integrated sphere | 40 mm, alvan diffused reflection surface coating |
| Illumination light source | Pulse Xenon Lamp |
| Light source | A, C, D50, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, DLF, TL183, TL184, NBF, U30, U35, CWF |
| Wavelength range | 360-740 nm |
| Wavelength interval | 10 nm |
| Half spectral width | 5 nm |
| Reflectivity range & resolution | 0 to 200%, 0.01% |
| Observation angle | 2°/10° |
| Measurement time interval | 2 seconds |
| Measurement time | 2 seconds |
| Measuring aperture | 8 mm |
| Color space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, hunterlab, munsell Mi, CMYK, RGB, HSB |
| Color difference formula | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1), ΔE*94,ΔE*00,ΔEab(Hunter),555, color classification |
| Other colorimetric indices | WI (whiteness) (ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby) YI (yellowness) (ASTM D1925，ASTM E313-00,ASTM E313-73),Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, adhesive, Staining fastness, color fastness, ISO b/changing Color fastness, ISO brightness, 8 glossiness, A , T, M, E density |
| Color matching system | Matches |
| UV light source | Included |
| Work temperature range | 0 to 45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Storage temperature range | 25℃ to 55℃ relative humidity 80% or below(at 35°C ),no condensation |
| Data being displayed | Reflective graph/value，sample\'s color values，color difference values/graph，pass/fail results,color error tendency，color simulation display measurement area，history data color simulation，manual input standard sample generate measurement report |
| Interface | USB, Bluetooth |
| Data storage | 100 test samples , 200 measurement records for each sample |
| Display | True color TFT touch screen |
| Light source longevity | 10 years, 3 million tests |
| Dimension (L*W*H) | 181 × 73 × 112 mm |
| Weight | 550 g |
Function Implementation Quality control labs 2 seconds enables rapid sample throughput Color matching applications CIE-Lab, LCh supports precise color analysis Field testing environments 550 g weight allows portable operation Powder and granule analysis Powder accessories enable material measurement Gloss variation compensation Automatic gloss compensation ensures accurate data
| Accessories No. | Name |
| 1 | Power cord |
| 2 | USB cable |
| 3 | Driving software |
| 4 | Color QC software |
| 5 | Black and white calibration tile |
Lab Expo Portable Spectrophotometer units are designed for portable color and reflectance analysis in industrial, coating, and material testing applications. Models support portable spectrometer measurement with d/8 illumination geometry, SCI/SCE simultaneous analysis, and high-repeatability handheld spectrophotometer performance.
