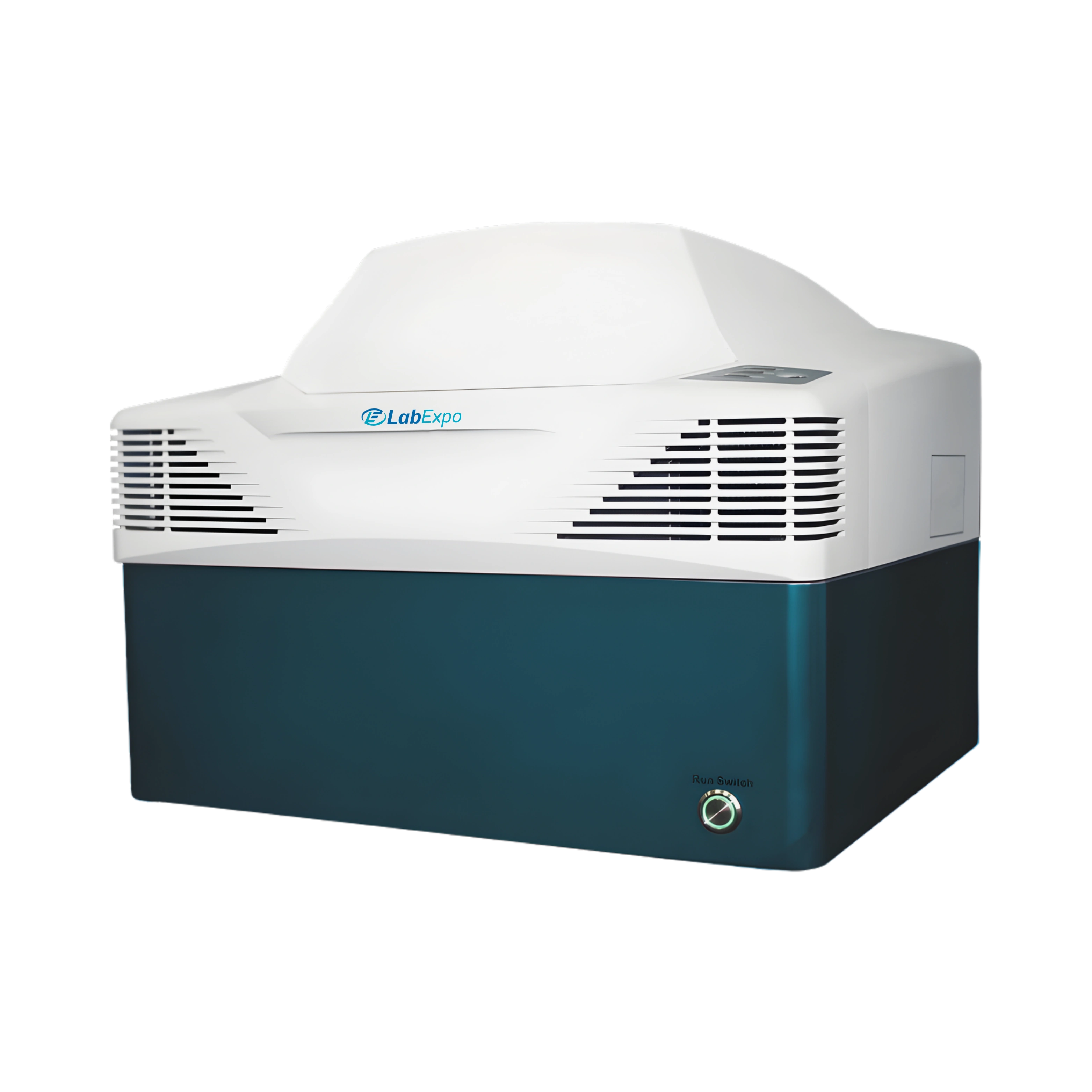

Real Time PCR 62-RTP200

Lab Expo Real Time PCR 62-RTP200 features a 96 well sample block, each holding 0.1 ml reaction tubes. It features a reaction volume range of 10 to 50 µl, with a recommended working volume of 20 µl. Equipped with advanced temperature control, supporting precise management of both block and sample temperatures. Our Real Time PCR is ideal for experiments requiring high temperature accuracy and uniformity for consistent results.

$16,589.00 $ 13824

Real Time PCR 62-RTP200 - Specifications

Sample Block Capacity 96 wells × 0.1 ml
Reaction Volume 10 to 50 µl
Block Temp.Range 0℃ to 105℃
Maximum channels number of fluorescence detection 2 channels
Max. Heating Rate 6℃/sec
Max. Cooling Rate 5℃/sec
Temperature Uniformity ≤±0.2℃ at 90℃
Temperature Accuracy ≤±0.1℃ (10 seconds after reach 90℃）
Display Resolution 0.1℃
Heat Lid Temp. Range 30℃ to 112℃
Temperature Control Mode Block & Calculated sample
Temperature Differential Range 1℃ to 42℃
Fluorescence Excitation Range 300 to 800 nm
Fluorescence Detection Range 500 to 800 nm
Calibrated Dyes at Installation F1: FAM, SYBR Green 1; F2: VIC HEX TET JOE
Computer Operating Systems Windows10, Windows7, Windows XP
Power Consumption 600 W
AC Power Supply 100 to 240 V, 50 to 60 Hz
Dimension 334 × 280 × 365 mm
Packaging Dimension 480 × 410 × 520 mm
Net Weight 13 Kg
Gross Weight 17 Kg

Real Time PCR 62-RTP200 - Key Features

  • Quantitative analysis with 0.1C display resolution
  • High sensitivity specificity with ±0.1C temperature accuracy
  • Integrated software supporting Windows systems
  • Versatile applications for 96 wells × 0.1 ml sample block
  • Cycling fast heating rate of 6C/sec and cooling rate of 5C/sec

Real Time PCR 62-RTP200 - Applications

FunctionImplementation
Clinical diagnostics labs96 wells × 0.1 ml enables high-throughput sample processing
Quality control facilities≤±0.2℃ temperature uniformity ensures assay consistency
Research laboratories6℃/sec max heating rate supports rapid thermal cycling
Industrial testing environments50 to 80 nm fluorescence detection range allows multiplex analysis
Pharmaceutical R&D unitsReaction volume of 10 to 50 µl accommodates varied protocols

Real Time PCR 62-RTP200 - Catalog

Real Time PCR 62-RTP200 Catalog
