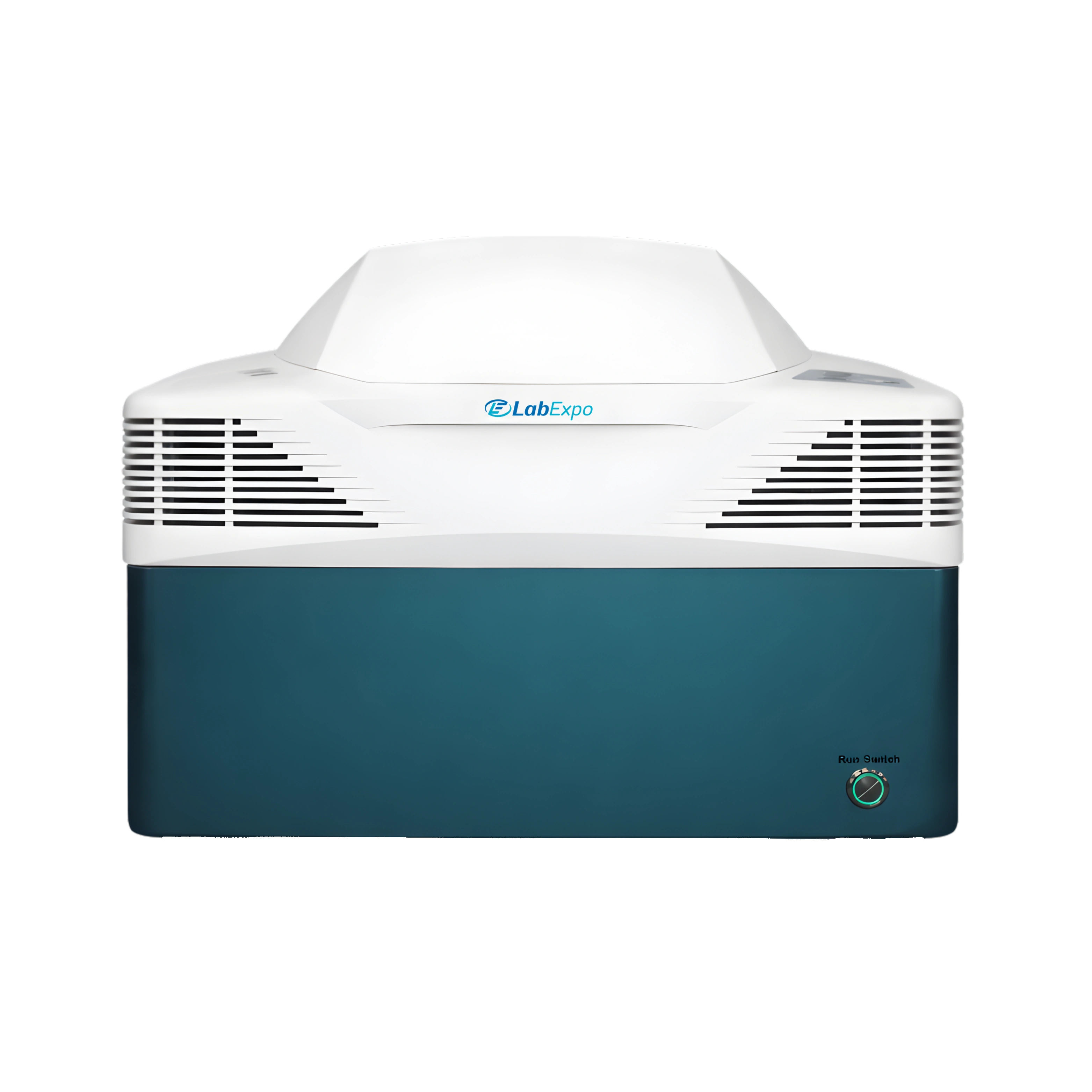

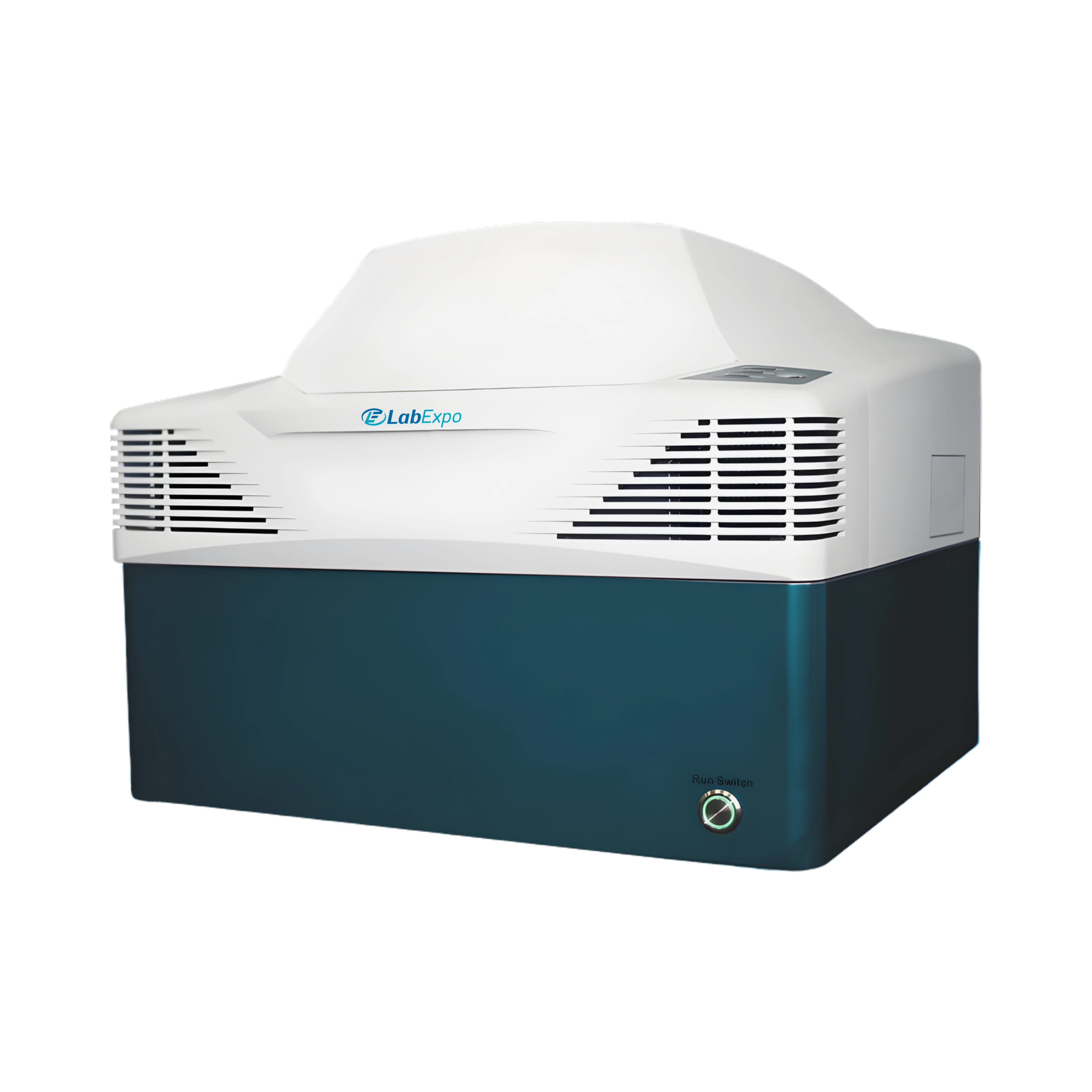

Lab Expo Real-Time PCR 62-RTP203 comes with 96 well capacity PCR machine with, 1 to 36°C gradient temperature range, and fast speed dual colour scanning mode. Its wide fluorescence wavelength range with innovative 8 channel design, optimizes thermal performance and maximizes convenience during operation. With its unique block dissipation technology, it provides precise temperature control and thermal gradient which easily optimizes PCR assays.
$20,484.00 $ 17070
| Sample Capacity | 96-Well PCR plate12 × 8-strip 96 × 0.2 ml(Bottom Transparent) |
| Emission Wavelength | 500 to 800 nm |
| Excitation Wavelength | 300 to 800 nm |
| Sample Volume Range | 5 to 100μl |
| Program | Max 20 Segments for Each Program, Max 99 Cycles |
| Dynamics Range | 10 to 1010 Copies |
| Max. channels number of fluorescence detection | 8 channels |
| Detected Fluorescence | F1 : FAM, SYBR Green IF2 : VIC, HEX, TET, JOEF3 : CY3,NED,TAMRAF4 : ROX, TEXAS-REDF5 : Cy5F6 : Light cycler redF7,F8 for Customized |
| Block Temp. Range | 4 to 105℃ (Minimum Increment: 0.1℃), SOAK Low Temp. Conservation Function |
| Temp. Control Accuracy | ≤ ± 0.1 ℃ |
| Temp. Fluctuation | ≤ ± 0.1 ℃ |
| Temp. Uniformity | ≤ ± 0.3 ℃ |
| Ramping Rate | 4.0 ℃/sec |
| Temp. Control Mode | BLOCK/Tube Simulation Mode (Automatic Control based On Sample Volume ) |
| Gradient Temp. Range | 1 to 36℃ |
| Hot-lid Temp. Range | 30 to 110℃ (Adjustable, default 105℃, Automatic Hot-lid ) |
| Fluorescence DetectionRepeatability | 0.05 |
| Operation Mode | Continuous |
| Scan Mode | Entire Plate or Designated Line |
| Scan Period | 5.5 sec |
| Operation System | Microsoft: Windows2000/XP/vista/Windows7Software: Excel2003/2007 Access: 2003/2007 |
| PC Configuration | Memory : 512 M; Hard Disk : 10 GB; CPU : Pentium® 4; Virtual Memory : ≥ 1000 MB |
| Power Supply | 100 to 240 V, 50/60 Hz, 600 W |
| Dimension ( L × W × H ) | 430 x 395 x 352 mm |
| Socket | RS 232C Adapter |
Function Implementation Quality control labs 10 to 10^10 Copies dynamic range enables precise quantification across wide concentration spectra Clinical diagnostics ≤ ± 0.1 ℃ temperature control accuracy supports reproducible assay results Research laboratories 8 channels fluorescence detection allows multiplexed target analysis in single runs Industrial testing Sample Volume Range: 5 to 100μl accommodates diverse reagent protocols across workflows Institutional facilities Max 99 Cycles program capability facilitates extended amplification protocols for complex targets
Lab Expo Real-Time PCR System enables accurate nucleic acid amplification and quantification with uniform thermal control and sensitive fluorescence detection. Designed for real time pcr workflows, it supports gradient temperature settings, multi-dye compatibility, and transparent well plates for precise signal capture. Integrated LED optics and intuitive software allow precise monitoring, data analysis, and reproducible results in research and diagnostic molecular biology applications.
