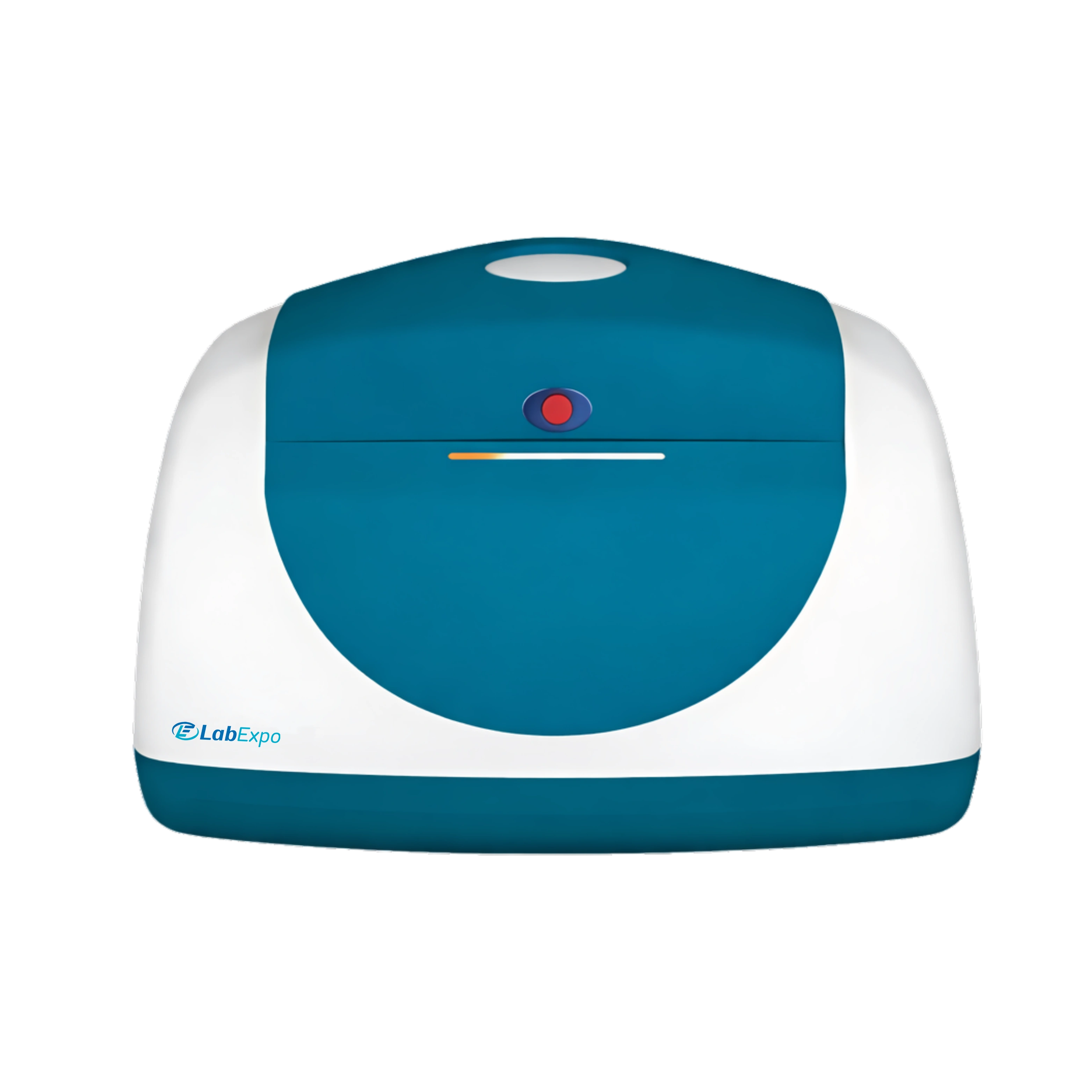

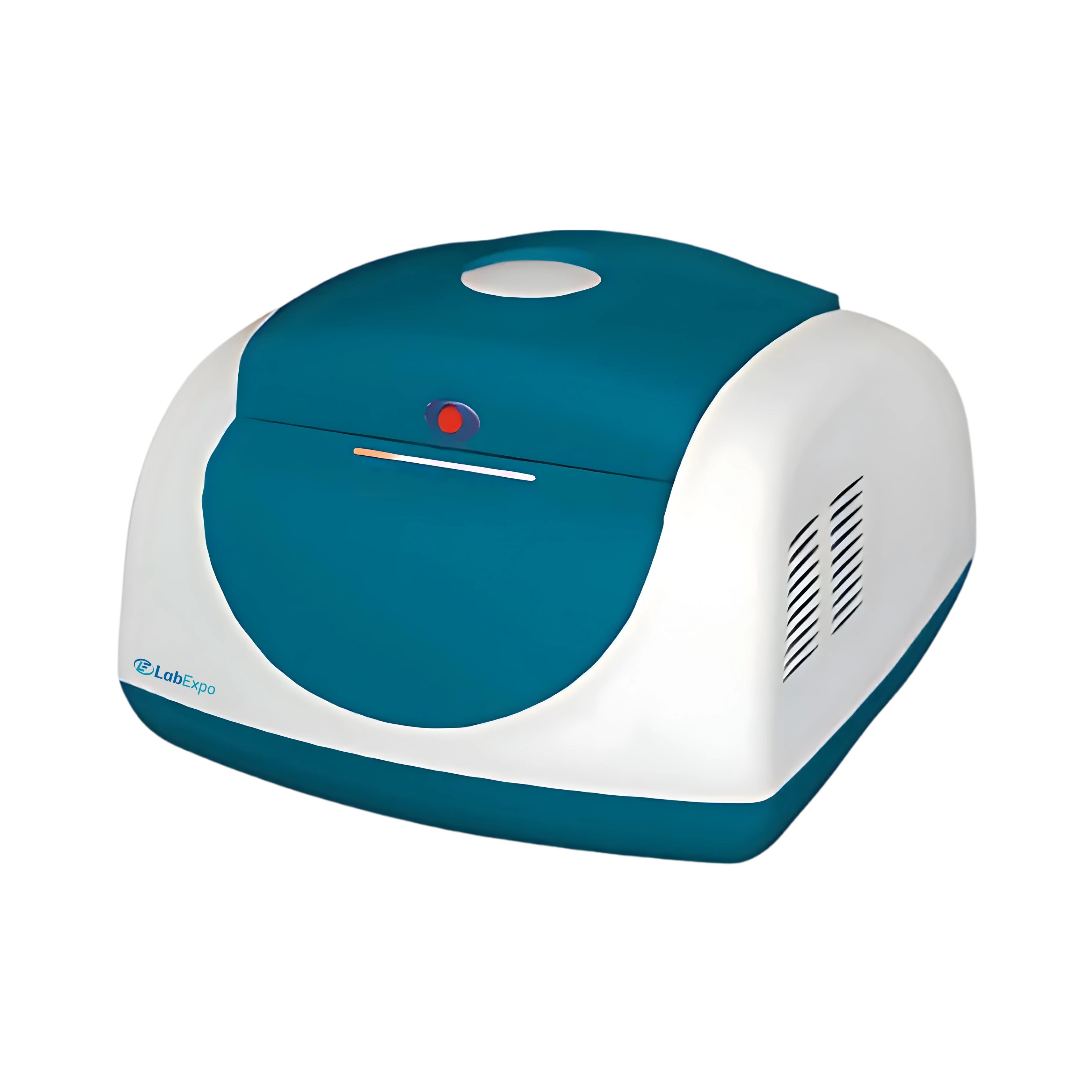

Real-Time PCR 62-RTP300

Lab Expo Real-Time PCR 62-RTP300 comes with 48 well capacity, durable, energy efficient design and advanced Ferrotec peltier and fibre optic technology. Equipped with advanced multi point temperature control module maintains thermal uniformity. It creates temperature gradient across the sample block. With ability to handle one, two, three, four combinations of excitation and emission wavelengths this PCR finds applications across many fields

$17,280.00 $ 14400

Real-Time PCR 62-RTP300 - Specifications

Sample Capacity 48 × 0.2 ml
Emission Wavelength Standard channels: F1 : 525 nmF2 : 564 nm F3 : 584 nm F4 : 612 nm
Excitation Wavelength Standard channels: F1 : 470 nmF2 : 523 nm F3 : 543 nm F4 : 571 nm
Sample Volume Range 10 to 100μL
Dynamics Range 10 to 1010 Copies
Max. channels number of fluorescence detection 4 channels
Detected Fluorescence F1：FAM,SYBR Green I;F2： HEX,VIC F3：TAMRA,JOE,Cy3 F4：TEX RED,ROX
Block Temp. Range 4 to 99.9℃
Temp. Control Accuracy ≥ 4.0 ℃/sec
Temp. Uniformity ≤ ± 0.3 ℃
Ramping Rate 4.0 ℃/sec
Gradient Temp. Range 1 to 24 ℃
Hot-lid Temp. Range 80℃ to 110℃
Operation System Windows 2000/XP
Power Supply 100 to 240 V, 50/60 Hz, 650 W
Dimension ( L × W × H ) 520 x 450 x 320 mm
Weight 25 kg (Without computer)

Real-Time PCR 62-RTP300 - Key Features

  • Four-channel fluorescence detection system with 470 to 571 nm excitation range
  • Non-volatile memory preserving run data during unexpected power interruptions
  • Electric heated lid maintaining 80-110℃ range to prevent evaporation
  • Programmable thermal gradient spanning 1 to 24℃ across sample block
  • USB and RS232 interfaces enabling bidirectional data transfer at standard rates

Real-Time PCR 62-RTP300 - Applications

FunctionImplementation
Clinical diagnostics labs48 × 0.2 ml supports high-throughput sample processing
Quality control facilities10 to 1010 Copies enables sensitive detection limits
Research laboratoriesGradient Temp. Range: 1 to 24 ℃ allows optimization protocols
Industrial testing sitesBlock Temp. Range: 4 to 99.9℃ accommodates diverse assays
Pharmaceutical developmentTemp. Uniformity: ≤ ± 0.3 ℃ ensures reproducible results

Real-Time PCR 62-RTP300 - Catalog

Real-Time PCR 62-RTP300 Catalog

Related Real Time PCR

Lab Expo Real-Time PCR System enables accurate nucleic acid amplification and quantification with uniform thermal control and sensitive fluorescence detection. Designed for real time pcr workflows, it supports gradient temperature settings, multi-dye compatibility, and transparent well plates for precise signal capture. Integrated LED optics and intuitive software allow precise monitoring, data analysis, and reproducible results in research and diagnostic molecular biology applications.
