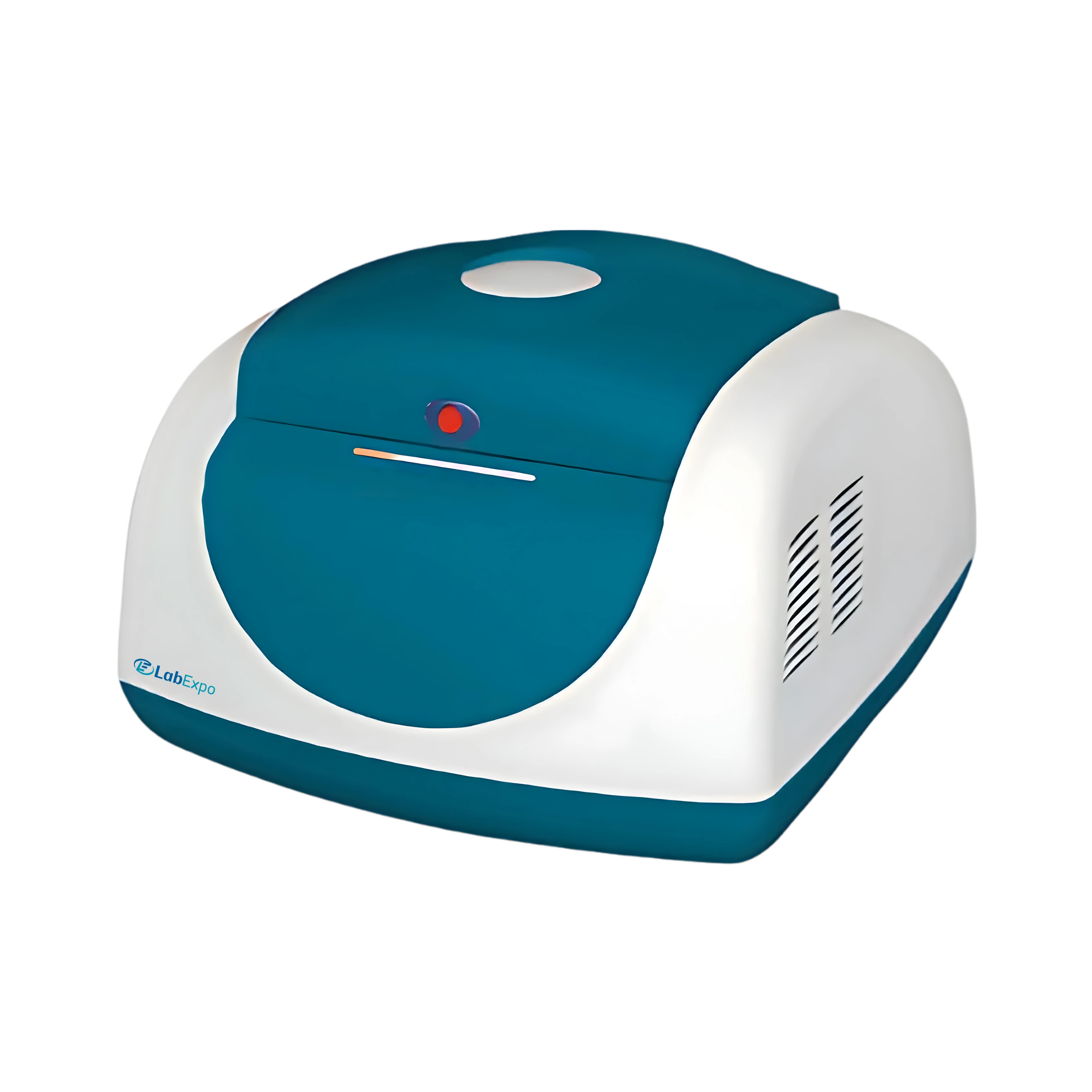

Real-Time PCR 62-RTP301

Lab Expo Real-Time PCR 62-RTP301 comes with 48 well capacity, durable, energy efficient design and advanced Ferrotec peltier and fibre optic technology. Equipped with advanced multi point temperature control module maintains thermal uniformity. It creates temperature gradient across the sample block. With ability to handle one, two, three, four combinations of excitation and emission wavelengths this PCR finds applications across many fields

$18,000.00 $ 15000

Real-Time PCR 62-RTP301 - Specifications

Sample Capacity 48 × 0.2 ml
Emission Wavelength F1 : 525 nm F2 : 564 nm
Excitation Wavelength F1 : 470 nm F2 : 523 nm
Sample Volume Range 10 to 100μL
Dynamics Range 10 to 1010 Copies
Max. channels number of fluorescence detection 2 channels
Detected Fluorescence F1：FAM,SYBR Green I;F2： HEX VIC
Block Temp. Range 4 to 99.9℃
Temp. Control Accuracy ≥ 4.0 ℃/sec
Temp. Uniformity ≤ ± 0.3 ℃
Ramping Rate 4.0 ℃/sec
Gradient Temp. Range 1 to 24 ℃
Hot-lid Temp. Range 80℃ to 110℃
Operation System Windows 2000/XP
Power Supply 100 to 240 V, 50/60 Hz, 650 W
Dimension ( L × W × H ) 520 x 450 x 320 mm
Weight 25 kg (Without computer)

Real-Time PCR 62-RTP301 - Key Features

  • Data storage during accidental power cut off maintains integrity
  • Automatic amplitude adjustment ensures consistent excitation levels
  • Overheat protection with alarm warning prevents thermal damage
  • Electric heat preservation cover maintains block temperature stability
  • Temperature gradient control up to 24C enables differential testing

Real-Time PCR 62-RTP301 - Applications

FunctionImplementation
Clinical diagnostics10 to 10^10 copies enables precise pathogen quantification
Research laboratories48 × 0.2 ml supports high-throughput sample processing
Quality control labs≤ ± 0.3 ℃ ensures consistent thermal uniformity
Industrial testingGradient temp. range: 1 to 24 ℃ allows comparative assay optimization
Pharmaceutical analysisFAM/SYBR Green I and HEX/VIC detection enables multiplex target identification

Real-Time PCR 62-RTP301 - Catalog

Real-Time PCR 62-RTP301 Catalog
