Real-Time PCR 62-RTP400
Product2
Product3

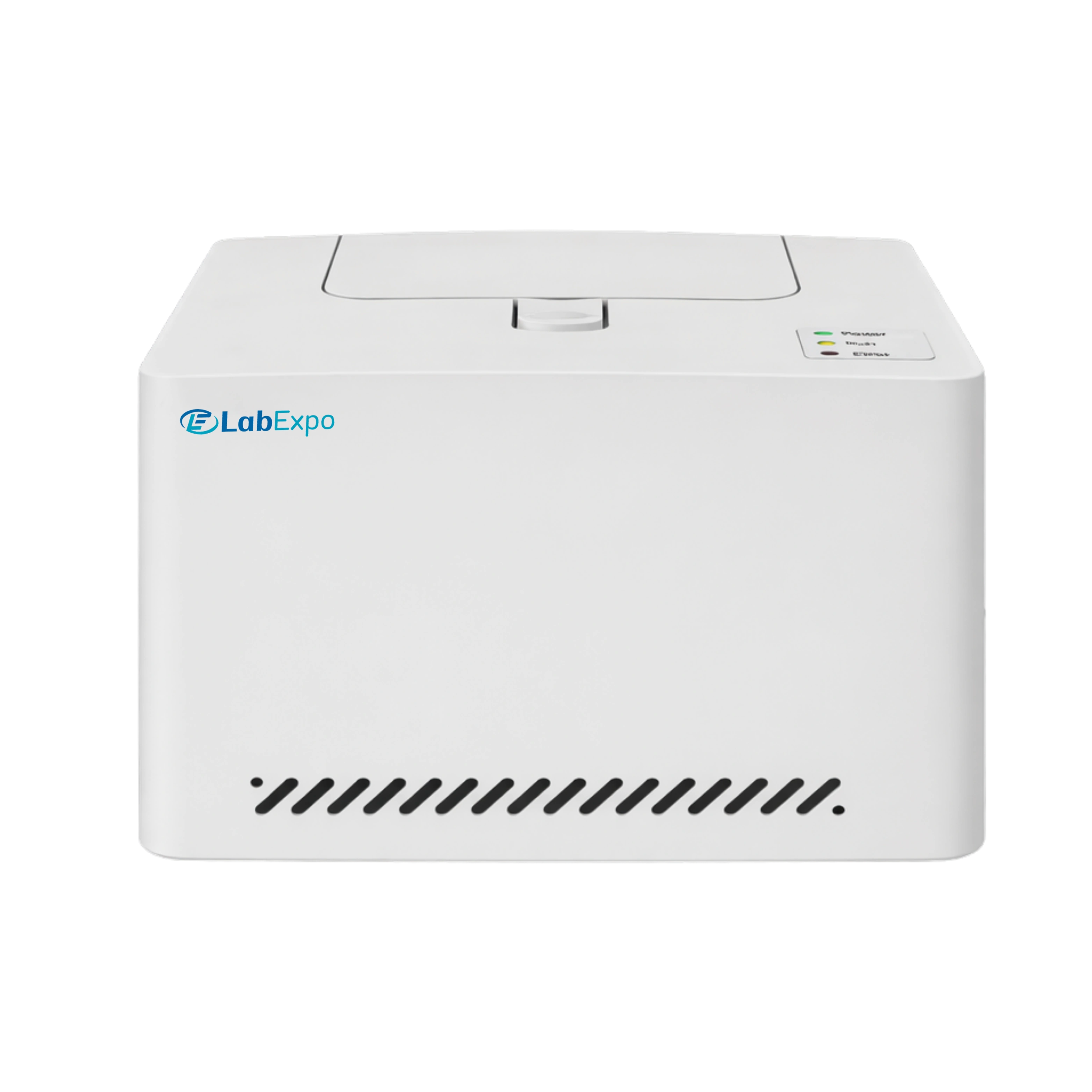

Real-Time PCR 62-RTP400

Lab Expo Real Time PCR 62-RTP400 operates at temperatures ranging from 0 to 100°C and has a sample capacity of 8 wells, each with a volume of 0.2 ml. It features an emission wavelength range of 500 to 800 nm with a dynamic range of 1 to 1010 copies ensuring high-quality results. Our PCR is equipped with side scan technology which enhances the precision of detecting and measuring fluorescent signals for more accurate analysis.

$18,576.00 $ 15480

Real-Time PCR 62-RTP400 - Specifications

Sample Capacity 8×0.2ml（8 well)
Consumable Clear 0.2 ml PCR tube /8-tube strips
Reaction Volume 15 to 100μl
Temperature Control Technology Marlow customized Peltier allow 1.000.000 cycles
Temperature Range 0 to 100℃
Temperature Resolution 0.1℃
Temperature Fluctuation ≤±0.1℃
Temperature Uniformity ≤±0.25℃
Temperature Accuracy ≤±0.25℃
Hot Lid Temperature 30 to 110℃ (Adjustable, default 105℃)
Temperature Control Block/Tube
Excitation Wavelength 300 to 800nm
Emission Wavelength 500 to 800nm
Factory Calibrated Dyes F1: FAM/SYBR Green I
F2: HEX/VIC/JOE/TET
F3: ROX
F4: CY5
Max. Ramp Rate 7℃/s
Detection High-sensitivity photoelectric detector
Dynamic Range 1 to 10¹⁰ copies
Sensitivity 1 copy
Feature Function Quantitative/qualitative, melting curve, genotyping
Date Export Formats Excel CVS, txt
Communication Interface WIFI/USB2.0
Power Consumption DC15V 225W
Power Supply 220VAC,50HZ
Dimension (L×W×H) 195×165×140 mm
Weight 3kg

Real-Time PCR 62-RTP400 - Key Features

  • High-sensitivity photoelectric detector with 1 copy sensitivity
  • Black reaction block minimizing background noise at 0.25C uniformity
  • Enhanced protection functions with Peltier technology rated for 1M cycles
  • Forward and backward air vent design maintaining ±0.1C fluctuation

Real-Time PCR 62-RTP400 - Applications

FunctionImplementation
Clinical diagnostics labs1 to 10¹⁰ copies dynamic range supports accurate pathogen quantification
Research laboratories≤±0.25℃ temperature uniformity ensures consistent amplification across samples
Quality control facilities7℃/s max ramp rate enables rapid thermal cycling for high-throughput testing
Industrial testing environmentsDC15V 225W power consumption allows stable operation under continuous use
Academic research settingsExcel CSV and txt export formats facilitate seamless data integration with analysis tools

Real-Time PCR 62-RTP400 - Catalog

Real-Time PCR 62-RTP400 Catalog

Related Real Time PCR

Lab Expo Real-Time PCR System enables accurate nucleic acid amplification and quantification with uniform thermal control and sensitive fluorescence detection. Designed for real time pcr workflows, it supports gradient temperature settings, multi-dye compatibility, and transparent well plates for precise signal capture. Integrated LED optics and intuitive software allow precise monitoring, data analysis, and reproducible results in research and diagnostic molecular biology applications.
