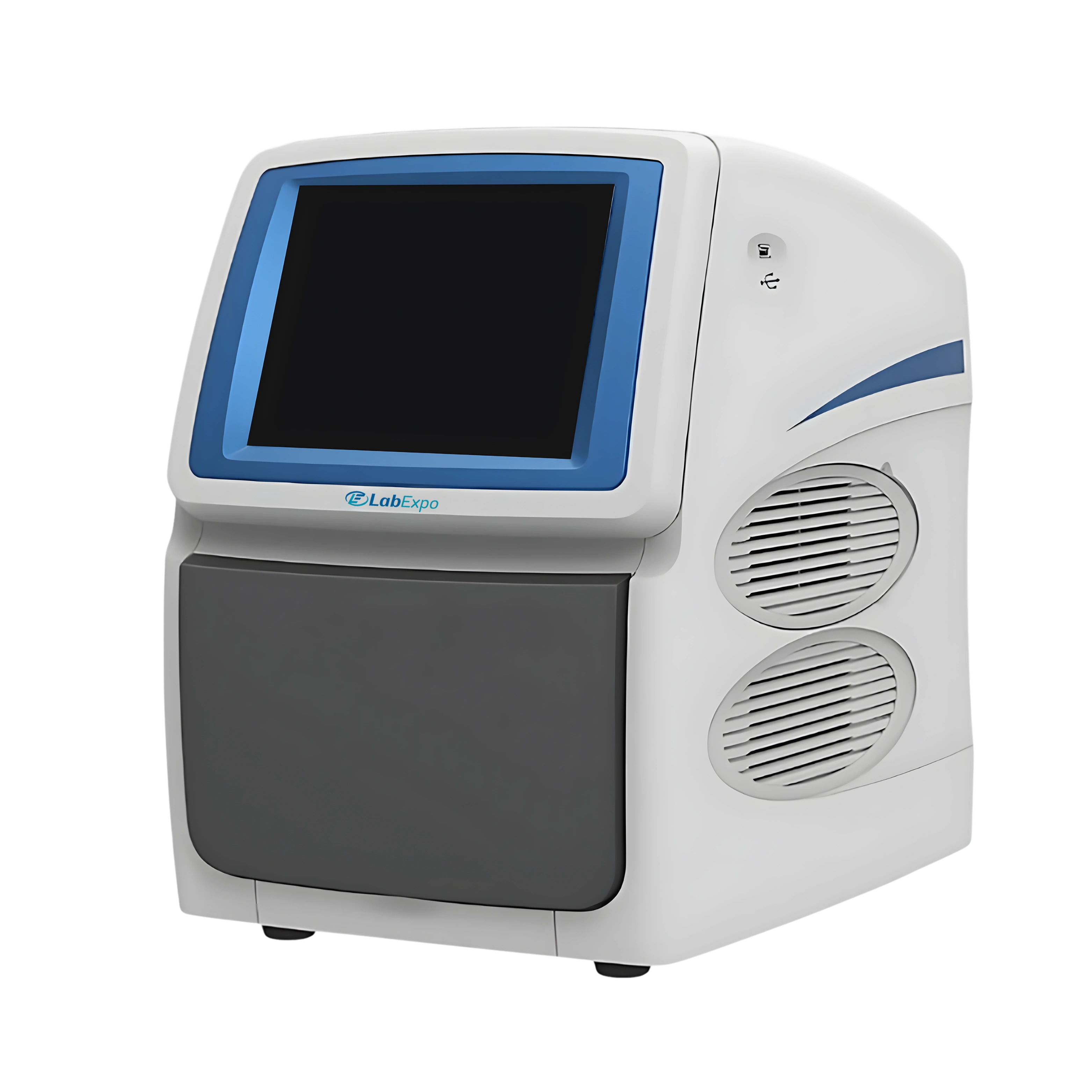

Real Time PCR LE-RT101

Lab Expo Real Time PCR LE-RT101 offers four independent fluorescence channels for detection of multiple targets in a single run. It supports flexible sample processing from a single reaction up to 96 wells. Built-in LED light to provide illumination during operation. Equipped with top-scanning photodiodes for high sensitivity and uniform signal detection. Our Real Time PCR delivers highly uniform temperature distribution across the block, ensuring consistent results.

$17,395.00 $ 14496

Real Time PCR LE-RT101 - Specifications

Throughput 1 to 96
Fluorescence Channels 4
Fluorescence Scanning Time 7 Seconds
Light Source LED Light Source
Detector Photodiodes, Top Scanning
Excitation Range CH1: 465nm,
CH2: 527nm,
CH3: 580nm,
CH4: 632nm
Detection Range CH1: 510nm,
CH2:563nm,
CH3:616nm,
CH4:664nm
Fluorescence Dynamic Range Adjustable
Sample Dynamic Range From 101 to 1010 copies
Heating Method Peltier
Max. Heating Rate >6.1° C/S
Max. Cooling Rate >5.0℃/S
Uniformity Of Thermo Control ±0.1℃
Accuracy Of Thermo Control ≤0.1℃
Gradient Interval Range 1℃ to 40℃
Gradient Block 12 Row
Special Temperature Protocol Thermal Gradients PCR, Long PCR, Touch Down PCR
Linear Correlation ≥ 0.999
Repeatability Cycle Threshold (Ct) Value CV≤0 0.5%
Control Modes Mode 1: 10.4-Inch Touch ScreenMode 2: PC Direct Control
Operating System For Pc Win 7, Win 10
Power Consumption AC 100 To 240V, 50 To 60 Hz
Power Supply 900 VA
Packing Dimension 67 × 58 × 58 cm
Gross Weight 38 kg

Real Time PCR LE-RT101 - Key Features

  • Power failure protection with automatic recovery
  • Software analysis with real-time amplification curves
  • Data storage and transmission via USB interface
  • Multiple control modes including touchscreen and PC direct control
  • Peltier-based heating and cooling system with 0.1C accuracy

Real Time PCR LE-RT101 - Applications

FunctionImplementation
Quality control labs≤0.1℃ accuracy ensures precise thermal cycling for reliable results
Clinical diagnostics4 fluorescence channels enable multiplex target detection in single runs
Research laboratoriesSample range from 10¹ to 10¹⁰ copies supports low-abundance nucleic acid analysis
Industrial testingGradient interval of 1℃ to 40℃ allows optimization across diverse amplicons
Institutional settingsFluorescence scanning time of 7 seconds accelerates data acquisition per cycle

Real Time PCR LE-RT101 - Standard Accessories

Power Cord- 1 piece

Network Cable- 1 piece

 USB Flash Disk- 1 piece

Fuse Tube- 2 pieces

Sponge Filter- 3 pieces
