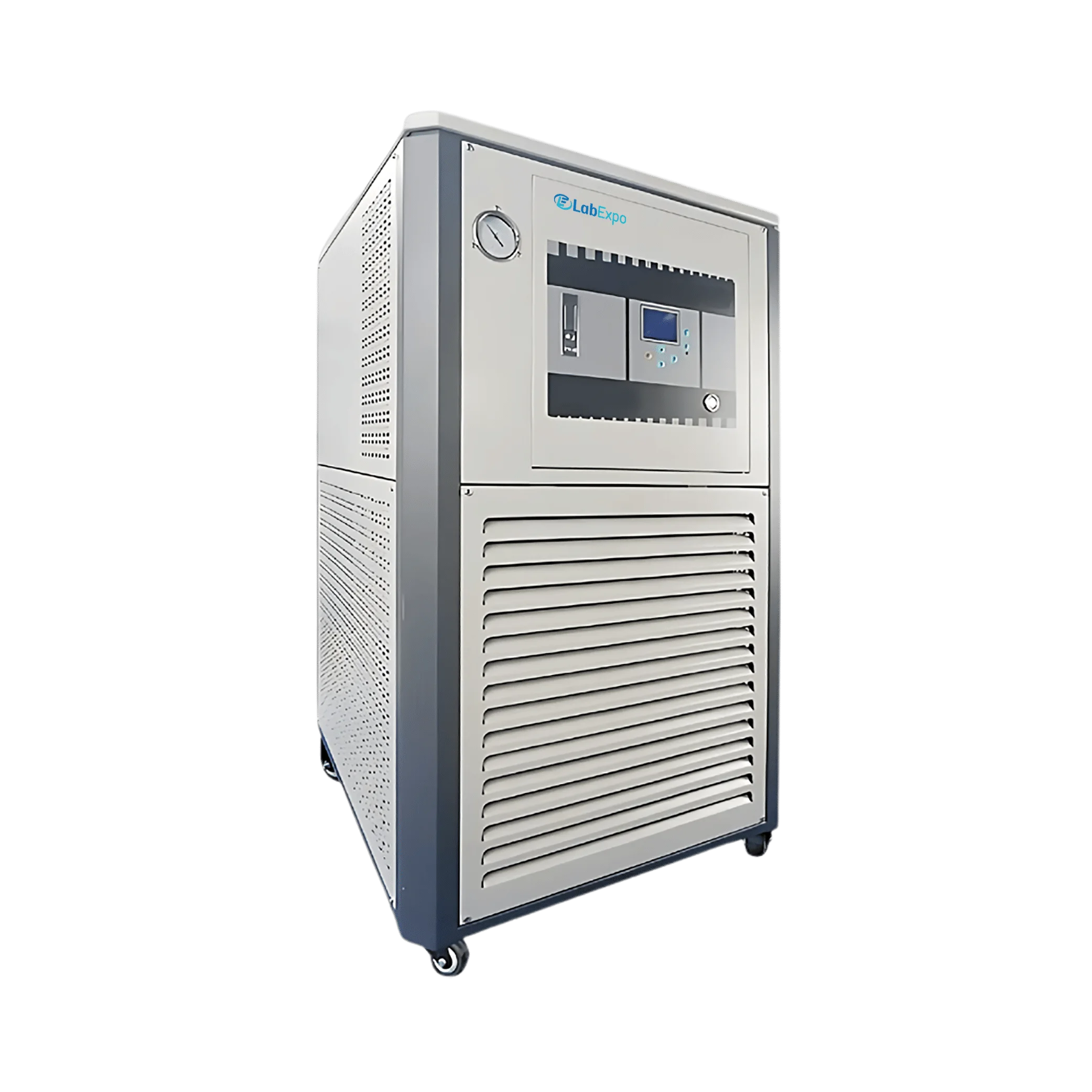

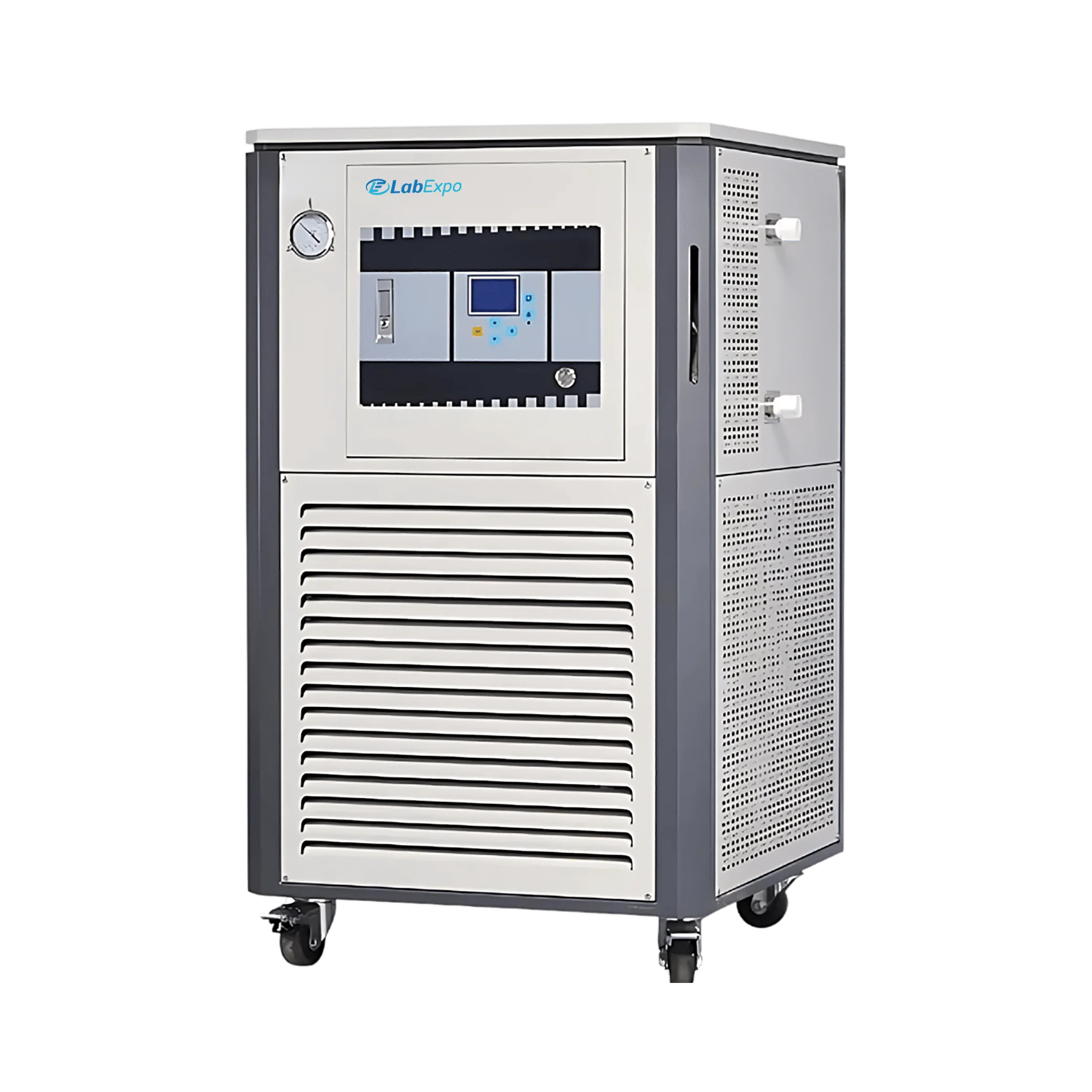

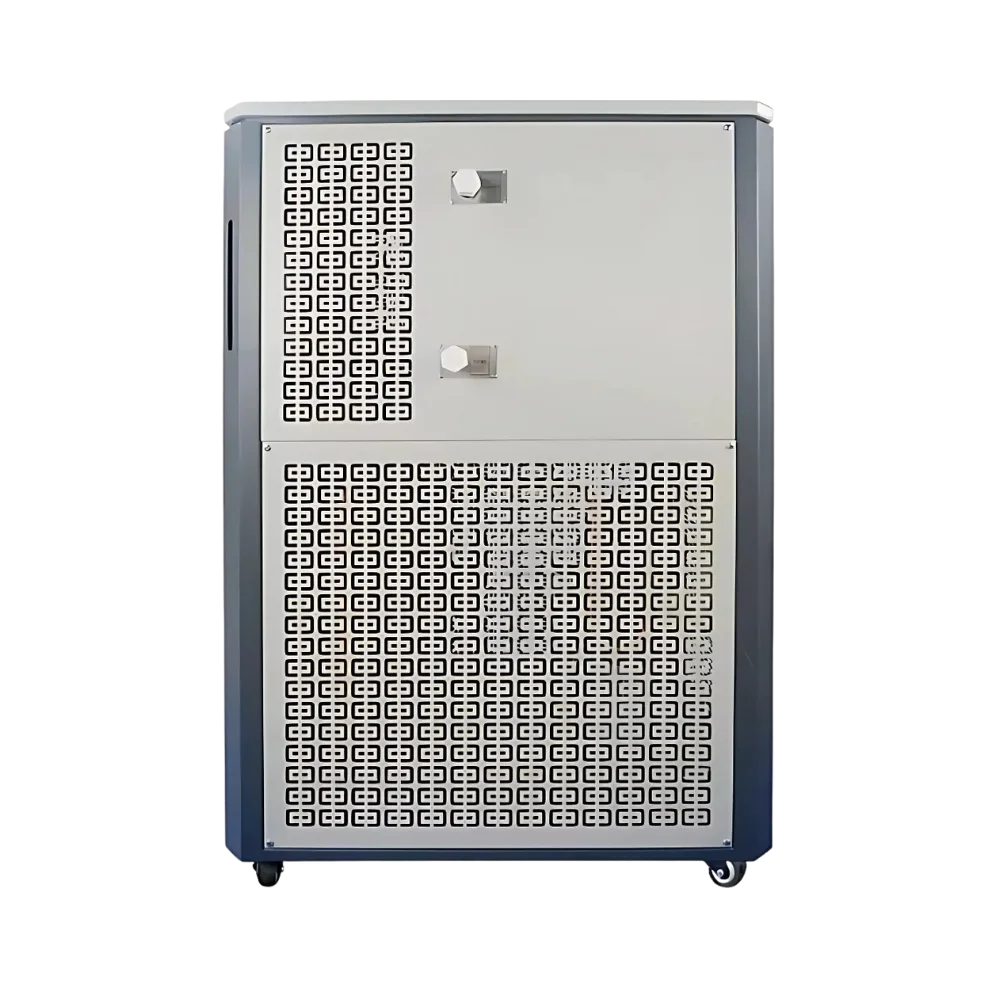

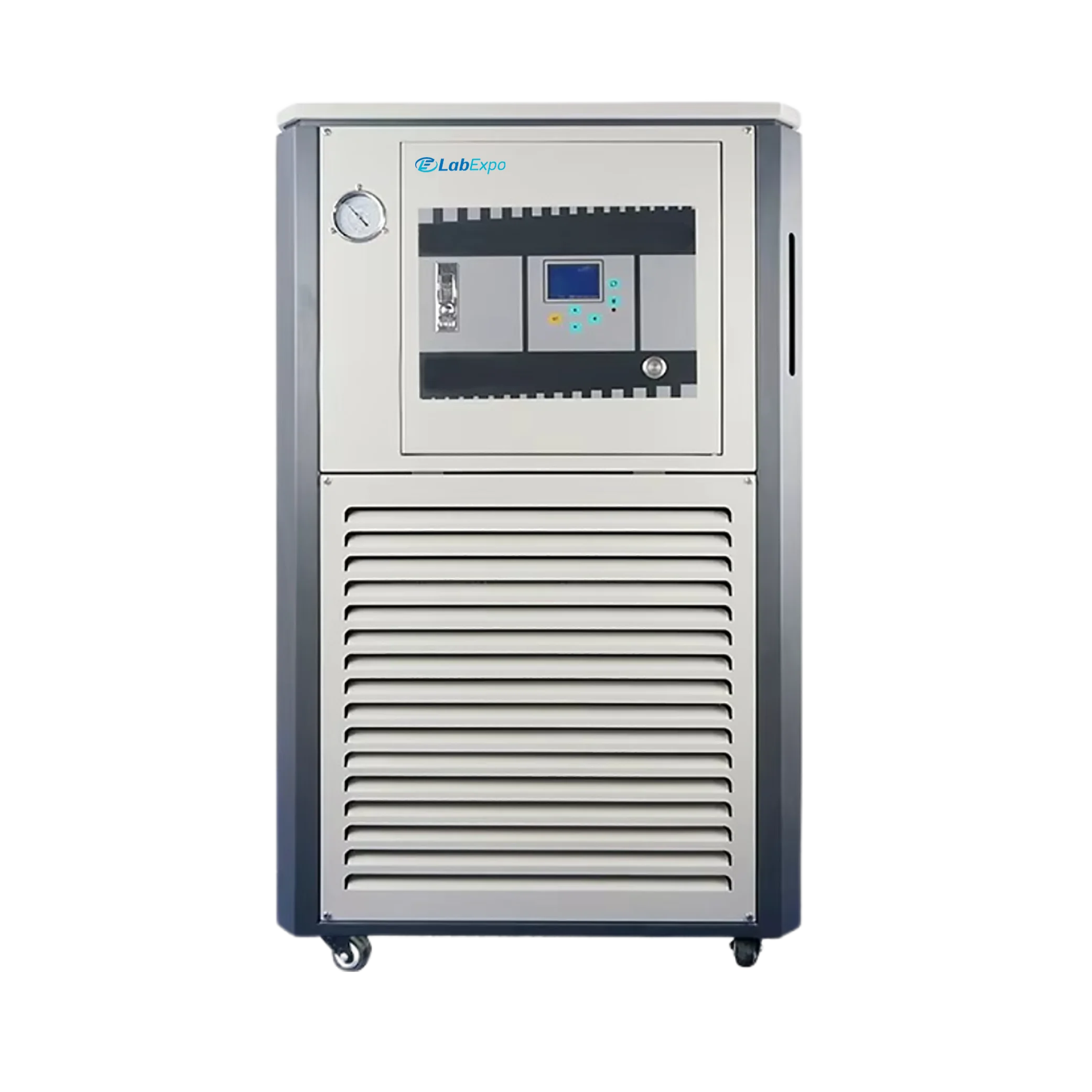

Recirculating Chiller LE-RCC102 provides a tank capacity of 50 liters. Equipped with PT100 sensor and R404A refrigerant system for stable cooling. Built-in safety mechanisms such as rotor axial fan cooling and efficient plate heat exchange system ensure reliable operation and equipment protection. Our Recirculating Chiller also supports RS485 interface for seamless integration.
$7,944.00 $ 6620
| Temperature Range | RT to 40℃ |
| Ambient Temperature | ≤30 ℃ |
| Optimum Ambient Humidity | 60% |
| Temperature Sensor | PT100 |
| Chiller Type | Air cooling |
| Phase Number | 3 |
| Cooling Capacity | RT: 12775 W0℃: 11275 W 40℃: 650 W |
| Compressor Brand | Ankong |
| Compressor Power | 4500 W |
| Refrigerant Type | R404A |
| Outer Circulation Nozzle Size | 20 DN |
| Opening Diameter | 320 mm |
| Tank Volume | 50 L |
| Circulating Pump Type | Shielding Pump |
| Pump Power | 280 W |
| Rated Lift | 12 M |
| Rated Flow | 35 L/min |
| Fan Type | External Rotor Axial Fan |
| Number of Fans | 1 |
| Control System | Siemens S7-200 Smart PLC |
| Programming | 5 Programs |
| Operation Panel | 7–inch Siemens Color Touch Screen |
| Data Output | USB (TXT Format Support) |
| Power Consumption | 5750 Watt |
| Power Supply | 220V, 50/60Hz |
| Dimension | 770 × 670 × 1180 |
| Net Weight | 220 Kg |
Function Implementation Analytical instrument cooling Defined cooling capacity maintains stable operating temperature Laser system regulation -40 C range supports temperature-sensitive equipment Chemical process control 35 L/min circulation sustains continuous heat removal Pharmaceutical temperature management PLC-controlled system regulates defined thermal conditions Biotechnology research support PT100 monitoring maintains precise cooling accuracy
Lab Expo Recirculating Chiller supports precision cooling workflows where continuous temperature stability and closed-loop circulation are required for sensitive instruments and processes. The system operates with high-efficiency heat exchange and digitally regulated temperature control to maintain accurate setpoints. Integrated safety functions, including overheat protection, low-level alarms, and automatic restart, ensure controlled operation, while durable build supports precise, long-term cooling performance for daily use.
