High Speed Refrigerated Centrifuge 02A-HRC104
Product1
Product2

High Speed Refrigerated Centrifuge 02A-HRC104

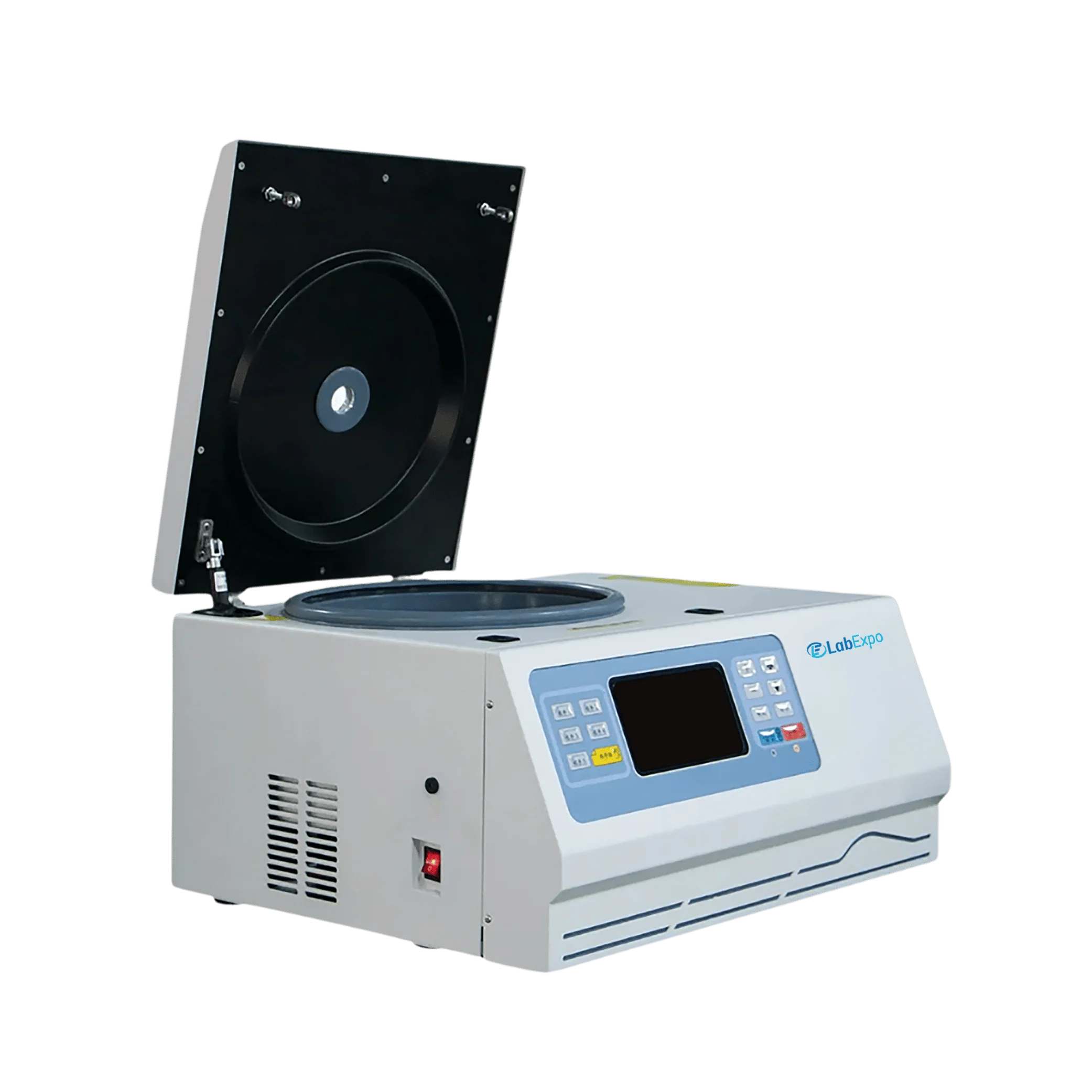

High Speed Refrigerated Centrifuge 02A-HRC104 is designed with a maximum speed of 16,500 RPM, enabling rapid separation of samples. It offers a temperature range of -20℃ to 40℃, ensuring precise thermal control and suitability for temperature-sensitive applications. Its advanced noise reduction system ensures a quiet, efficient performance. Our centrifuge features a vibrant HD LCD, allowing real-time monitoring and parameter adjustments during operation.

$23,357.00 $ 19464

High Speed Refrigerated Centrifuge 02A-HRC104 - Specifications

Max Speed 16500 rpm
Temp Range -20℃ to 40℃
Max RCF 26145 × g
Max Capacity 6× 50 ml
Temp Accuracy ±1.0℃
Timer 1 s to 99 h 59 min 59 s
Revolutions/min ±10 r/min
Noise Level ≤ 60 dB (A)
Rotor Automatic Identification Yes
Voltage AC 220 ± 22 V, 50 Hz, 10 A
Power 800W
Dimension (W × D × H) 610 × 560 × 370 mm
Weight 73 kg

High Speed Refrigerated Centrifuge 02A-HRC104 - Key Features

  • Maximum speed 16500 rpm generating up to 26145 x g centrifugal force
  • Temperature control range -20 C to 40 C with plus or minus 1 C accuracy
  • Capacity for 6 x 50 ml tubes
  • Programmable timer from 1 s to 99 h 59 min 59 s with dual timing modes
  • Microcomputer control with customizable program groups and rotor automatic identification

High Speed Refrigerated Centrifuge 02A-HRC104 - Applications

FunctionImplementation
High-force biological separationEfficient sedimentation of cells, proteins and particulates
Temperature-controlled centrifugationProcessing of heat-sensitive laboratory samples
Medium-throughput laboratory workflowsSix-tube configuration supporting routine batch runs
Clinical and research useRobust refrigerated fractionation for diagnostics and analysis

High Speed Refrigerated Centrifuge 02A-HRC104 - Rotor Selection

Type

Capacity (ml)

Max Speed (rpm)

Max RCF (×g)

Angle Rotor 01

24×1.5/2.0ml

16500rpm

26145×g

Angle Rotor 02

12×5ml

16000rpm

17344×g

Angle Rotor 03

32×1.5/2.0ml

14000rpm

19940×g

Angle Rotor 04

8×8×0.2ml PCR Row

14000rpm

15032×g

Angle Rotor 05

6×30ml (Round bottom)

13500rpm

17482×g

Angle Rotor 06

12×10ml

13000rpm

15228×g

Angle Rotor 07

48×1.5/2.0ml

13000rpm

18327×g

Angle Rotor 08

6×50ml (Round bottom)

12000rpm

14610×g

High Speed Refrigerated Centrifuge 02A-HRC104 - Catalog

High Speed Refrigerated Centrifuge 02A-HRC104 Catalog

Related Refrigerated Centrifuge

Lab Expo Refrigerated Centrifuge supports temperature-controlled separation workflows where high-speed centrifugation and active cooling are required to protect sample integrity. This cooling centrifuge operates with microprocessor-regulated speed and refrigeration to maintain defined temperatures during runs. Digital displays manage speed, time, and RCF, while electronic lid locking and protections against overspeed, overheating, and imbalance ensure controlled, repeatable centrifugation for demanding laboratory operations.
