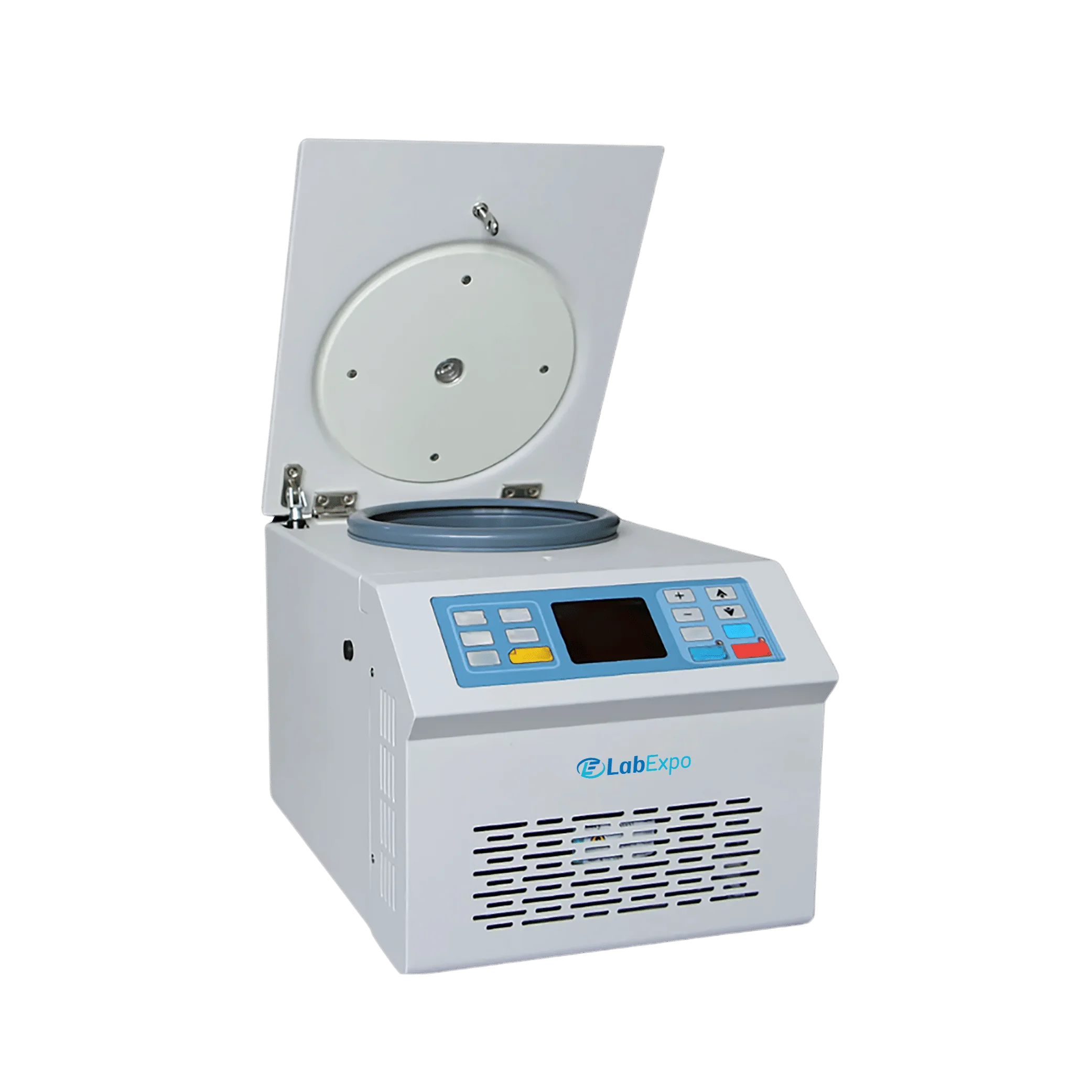

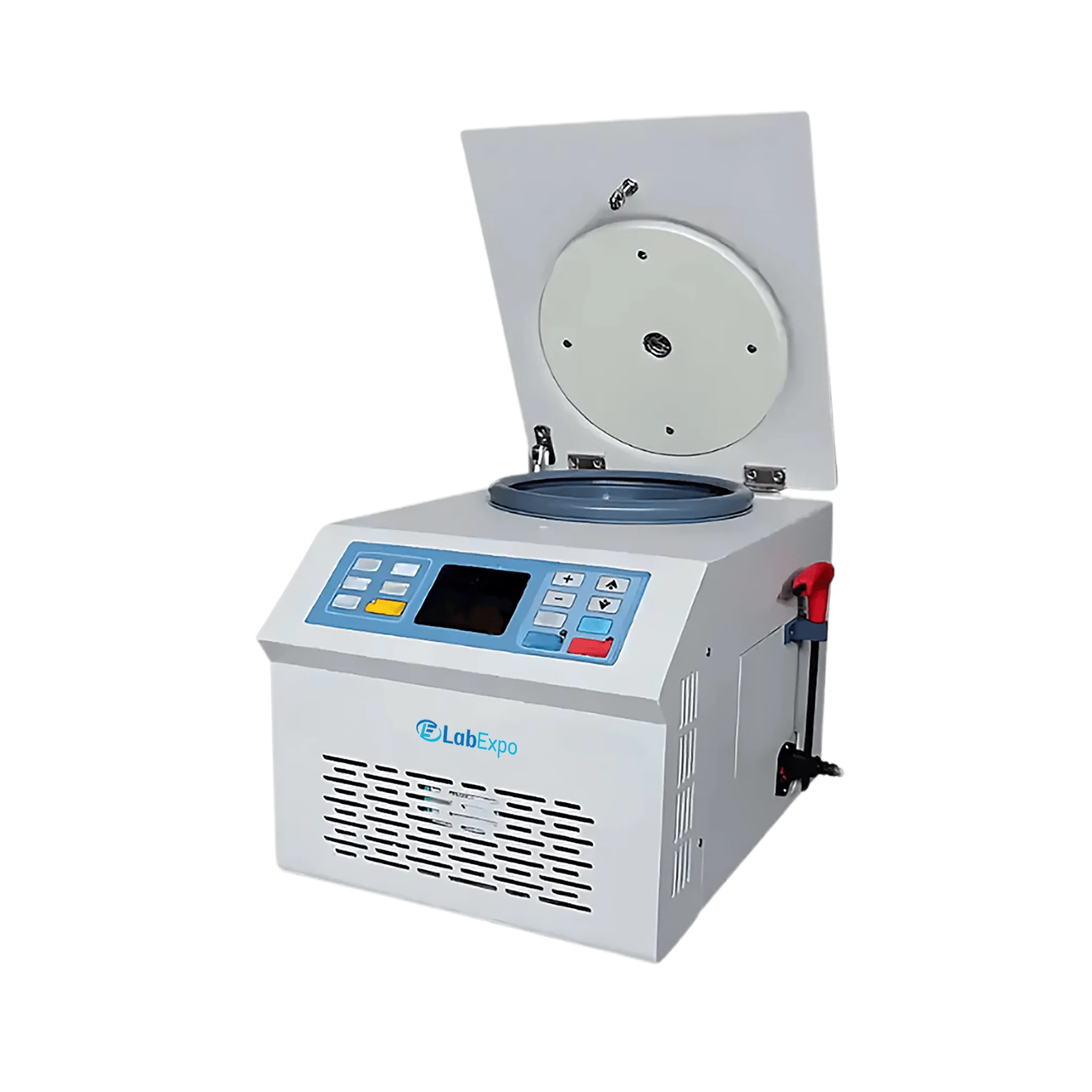

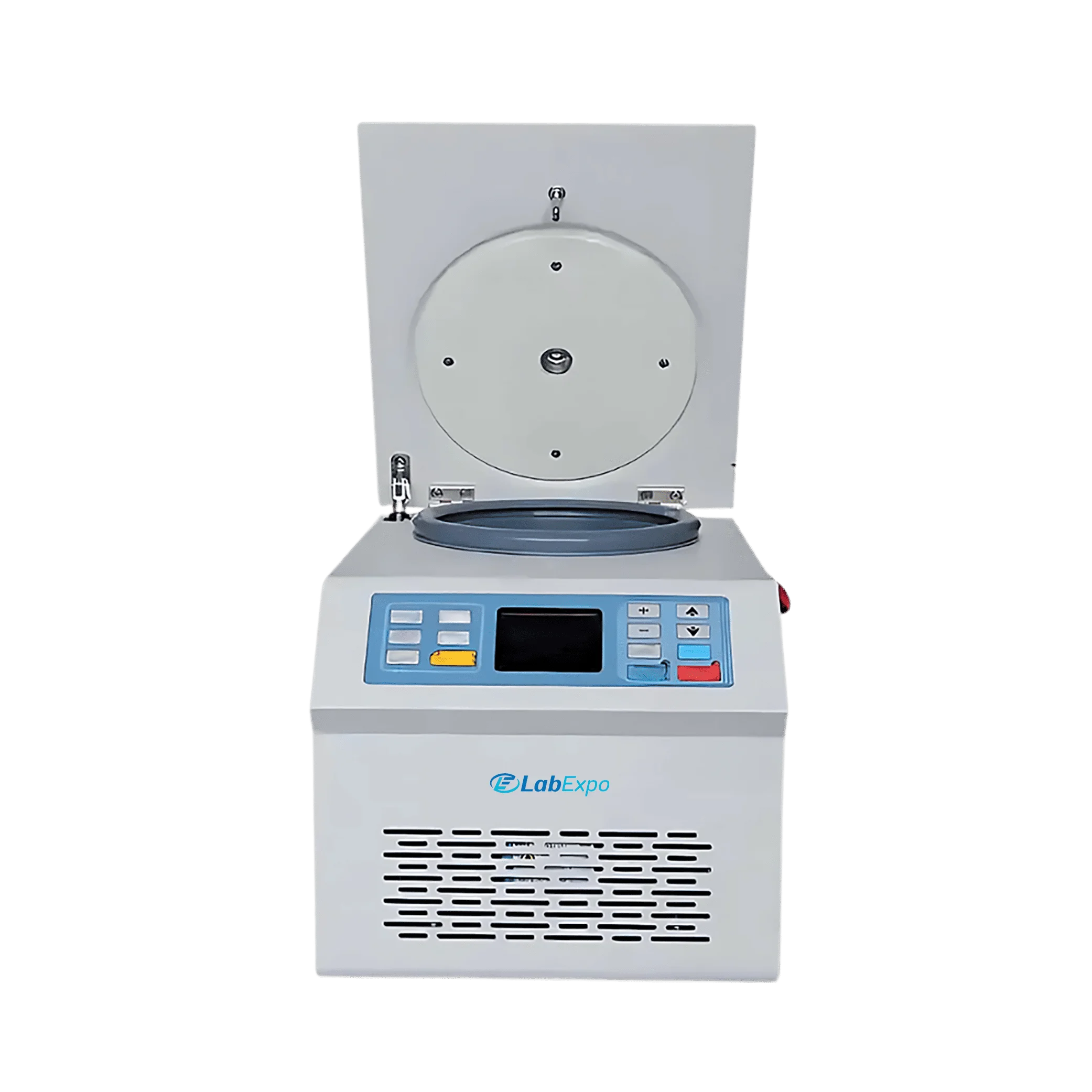

High Speed Refrigerated Centrifuge 02A-HRC111 is designed with a maximum speed of 16,500 rpm and provides fast and efficient sample processing. Its temperature range of -20℃ to 40℃ ensures precise control for various applications. It features dual timing modes, offering flexibility with start timing or arrival revolution timing options for precise operation. Our centrifuge is driven by an AC frequency conversion brushless motor, enabling reliable performance.
$24,293.00 $ 20244
| Max Speed | 16500 rpm |
| Temp Range | -20℃ to 40℃ |
| Max RCF | 21615 × g |
| Max Capacity | 12× 5 ml |
| Temp Accuracy | ±1.0℃ |
| Timer | 1 s to 99 h 59 min 59 s |
| Revolutions/min | ±10 r/min |
| Noise Level | ≤ 60dB (A) |
| Rotor Automatic Identification | No |
| Voltage | AC 220 ± 22 V, 50 Hz, 10 A |
| Power | 550W |
| Dimension (W × D × H) | 315 × 475 × 310 mm |
| Weight | 38 kg |
Function Implementation High-force micro separation Rapid sedimentation of small-volume biological samples Temperature-controlled centrifugation Processing of heat-sensitive laboratory materials Parallel microtube processing Twelve-tube configuration supporting batch workflows Clinical and research use Robust refrigerated fractionation for analytical applications
Rotor Name | Capacity | Max Speed (rpm) | Max RCF (×g) |
Angle rotor 01 | 16×1.5/2.0ml | 16500rpm | 20880×g |
Angle rotor 02 | 12×5ml | 16000 rpm | 17344 ×g |
Angle rotor 03 | 24×1.5/2.0ml | 15000rpm | 21615×g |
Angle rotor 04 | 4×8×0.2ml PCR Row | 15000rpm | 14866×g |
Angle rotor 05 | 8×8×0.2ml PCR Row | 14000rpm | 15032×g |
Angle rotor 06 | Capillary rotor 24-hole | 12000rpm | 13845×g |
Lab Expo Refrigerated Centrifuge supports temperature-controlled separation workflows where high-speed centrifugation and active cooling are required to protect sample integrity. This cooling centrifuge operates with microprocessor-regulated speed and refrigeration to maintain defined temperatures during runs. Digital displays manage speed, time, and RCF, while electronic lid locking and protections against overspeed, overheating, and imbalance ensure controlled, repeatable centrifugation for demanding laboratory operations.
