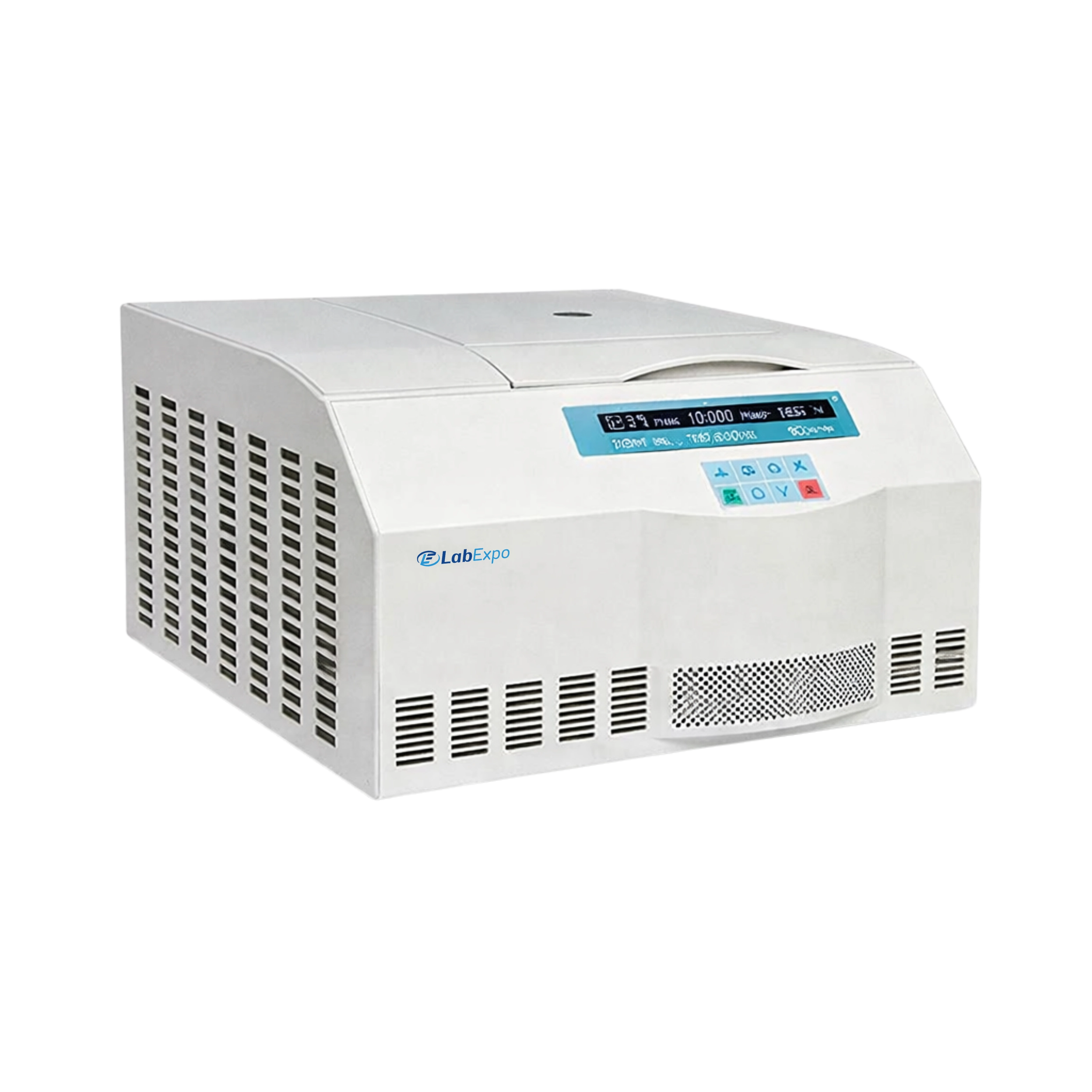

Refrigerated Centrifuge 02A-HRC101 is a microprocessor controlled floor standing refrigerated centrifuge having 5000 rpm speed. It is safe, reliable, low maintenance and easy-to-use instrument equipped with LCD display and low noise flexible axle driven rotor system. With auto electric locking system fluorine free compressors and 3 tier protective steel covering, it is ideal for blood separation, protein precipitation etc. and can be used at blood station and pharmaceutical industry for variety of applications.
$5,486.00
$4,572.00
Specifications
| Max. Speed | 5000 rpm |
| Max. RCF | 4730 x g |
| Max. Capacity | 4 x 300 ml |
| Temp. Range | (-20) °C to 40 °C |
| Temp. Accuracy | ± 1 ℃ |
| Speed Accuracy | ± 50 rpm |
| Timer Range | 0 to 99 hr. 59 min |
| Noise | ≤ 65 dB |
| Rotor Identification | Automatic |
| Power Supply | AC 220 V / 50 Hz / 15 A |
| Dimension (H x W x D) | 640 x 665 x 420 mm |
| Packaged Dimension (H x W x D) | 820 x 735 x 535 mm |
| Net Weight | 118 kg |
| Gross Weight | 130 kg |
Features
Applications
Refrigerated Centrifuge is widely used in biochemical and clinical labs for precipitate separation and serum analysis, in pharmaceutical industry etc. and is perfect for DNA, RNA, PCR or antibody analysis.
Rotor Selection
| Rotor Name | Max. Speed (rpm) | Max. Capacity (ml) | Max. RCF (x g) |
| Swing rotor 01 | 4000 | 4 x 300 (Round Cup) | 2920 |
| Swing rotor 02 | 4000 | 4 x 300 (Square Cup) | 2920 |
| Swing rotor 03 | 4000 | 4×24×5ml | 2840 |
| 4×24×7ml | 3140 | ||
| 4 x 18 x 10 | |||
| Swing rotor 04 | 4000 | 4 x 31 (Khan tube) | 2840 |
| Angle rotor 01 | 5000 | 12 x 15 | 3080 |
| Angle rotor 02 | 5000 | 6 x 50 | 2850 |
| Angle rotor 03 | 5000 | 4 x 50 | 2520 |
| Angle rotor 04 | 5000 | 4 x 100 | 2630 |
| Angle rotor 05 | 5000 | 24 x 15 | 3500 |
| Angle rotor 06 | 5000 | 12 x 50 | 3860 |
| Angle rotor 07 | 5000 | 6 x 100 | 3130 |
| Angle rotor 08 | 4000 | 12 x 100 | 2970 |
| Microplate rotor 01 | 4000 | 2 x 4 x 96 well | 2490 |
| 2 x 3 x 48 well | 2300 | ||
| Microplate rotor 01 | 4000 | 2 x 4 x 96 well | 2490 |
| 2 x 3 x 48 well | 2300 |
Adapter
Adapter for 300ml round cup and square cup:
| Volume | 5ml | 7ml | 10ml | 15ml | 50ml |
| 300ml （Square Cup） | 16pcs/cup | 16 | 12 | 9 | 4 |
| 300ml （Round Cup） | 10pcs/cup | 10 | 9 | 7 | 2 |
Lab Expo refrigerated centrifuges are floor-standing, microprocessor-controlled devices that can reach speeds ranging from 5000 to 50000 rpm. They have LCD or LED displays for speed, time, and RCF. They have automatic electronic lid locks to protect against overspeed, overheating, and unbalance. They have three-tiered steel covers and fluorine-free compressors with double-cycle cooling and heating. These models use flexible axle-driven rotor systems with brushless frequency or DC motors. They can store several programs and have varied speed settings. Our refrigerator centrifuges are dependable, low-maintenance, and eco-friendly.
