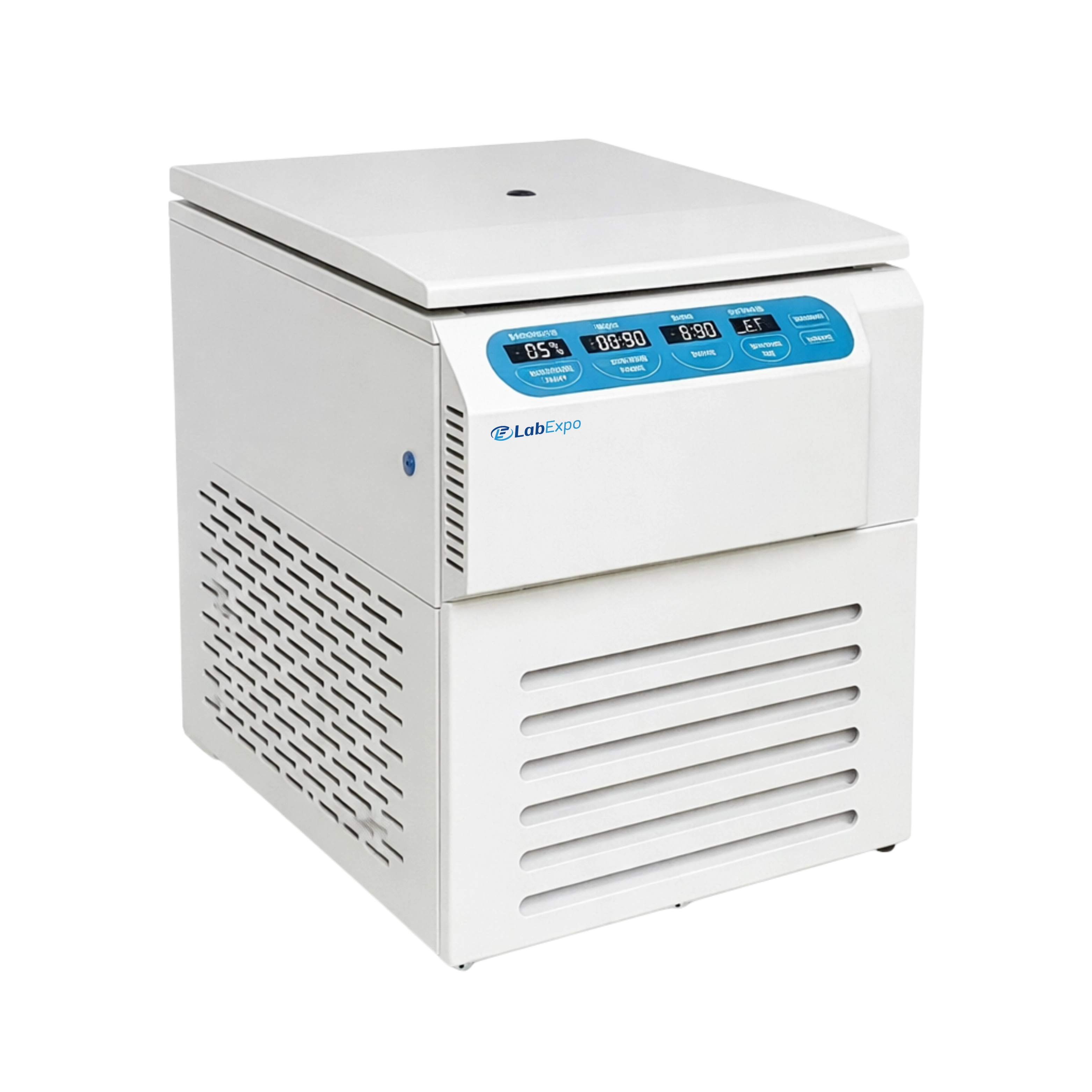

Refrigerated Centrifuge 02A-HRC103 is a microprocessor controlled floor standing refrigerated centrifuge having 6000 rpm speed. It is safe, reliable, low maintenance and easy-to-use instrument equipped with LCD display and low noise flexible axle driven rotor system. With auto electric locking system fluorine free compressors and 3 tier protective steel covering, it is ideal for blood separation, protein precipitation etc. and can be used at blood station and pharmaceutical industry for variety of applications.
$13,320.00
$11,100.00
Specifications
| Max. Speed | 6000 rpm |
| Max. RCF | 6600 x g |
| Max. Capacity | 6 x 1000 ml |
| Temp. Range | (-20) °C to 40 °C |
| Temp. Accuracy | ± 1 ℃ |
| Speed Accuracy | ± 50 rpm |
| Timer Range | 1 to 99 hr. 59 min |
| Noise | ≦ 65 dB |
| Rotor Identification | Automatic |
| Power Supply | AC 110 to 220 V / 50 to 60 Hz / 20 A |
| Dimension (H x W x D) | 940 x 735 x 1260 mm |
| Packaged Dimension (H x W x D) | 1150 x 1050 x 1405 mm |
| Net Weight | 260 kg |
| Gross Weight | 300 kg |
Features
Applications
Refrigerated Centrifuge can be used in biochemical and clinical labs for precipitate separation, serum analysis etc. and is widely used in the pharmaceutical industry and at blood station. It is ideal for DNA, RNA, PCR or antibody analysis.
Rotor Selection
| Rotor Name | Max. Speed (rpm) | Max. Capacity (ml) | Max. RCF (x g) |
| Angle rotor 01 | 6000 | 6 x 500 | 6600 |
| Angle rotor 02 | 6000 | 6 x 300 | 5660 |
| Angle rotor 03 | 6000 | 4 x 300 | 5390 |
| Swing rotor 01 | 4200 | 6 x 1000 | 5100 |
Adapter
Adapter for 1000ml bucket:
| Volume | 5ml | 7ml | 10ml | 15ml | 50ml |
| 1000ml | 23pcs/cup | 23 | 19 | 14 | 5 |
Lab Expo refrigerated centrifuges are floor-standing, microprocessor-controlled devices that can reach speeds ranging from 5000 to 50000 rpm. They have LCD or LED displays for speed, time, and RCF. They have automatic electronic lid locks to protect against overspeed, overheating, and unbalance. They have three-tiered steel covers and fluorine-free compressors with double-cycle cooling and heating. These models use flexible axle-driven rotor systems with brushless frequency or DC motors. They can store several programs and have varied speed settings. Our refrigerator centrifuges are dependable, low-maintenance, and eco-friendly.
