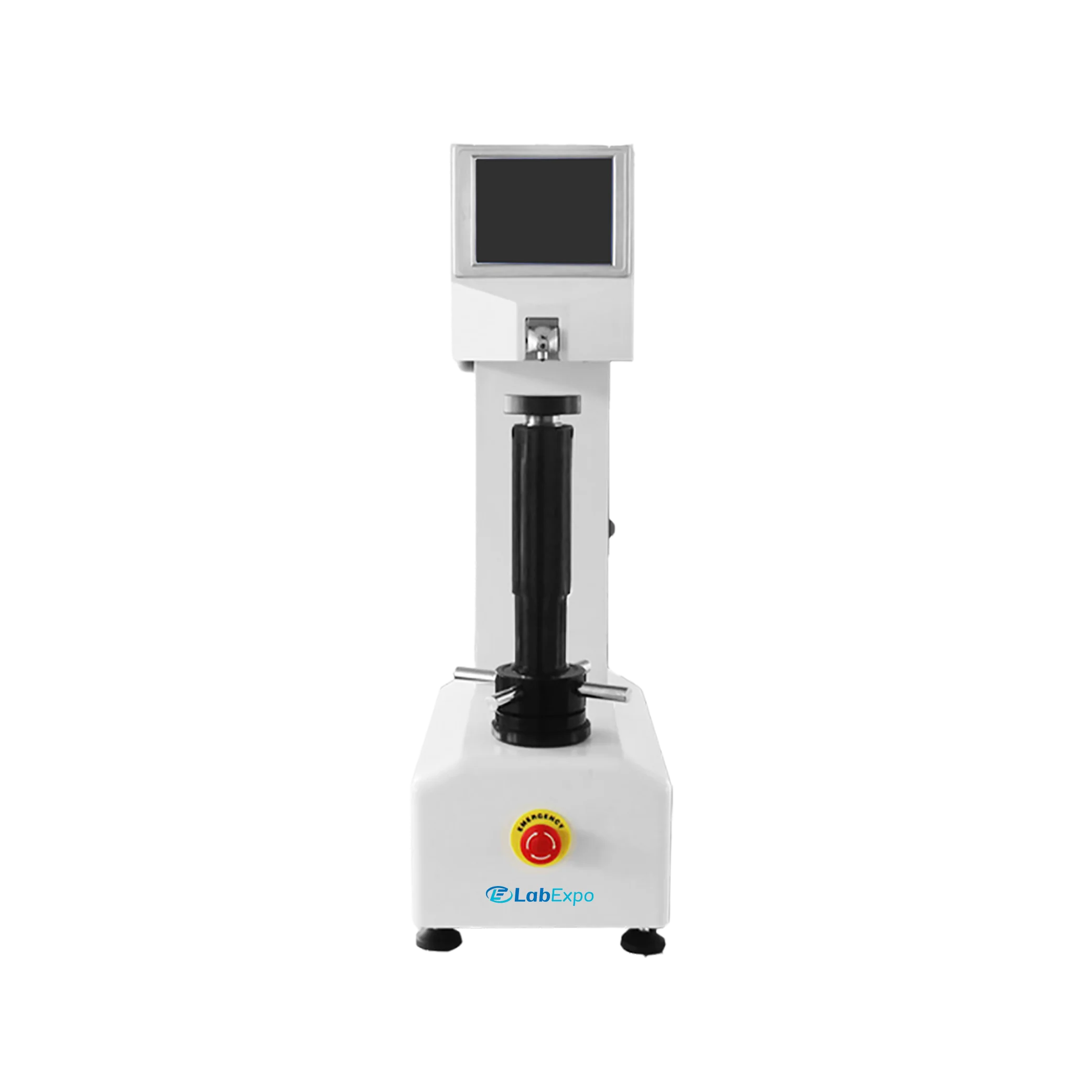

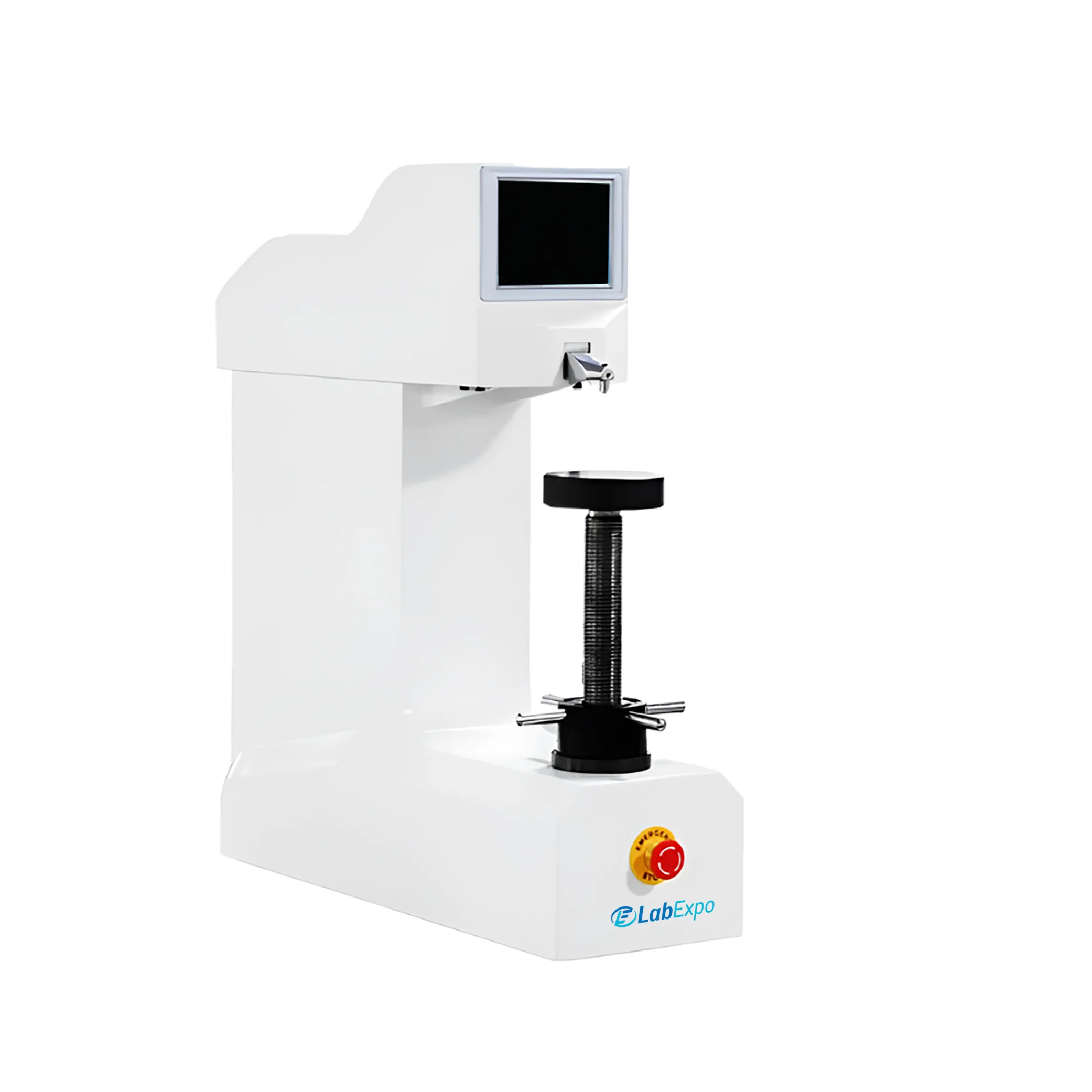

Lab Expo Rockwell Hardness Tester 10-RHT102 is designed with an initial test force of 10 kgf (98.07 n). It features a horizontal extending indenter, providing smooth and consistent penetration. Integrated dwell time allows precise control from 0 to 99 seconds, ensuring accurate hardness measurements. Built-in lcd display for clear visualization for easy operation and accurate readings. Our Rockwell Hardness Tester is widely used for measuring material hardness in metallurgical, automotive, and manufacturing industries.
$7,915.00 $ 6596
| Initial Test Force | 10 kgf (98.07 N) |
| Total Test Force | 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N) |
| Hardness Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Test Range | HRA: 20 to 88, HRB: 20 to 100, HRC: 20 to 70, HRD: 40 to 77, HRE: 70 to 100, HRF: 60 to 100, HRG: 30 to 94, HRH: 80 to 100, HRK: 40 to 100, HRL: 100 to 120, HRM: 85 to 115, HRR: 114 to 125 |
| Dwell Time | 0 to 99 s |
| Hardness Value Resolution | 0.1 HR |
| Test Force Error | |
| Data Output | LCD Display |
| Data Storage | Measured Values Saved in USB Flash Drive (EXCEL format) |
| Conversion Scale | Surface Rockwell, Brinell, Vickers |
| Complies With Standards | BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
| Maximum Allowable Specimen Height | 300 mm |
| Distance from Pressure Head to Machine Wall | 250 mm |
| Power Supply | AC 220V ±5%, 50 to 60 Hz |
| Dimension | 720 × 260 × 840 mm |
| Weight | 80 Kg |
Function Implementation Material hardness testing 0.1 HR resolution enables precise measurement differentiation Metallurgical lab analysis 150 kgf total test force supports standard industrial scales Automotive component evaluation HRA scale range 20 to 88 covers common alloy assessments Quality control inspection USB flash drive data storage allows traceable record keeping Production line verification ±1.0% test force error ensures consistent repeatability
Lab Expo Rockwell Hardness Tester units are used for hardness determination of metallic materials under controlled indentation loads. Systems support initial test forces from 3 kgf to 10 kgf with total test forces reaching 150 kgf across standard and superficial Rockwell scales including HRA, HRB, HRC, HR15N, and HR45N. Configurations are structured for repeatable hardness evaluation in metallurgical analysis, production inspection, heat treatment verification, and material quality control workflows.
