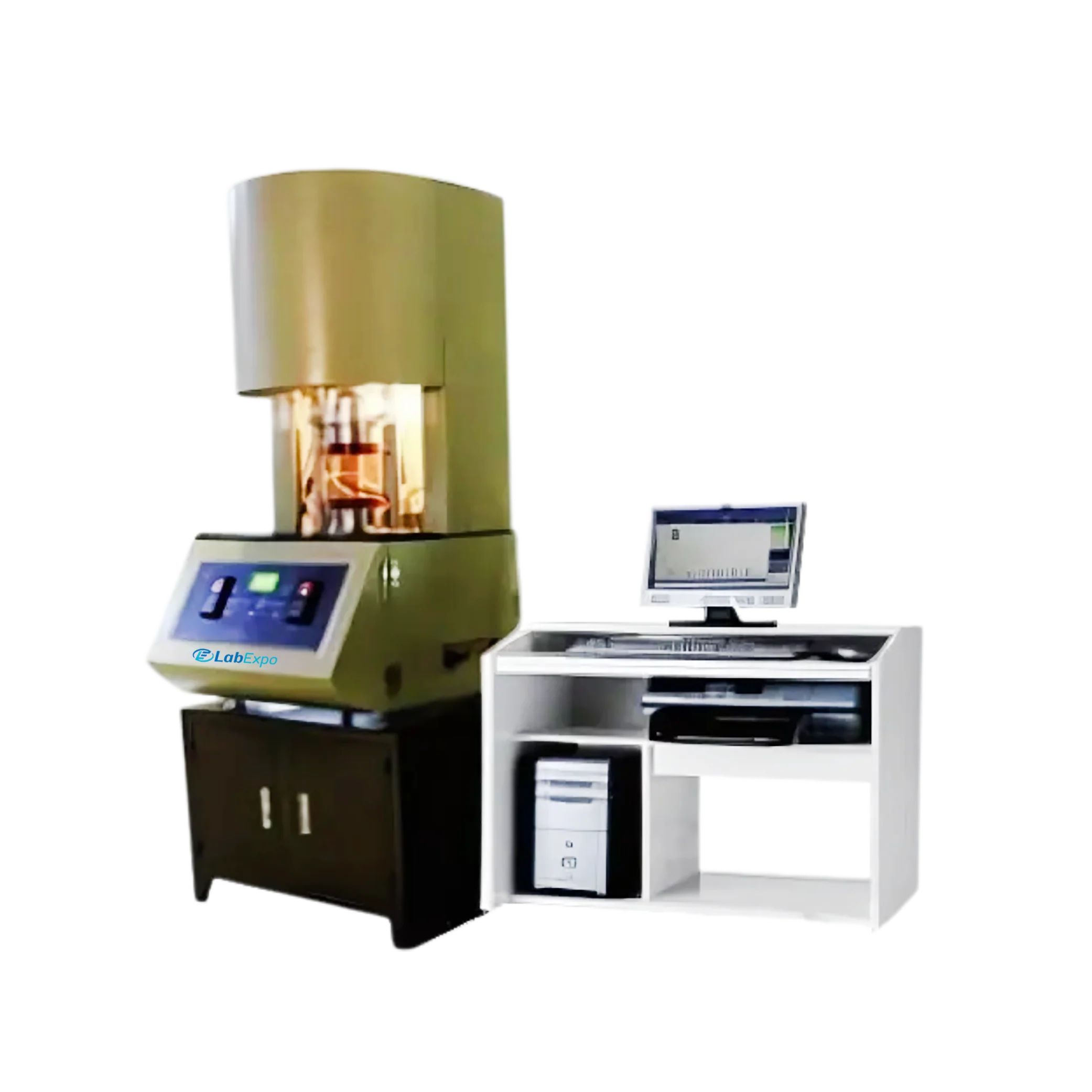

Lab Expo Mooney Viscometer 61-RTI101 delivers a temperature control range from normal temperature up to 200°C. It ensures calibration accuracy of Mooney Value ±0.5, providing consistent and dependable measurement results. Equipped with a rotor speed of 2 rpm for stable and accurate viscometer testing operations. Incorporated PID microprocessor-controlled technology ensures precise regulation and stable testing performance. Our Mooney Viscometer is suitable for use in rubber and plastic industry for testing elastomers and polymers.
$15,120.00 $ 12600
| Temperature Control Range | Normal Temperature to 200°C |
| Temperature Display Resolution | 0.01°C |
| Temperature Control Accuracy | ± 0.3° |
| Calibration Accuracy | Mooney Value ± 0.5 |
| Rotor Speed | 2 rpm |
| Speed Accuracy | ± 0.02 rpm |
| Torque Range | Mooney Value 0 to 200 |
| Torque Resolution | Mooney Value 0.1 |
| Printer Connection | Yes |
| Content Printed | Data, Time, Temperature, Mooney Scorch Curve & MV , T5 T35 T3 T18 @15 @30 |
| Power Supply | AC 220 V, 50 Hz, ± 10 % |
Function Implementation Rubber quality control 200 Mooney Value range enables full-scale viscosity assessment Plastic compound testing ±0.3°C accuracy ensures precise thermal stability during analysis Scorch curve evaluation Printer connection outputs Time, Temperature & Mooney data for process monitoring Laboratory batch testing 2 rpm rotor speed provides consistent shear for repeatable measurements Calibration verification labs ±0.5 Mooney Value calibration accuracy supports traceable test results
Lab Expo Rubber Testing Instruments are designed for abrasion, viscosity, rheology, brittleness, and plasticity analysis of rubber materials. The range includes DIN abrasion testers, Mooney viscometers, rheometers, and low-temperature brittleness testers with temperature control up to 300°C and low-temperature operation down to -120°C for rubber quality control and material testing applications.
