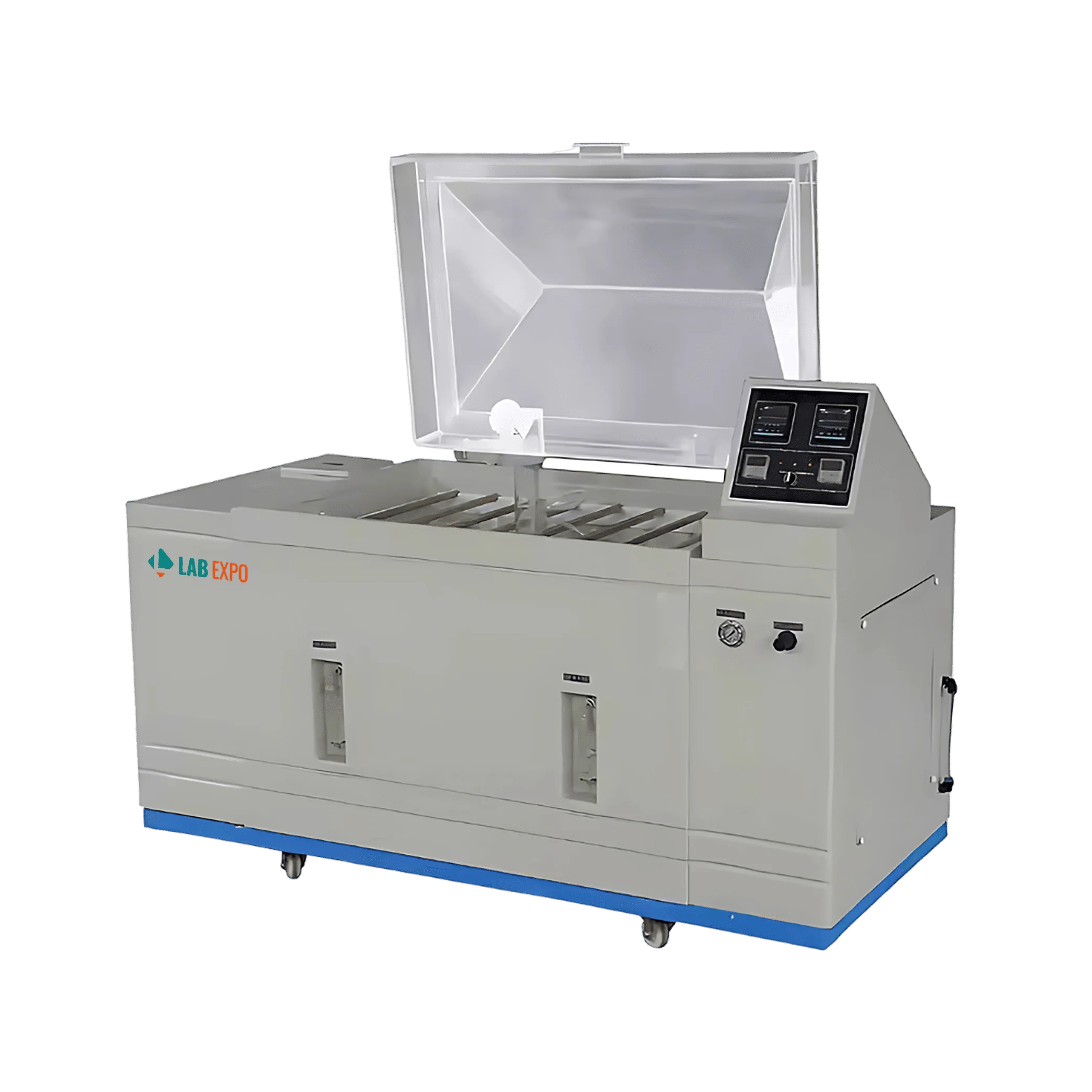

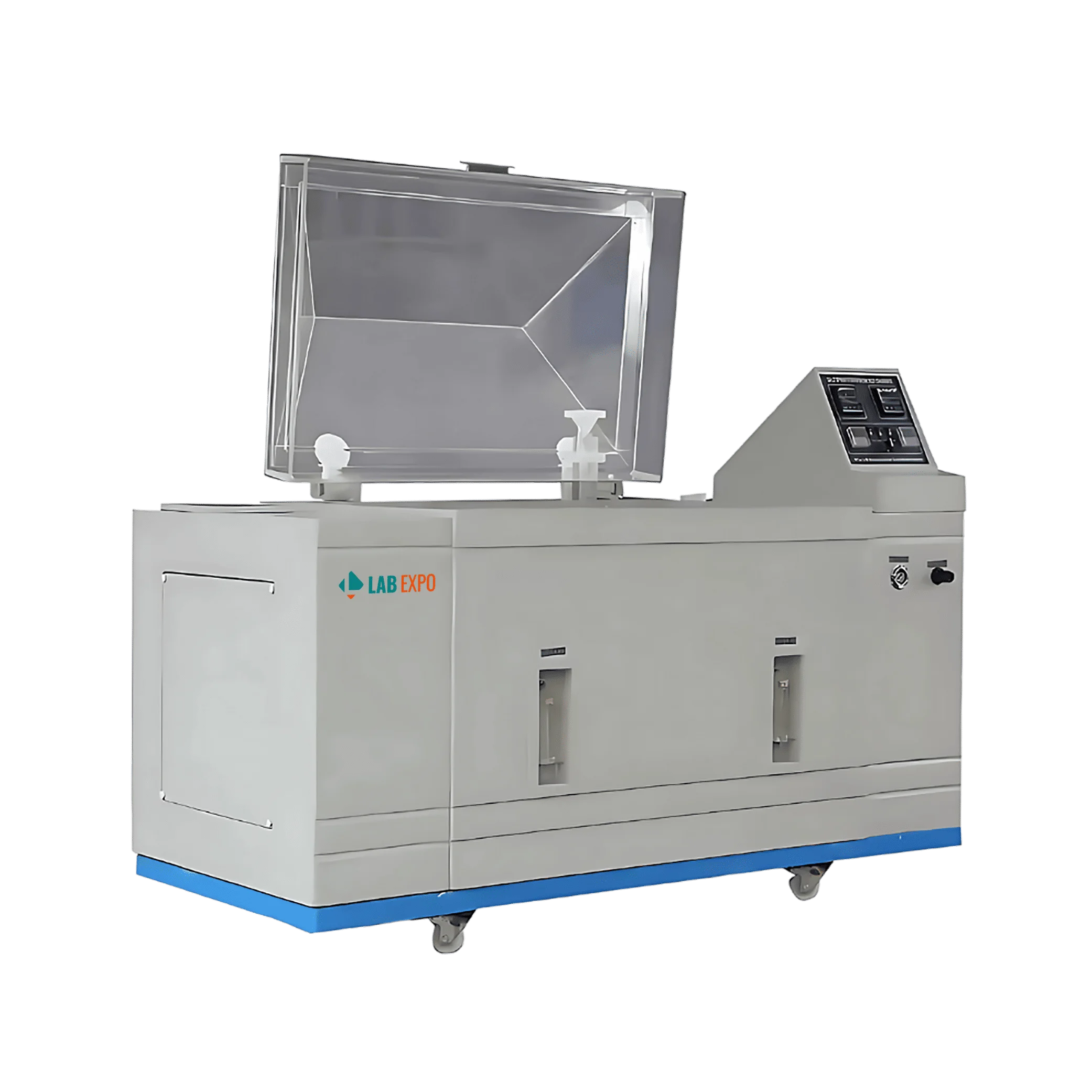

Salt Spray Test Chamber 24-STC100

This Salt Spray Test chamber is highly reliable instrument to test the corrosion resistivity of products whose has painted, organic or inorganic film surface.

Testing Room Capacity 110 L
Temperature Range Ambient ~ 60 ℃
Humidity Range 95 % ~ 98 % RH
Temperature Fluctuations ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Test Time 1 ~ 999 hours, settable
Spray Deposition 1 ~ 2 ml / 80 cm2 ·h
Spray Type Continuous / Periodic
Interior /Exterior material Glass fibre reinforced plastics; (corrosion resistance, Anti-aging, high strength)
Inner Dimension 470 × 590 × 400 mm
Outer Dimension 620 × 1400 × 1050 mm
Input Power 2500 W
Power Supply AC 220 V 50 Hz
  • Digital micro-computer controller with LED display
  • Smooth interior wall, accurate angle and no crystalline in long-time spraying
  • Chamber material: Glass fibre reinforced plastics
  • Safety devices includes high and low pressure protective switch and high humidity temperature protective switches
  • Can be continuous / periodic salt spraying
  • Standard specimen holder, Hydrostatic hood seal, Collectors in fog chamber

It is used to test the corrosive resistance of products Having treated surface such as paints, oil etc. Hence, used in medical, automation and automotive industries.
