Salt Spray Test Chamber 24-STC105
Product1
Product2

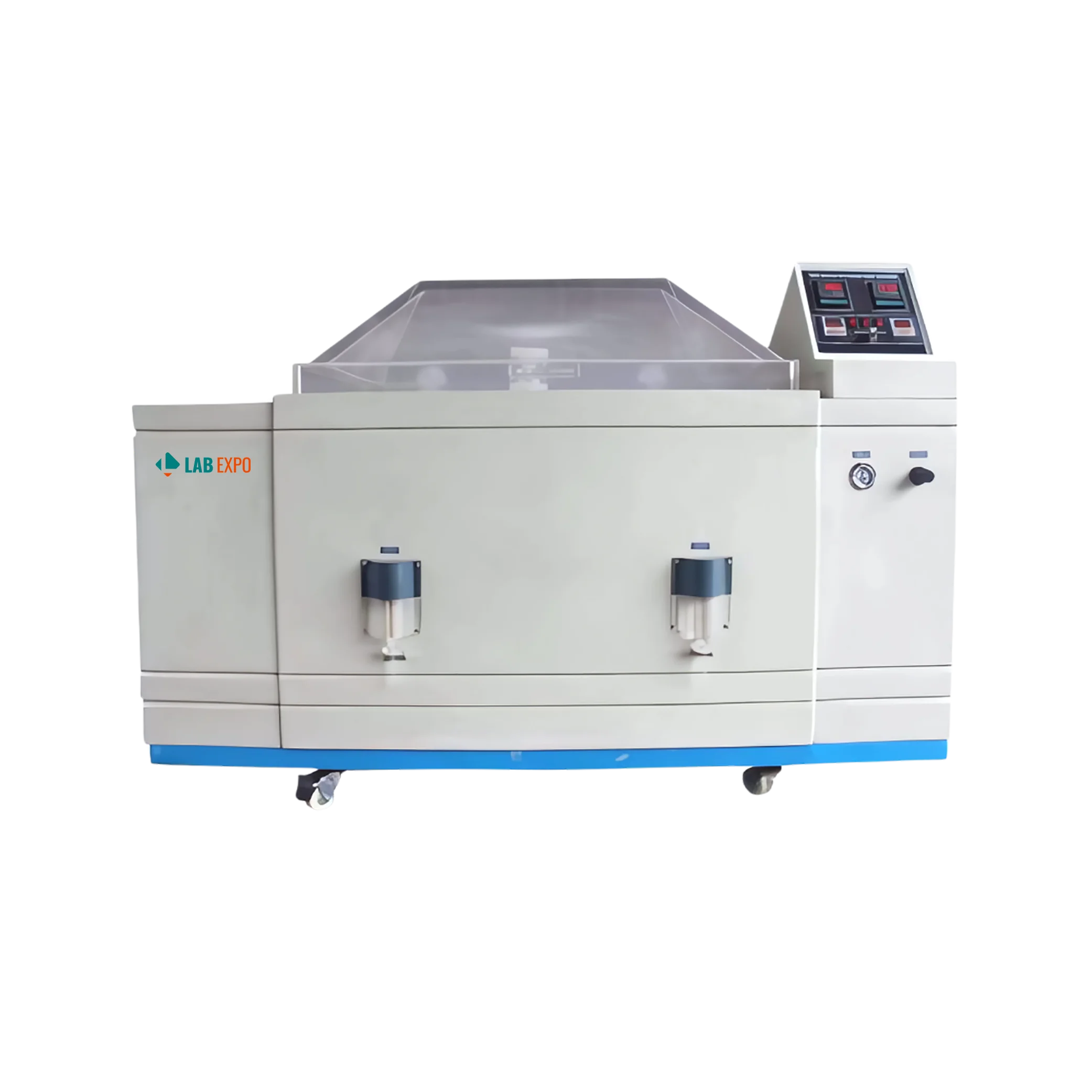

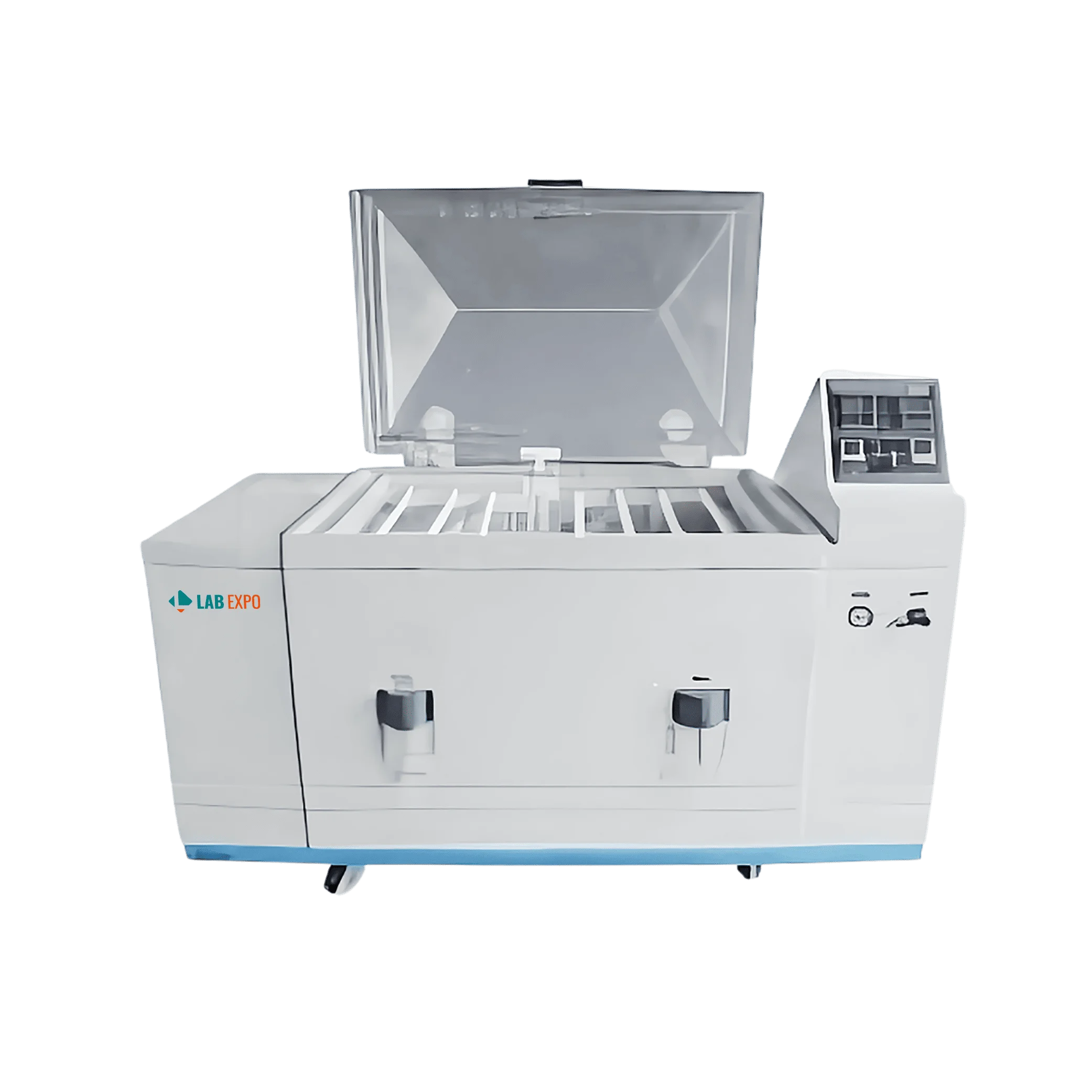

Salt Spray Test Chamber 24-STC105

Lab Expo Salt Spray Test Chamber 24-STC105 features a temperature range from ambient to 60℃ providing a broad scope for various testing conditions. It has a spacious 1600L capacity allowing for testing larger samples or multiple items at once. It comes with a standard specimen holder for easy and secure sample placement during tests.

$20,966.00 $ 17472

Salt Spray Test Chamber 24-STC105 - Specifications

Testing Room Capacity 1600 L
Temperature Range Ambient to 60 ℃
Humidity Range 95 % to 98 % RH
Temperature Fluctuations ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Test Time 1 to 999 hours, settable
Spray Deposition 1 to 2 ml / 80 cm2 ·h
Spray Type Continuous / Periodic
Interior /Exterior material Glass fibre reinforced plastics; (corrosion resistance, Anti-aging, high strength)
Input Power 11000 W
Power Supply AC 380 V 50 Hz
Inner Dimension 1000 × 2000 × 800 mm
Outer Dimension 1420 × 3000 × 1850 mm

Salt Spray Test Chamber 24-STC105 - Key Features

  • Digital micro-computer controller with LED display and 0.1C resolution
  • Glass fibre reinforced plastics chamber with corrosion resistance properties
  • High and low pressure protective switch with humidity temperature safeguards
  • Continuous or periodic salt spraying capability for test flexibility
  • Standard specimen holder with hydrostatic hood seal design
  • Collectors in fog chamber for deposition measurement accuracy

Salt Spray Test Chamber 24-STC105 - Applications

FunctionImplementation
Quality control labs1600 L capacity supports batch testing of multiple samples
Corrosion research facilities± 2.0 ℃ temperature deviation ensures consistent environmental simulation
Marine equipment testing95 % to 98 % RH humidity range replicates harsh coastal conditions
Automotive parts validationTest Time: 1 to 999 hours enables accelerated aging protocols
Aerospace component evaluationSpray Deposition: 1 to 2 ml / 80 cm²·h allows precise corrosion rate measurement

Salt Spray Test Chamber 24-STC105 - Catalog

Salt Spray Test Chamber 24-STC105 Catalog

Related Salt Spray Test Chamber

Lab Expo Salt Spray Test Chamber enables controlled corrosion evaluation with uniform salt mist generation for accelerated durability testing. Designed to function as a salt spray tester, it supports continuous and cyclic test modes with precise temperature regulation and stable exposure conditions. Digital control, corrosion-resistant build, and integrated safety systems allow repeatable performance for quality control, research, and industrial material testing workflows.
