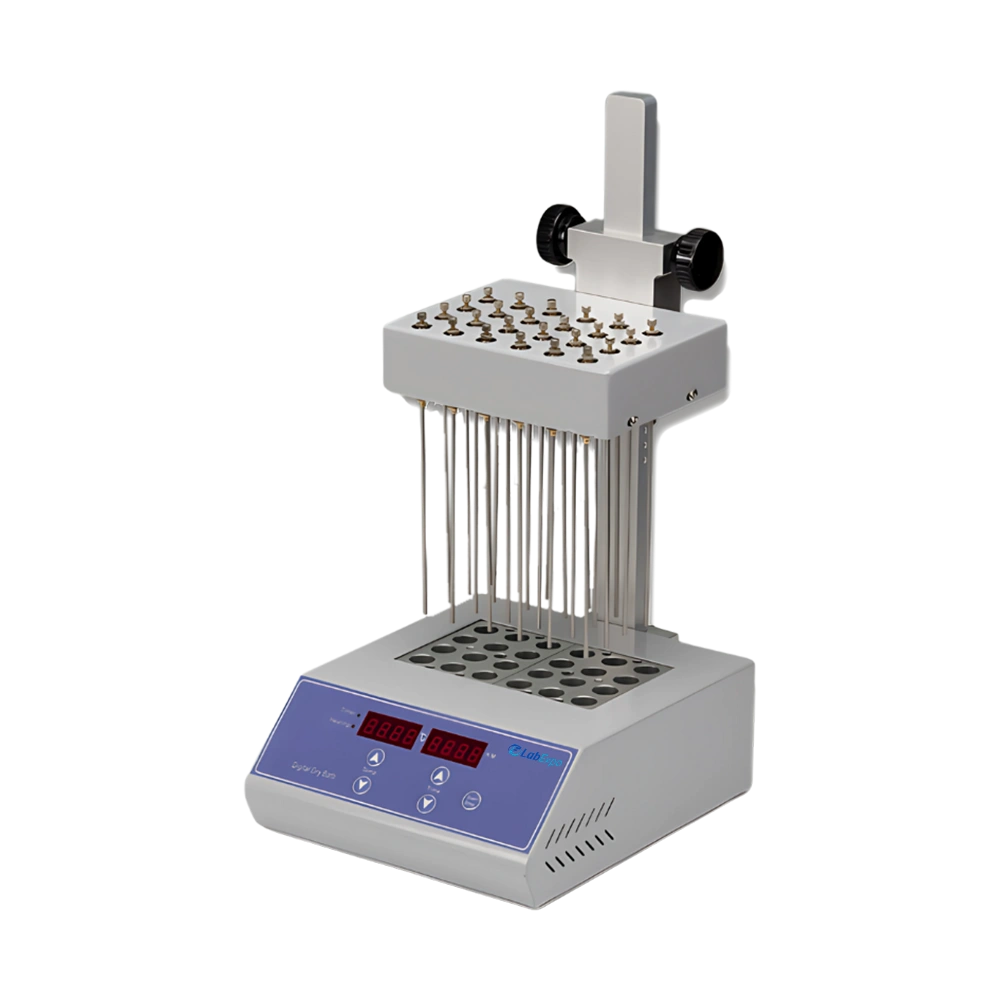

Lab Expo Sample Concentrator LE-SC202 provides dual-block capacity designed for simultaneous evaporation of multiple samples with thermal uniformity. It maintains precise temperature control up to 160°C for demanding laboratory environments. Equipped with adjustable nitrogen flow and user-friendly display for easy operation. Our Sample Concentrator delivers reliable performance and ensures sample safety in laboratories.
$2,566.00 $ 2138
| Temperature Range | 0℃ to 160℃ |
| Temperature Control Range | 5℃ to 160℃ |
| Block Quantity | 1 |
| Time Range | 1min to 99min 59sec |
| Temperature Accuracy | ± 0.5℃ (at 40℃)± 1℃ (at 120℃) |
| Temperature Uniformity | ± 0.5℃ |
| Display Accuracy | 0.1℃ |
| Heating Time | ≤ 15 min |
| Maximum Vertical Travel | 200 mm |
| Nitrogen Flow Rate | 15 L/min |
| Nitrogen Pressure | 0.1 MPa |
| Power Consumption | 500W |
| Power Supply | AC 220/110V, 50/60 Hz |
| Dimension | 260 × 220 × 475 |
| Weight | 7.5 Kg |
Function Implementation Sample evaporation 15 L/min nitrogen flow enables rapid solvent removal Multi-sample processing Dual-block capacity supports simultaneous sample handling Temperature control ±0.5°C uniformity ensures consistent heating across samples Time programming 1 min to 99 min 59 sec range allows precise process timing Laboratory workflows ≤15 min heating time accelerates sample preparation cycles
Block – 10mm × 12
Block – 12mm × 12
Block – 13mm × 12
Block – 15mm × 12
Block – 16mm × 12
Block – 19mm × 12
Block – 20mm × 12
Flow control valve
1: Q1. What is the Sample Concentrator LE-SC202 used for?
It is used for efficient evaporation of samples in applications such as drug testing, pesticide residue analysis, clinical diagnostics, environmental monitoring, and industrial chemistry.
2: Q2. What is the supported temperature range?
Our device operates in a temperature range of 5°C to 160°C, suitable for various sample processing needs.
3: Q3. How long can the device run?
The time range is programmable between 1 minute and 99 minutes 59 seconds, offering flexibility in evaporation cycles.
4: Q4. Is the Sample Concentrator safe to use?
Yes, it features a safety alarm system and microprocessor control for enhanced safety and automation.
5: Q5. How fast does it heat up?
The system reaches the target temperature in 15 minutes or less, ensuring rapid operation.
6: Which laboratory workflows benefit most from the dual-block design?
These concentrators are especially useful in parallel testing environments, such as food safety labs, pharma QC, and environmental monitoring.
7: How does the nitrogen flow adjustment support sample integrity?
Their adjustable nitrogen flow ensures gentle, controlled evaporation, preventing sample loss or degradation.
8: What safety mechanisms are integrated into this model?
They feature temperature accuracy control and uniform heat distribution, reducing risks of overheating or uneven evaporation.
9: Can the concentrator be used for temperature-sensitive samples?
It allows precise regulation from 5°C to 160°C, making it suitable for sensitive biological and chemical materials.
10: How portable and space-efficient is the SC202?
Our compact concentrator is designed with a lightweight build and minimal footprint, making it easy to integrate into laboratory setups.
11: What is a Sample Concentrator and what is it used for?
A Sample Concentrator is a laboratory device used to evaporate solvents and concentrate multiple samples simultaneously.
12: What is nitrogen blowdown technology in a Sample Concentrator?
Nitrogen blowdown technology involves directing a stream of inert nitrogen gas onto the surface of liquid samples to accelerate solvent evaporation while minimizing oxidation or degradation.
13: How does the compact design benefit laboratory use?
The compact footprint minimizes the use of valuable bench space, making it ideal for crowded or space-limited laboratories without compromising performance.
14: Are these units easy to move or relocate?
Yes, their lightweight and compact design often make them portable and easy to reposition within the lab as needed.
15: Why is concentrating samples important in laboratory workflows?
Concentration improves analyte detectability, ensures more accurate analysis, and allows for better sensitivity in downstream testing methods.
Lab Expo Sample Concentrator units are designed for rapid sample evaporation and concentration using controlled heating and nitrogen blowdown methods. The range includes evaporator nitrogen systems with temperature control up to 160℃, multiple block configurations, and timed operation for chemical, pharmaceutical, and analytical sample preparation using a nitrogen gas evaporator setup.
