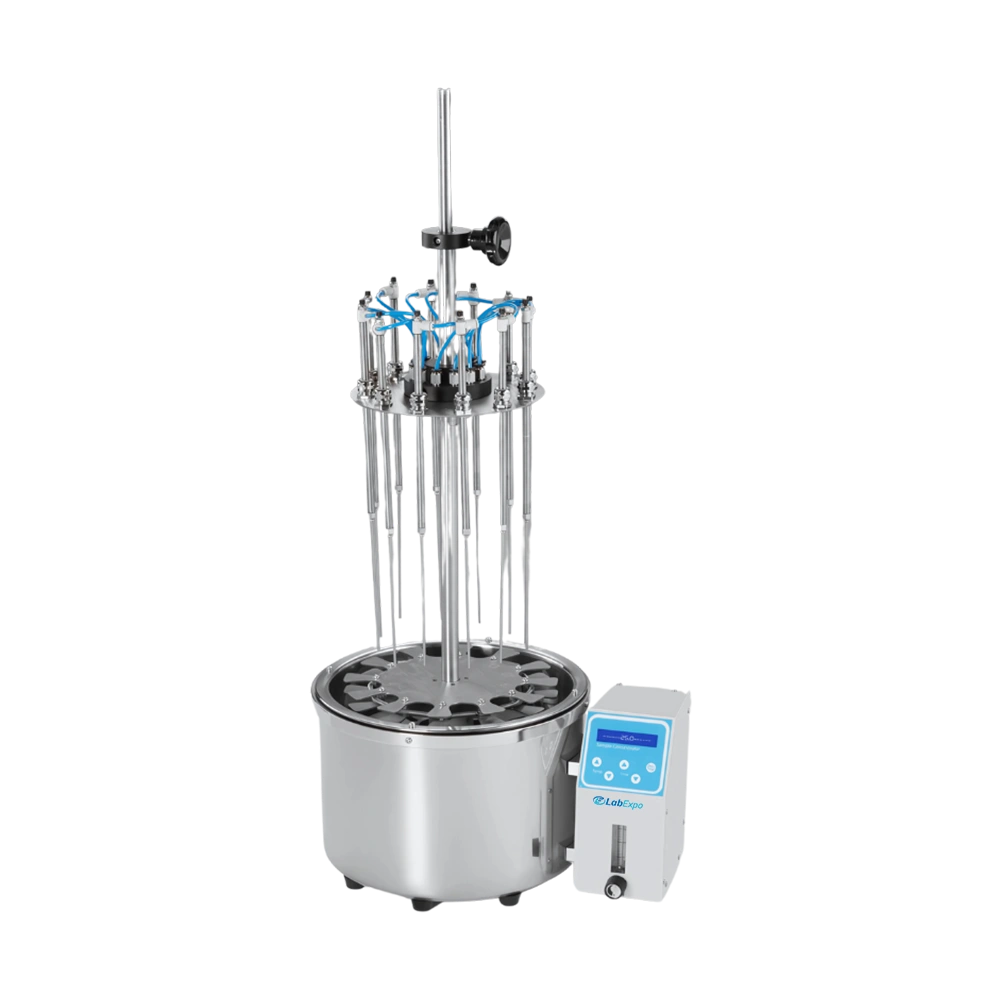

Lab Expo Sample Concentrator LE-SC501 supports 12-position simultaneous sample handling for time-efficient workflows. It provides a gas distribution system for precise nitrogen flow control. Equipped with flexible adjustment of needle height, gas flow and sample tube dimensions to ensure smooth and efficient operations. Our Sample Concentrator ensures consistent performance and user protection in laboratories.
$2,904.00 $ 2420
| Temperature Control Range | 5℃ to 99℃ |
| Sample Position | 12 |
| Needle Length | 150mm |
| Time Range | 1min to 99hr 59min |
| Temperature Accuracy | ± 1℃ |
| Temperature Uniformity | ± 1℃ (at 60℃) |
| Display Accuracy | 0.1℃ |
| Heating Time | ≤ 30 min |
| Maximum Vertical Travel | 200 mm |
| Gas Flow Rate | 15 L/min |
| Gas Pressure | 200 KPa |
| Power Consumption | 1000W |
| Power Supply | 250V, 8 A |
| Dimension | 390 × 300 × 850 |
| Weight | 10 Kg |
Function Implementation Sample preparation labs 12 positions enable simultaneous sample processing Quality control testing ±1℃ accuracy supports repeatable analytical results Clinical diagnostics 1000W power ensures ≤30 min heating time for rapid throughput Research laboratories 5℃ to 99℃ range accommodates diverse thermal protocols Industrial workflows 200 KPa gas pressure maintains consistent nitrogen flow rates
1: How many samples can be processed at once?
SC501 supports 12-position simultaneous sample handling, enabling parallel evaporation to improve lab efficiency.
2: What is the heating time for the system?
It heats up to the target temperature in 30 minutes or less.
3: Is the nitrogen flow adjustable?
Yes, the SC501 features a precise gas distribution system with adjustable nitrogen flow rate up to 15 L/min and a gas pressure capacity of 200 KPa.
4: What is the maximum travel distance of the needle arm?
The maximum vertical travel is 200 mm, allowing flexibility for various tube sizes and sample volumes.
5: Does the device include safety features?
Yes, it includes leak protection, stable heating, and easy calibration support for safe and reliable operation.
6: How many samples can the SC501 process at once?
It supports 12 positions simultaneously, making it ideal for high-throughput workflows.
7: What makes the SC501 suitable for volatile solvent handling?
Its precise nitrogen gas distribution system minimizes solvent loss and improves reproducibility.
8: How does the unit ensure safety during long operations?
The SC501 is equipped with leak protection and stable heating control, safeguarding both the operator and samples.
9: What is the maximum needle adjustment range?
These concentrator allows 200 mm vertical needle travel, ensuring compatibility with various sample tube heights.
10: How durable is the system for intensive lab use?
Our Sample Concentrator is built with a 1000W heating system and robust design, the SC501 delivers long-term reliability in demanding environments.
11: What is a Sample Concentrator and what is it used for?
A Sample Concentrator is a laboratory device used to evaporate solvents and concentrate multiple samples simultaneously.
12: What is nitrogen blowdown technology in a Sample Concentrator?
Nitrogen blowdown technology involves directing a stream of inert nitrogen gas onto the surface of liquid samples to accelerate solvent evaporation while minimizing oxidation or degradation.
13: How does the compact design benefit laboratory use?
The compact footprint minimizes the use of valuable bench space, making it ideal for crowded or space-limited laboratories without compromising performance.
14: Are these units easy to move or relocate?
Yes, their lightweight and compact design often make them portable and easy to reposition within the lab as needed.
15: Why is concentrating samples important in laboratory workflows?
Concentration improves analyte detectability, ensures more accurate analysis, and allows for better sensitivity in downstream testing methods.
Lab Expo Sample Concentrator units are designed for rapid sample evaporation and concentration using controlled heating and nitrogen blowdown methods. The range includes evaporator nitrogen systems with temperature control up to 160℃, multiple block configurations, and timed operation for chemical, pharmaceutical, and analytical sample preparation using a nitrogen gas evaporator setup.
