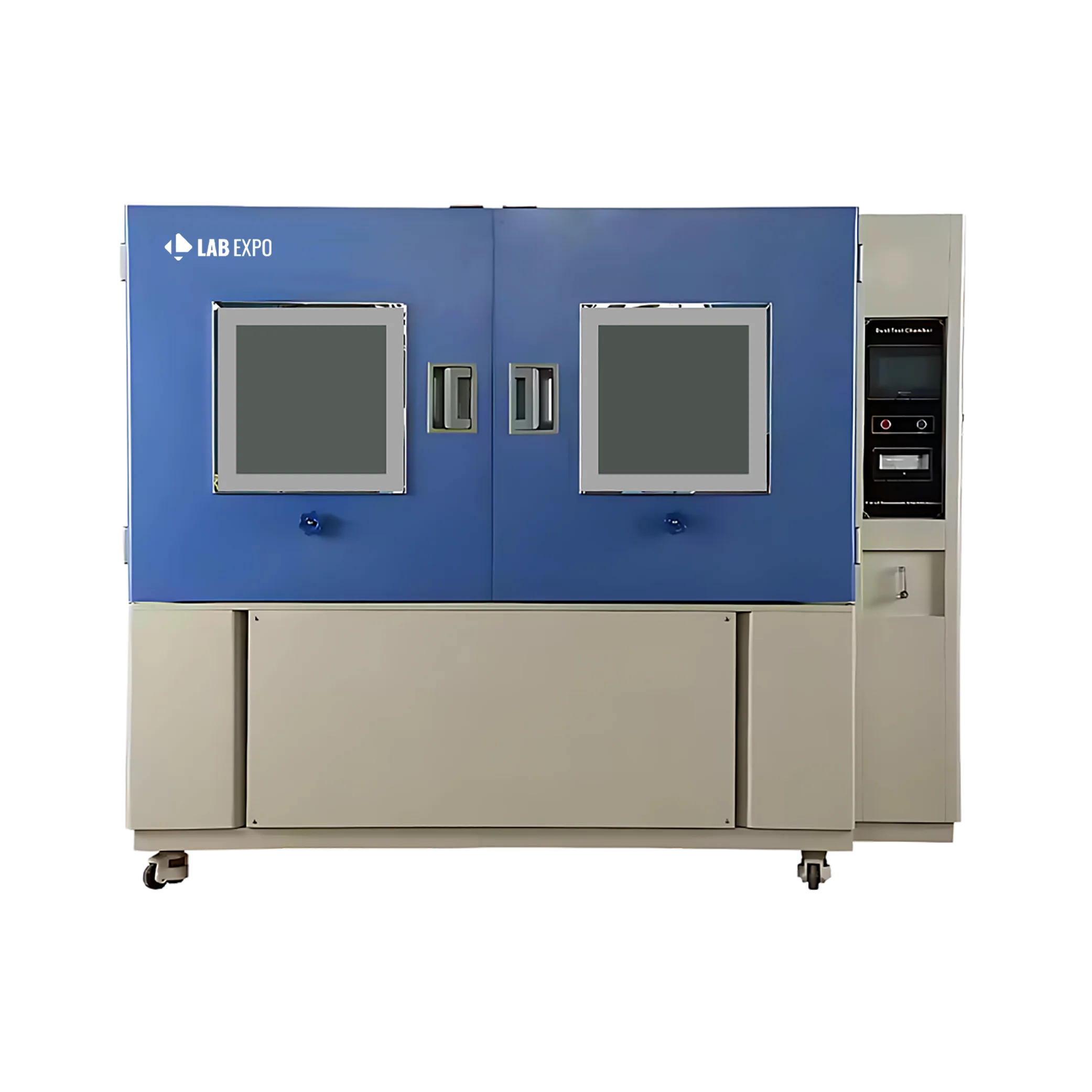

Sand and Dust Test Chamber 24-SDC100

Lab Expo Sand and Dust Test Chamber 24-SDC100 tests product durability against particulate ingress. ambient to +50 ℃ temperature range, and enclosed alloy low-noise centrifugal fan. Features include independent Nichrome heating, dust-proof AC220V 16A outlet, vacuum system with pressure regulation, and PID programmable controller with LCD touchscreen. Operates on 380 V 50 Hz at 55 W nominal power with fan cycle time adjustable from 0 to 99 H 59 M. Suitable for evaluating electronics, plastics, metals, chemicals, aerospace components with environmental sealing standards.

$23,069.00 $ 19224

Sand and Dust Test Chamber 24-SDC100 - Specifications

Temperature range Ambient to + 50 ℃
Relative Humidity < 30 % RH
Normal wire diameter 50 um
Normal width of a gap between wire 75 um
The Talcum powder amount 2 kg to 4 kg / m3
Fight time 0 to 99 H 59 M
Fan cycle time 0 to 99 H 59 M
Specimen power outlet Dust-proof socket AC220V 16A
Vacuum system Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Circulating fan Enclosed alloy low-noise motor, multi-vane centrifugal fan
Heating system Independent Nichrome electronic heating system
Nominal power 5500 W
Power supply 380 V 50 Hz
Internal dimensions 800 × 1000 × 1000 mm
Overall dimensions 1040 × 1450 × 1960 mm

Sand and Dust Test Chamber 24-SDC100 - Key Features

  • PID programmable controller with LCD touch screen display 0.1C resolution
  • Circulatory pump system uses effective dust re-cycle blowing 99H59M cycle time
  • Enclosed Nichrome heating system maintains

Sand and Dust Test Chamber 24-SDC100 - Applications

FunctionImplementation
Environmental simulation labsAmbient to +50℃ enables controlled temperature exposure
Dust resistance testing2 kg to 4 kg/m³ talcum powder controls particulate concentration
Extended test cycles0 to 99 H 59 M fight time supports prolonged operation
Electrical safety validationDust-proof AC220V 16A outlet powers specimen equipment
Continuous airflow systemsEnclosed alloy low-noise motor ensures stable circulation

Sand and Dust Test Chamber 24-SDC100 - Catalog

Sand and Dust Test Chamber 24-SDC100 Catalog

Related Sand and Dust Test Chamber

Lab Expo Sand and Dust Test Chamber enables controlled durability evaluation by simulating harsh particulate exposure with adjustable concentration and temperature regulation. Designed for sand and dust testing, it supports uniform sample coverage, efficient sand drying for reuse, and continuous operation. LCD-based control and corrosion-resistant build allow repeatable environmental testing across automotive, electronics, aerospace, and industrial quality control workflows.
