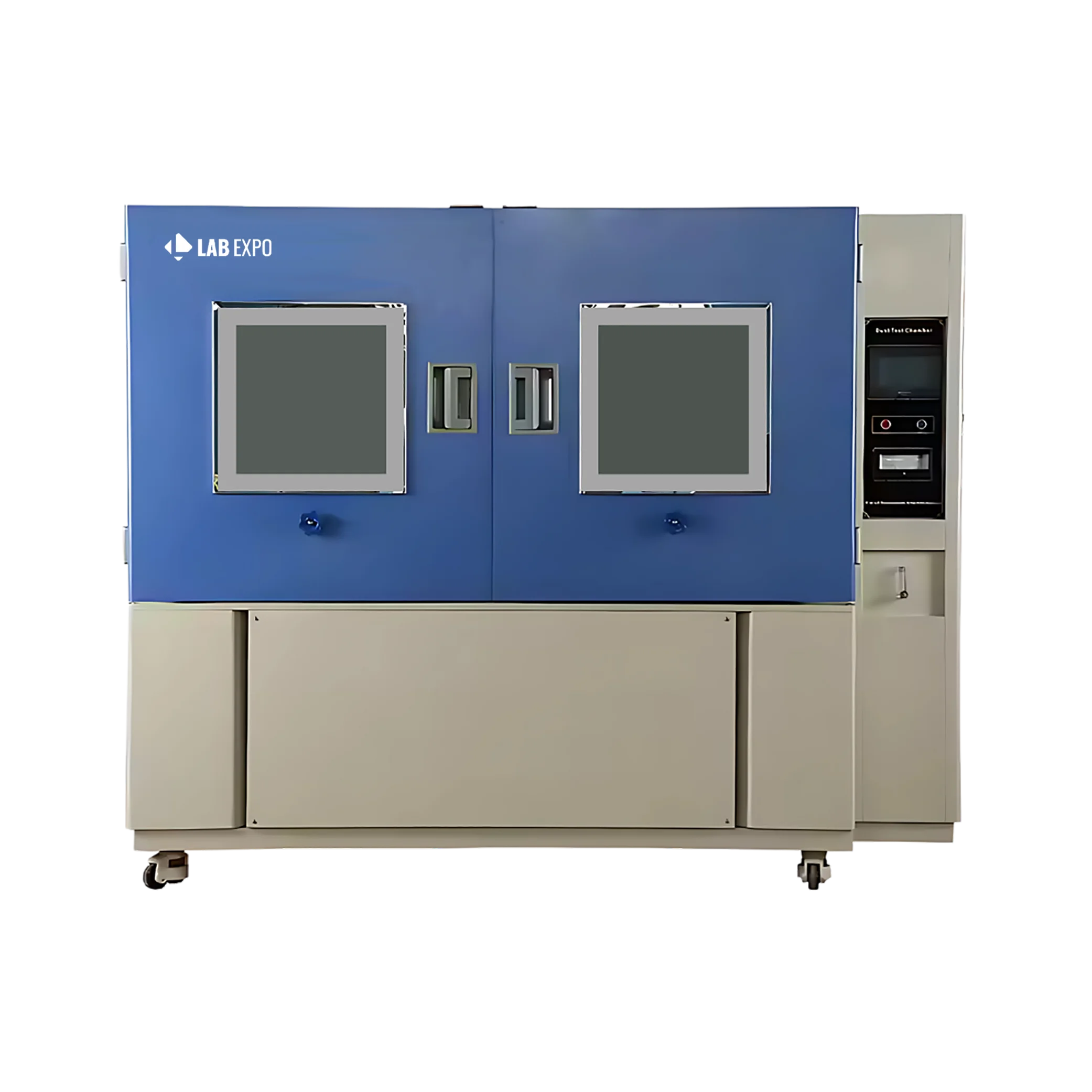

Sand and Dust Test Chamber 24-SDC103

Lab Expo Sand and Dust Test Chamber  24-SDC103 is a corrosion resistant sand test chamber that test the stability, quality, reactivity and characteristics of product against the sand and dust exposed environmental conditions. The test chamber is carefully designed as per the CE and ISO standards and provides protection against current leakage, overload, over-current, short circuit, over temperature, motor overheating, over pressure for safe and precise results.

$33,192.00 $ 27660

Sand and Dust Test Chamber 24-SDC103 - Specifications

Temperature range Ambient to + 50 ℃
Relative Humidity < 30 % RH
Normal wire diameter 50 um
Normal width of a gap between wire 75 um
The Talcum powder amount 2 kg to 4 kg / m3
Fight time 0 to 99 H 59 M
Fan cycle time 0 to 99 H 59 M
Specimen power outlet Dust-proof socket AC220V 16A
Vacuum system Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Circulating fan Enclosed alloy low-noise motor, multi-vane centrifugal fan
Heating system Independent Nichrome electronic heating system
Nominal power 9000 W
Power supply 380 V 50 Hz
Internal dimensions 1000 × 2000 × 1000 mm
Overall dimensions 1300 × 2400 × 1960 mm

Sand and Dust Test Chamber 24-SDC103 - Key Features

  • PID programmable controller with LCD touch screen display
  • Circulating fan system with enclosed alloy low-noise motor
  • Independent Nichrome heating system maintaining temperature range Ambient to +50C
  • Nominal power 900W operating on 380V 50Hz three-phase supply
  • Specimen power outlet dust-proof socket AC220V 16A rated capacity

Sand and Dust Test Chamber 24-SDC103 - Applications

FunctionImplementation
Quality control labsAmbient to +50 ℃ tests product stability under sand exposure
Dust resistance testing2 kg to 4 kg / m3 Talcum powder amount simulates environmental conditions
Electrical safety validationSpecimen power outlet Dust-proof socket AC220V 16A enables powered testing
Continuous operation cyclesFan cycle time 0 to 99 H 59 M supports extended test durations
Corrosive environment assessmentCorrosion resistant stainless steel material ensures long-term durability

Sand and Dust Test Chamber 24-SDC103 - Catalog

Sand and Dust Test Chamber 24-SDC103 Catalog

Related Sand and Dust Test Chamber

Lab Expo Sand and Dust Test Chamber enables controlled durability evaluation by simulating harsh particulate exposure with adjustable concentration and temperature regulation. Designed for sand and dust testing, it supports uniform sample coverage, efficient sand drying for reuse, and continuous operation. LCD-based control and corrosion-resistant build allow repeatable environmental testing across automotive, electronics, aerospace, and industrial quality control workflows.
