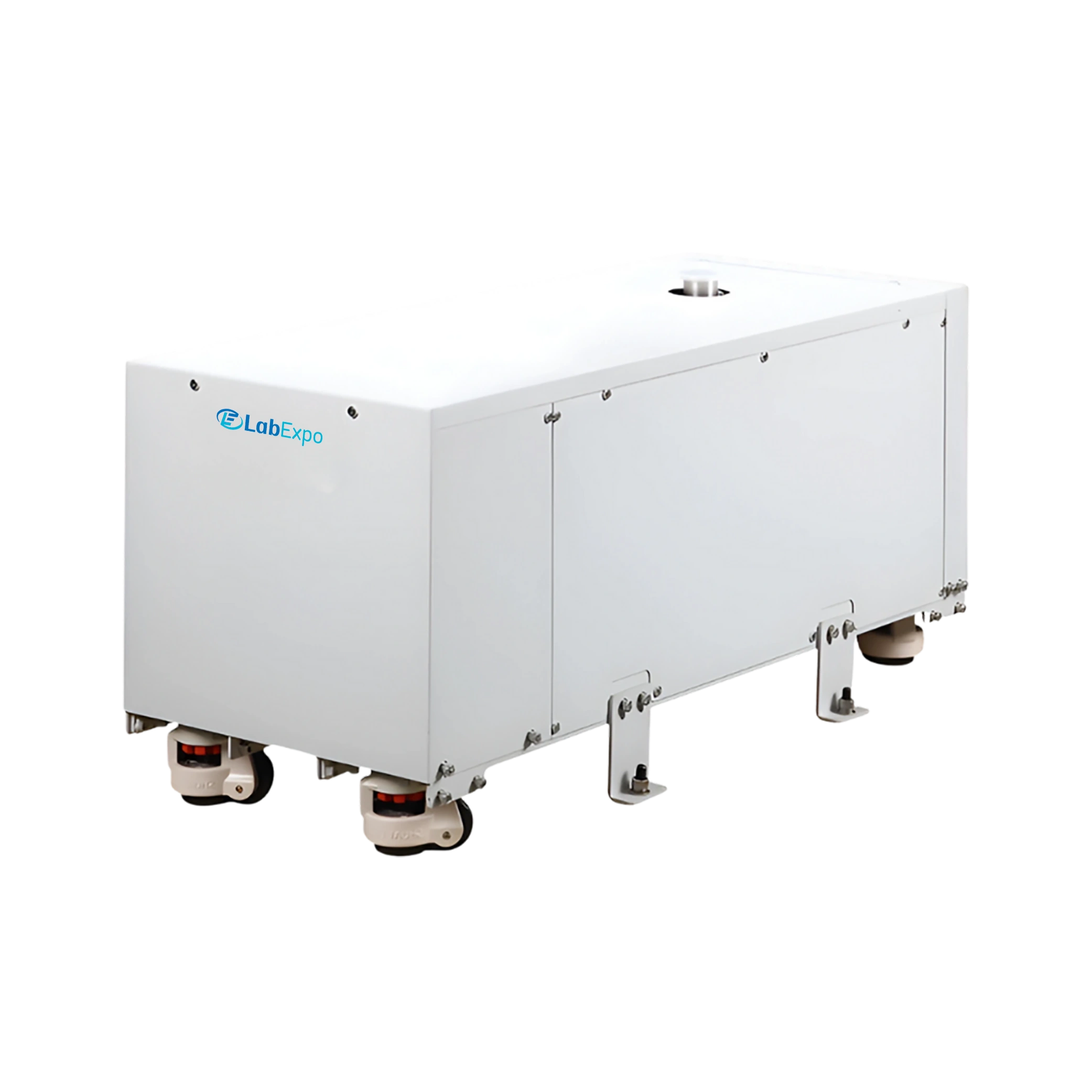

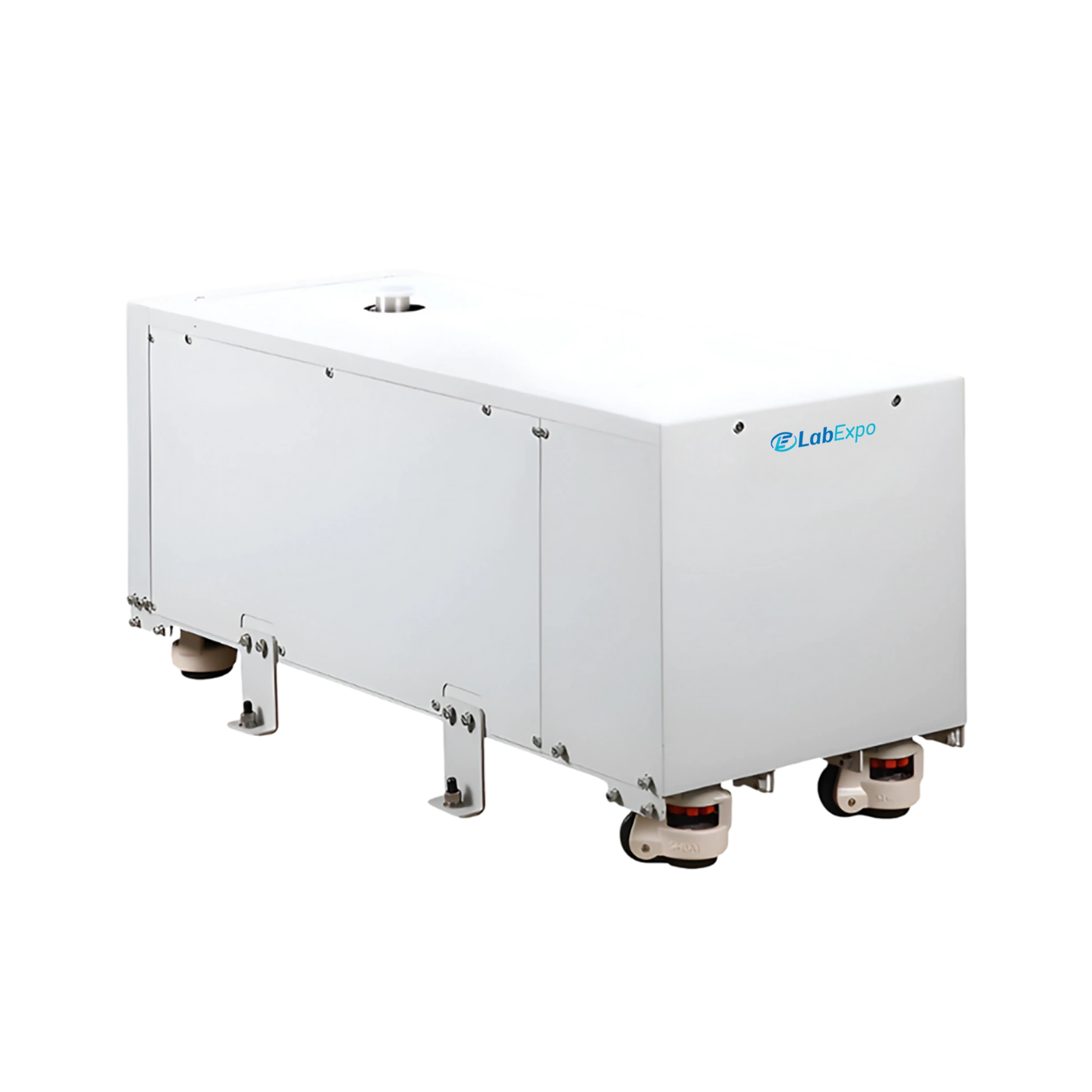

Lab Expo Screw Dry Vacuum Pump LE-SV101 offers reliable performance with a pumping speed of 120 m³/h. It delivers high ultimate pressure and comes with a 7.5 kW motor to handle heavy-duty operations. Equipped with a double-ended bearing support design, it ensures enhanced stability. Incorporated with corrosion-resistant materials, it can handle aggressive and reactive gases. Our Screw Dry Vacuum is ideal for distillation, freeze-drying, thin-film deposition, and other applications.
$13,032.00 $ 10860
| Pumping Speed | 120 m3/h |
| Motor Power | 7.5 kW |
| Ultimate Pressure | ≤5 × 10-1 Pa |
| Outlet Pressure | 1.4 × 10-1 MPa |
| Ambient Temperature | 5°C to 40°C |
| Noise | ≤ 70 dB |
| Cooling Water Flow | ≥ 4 L/min |
| Cooling Water Temperature | 5°C to 30°C |
| Purging Flow | 12 to 50 L/min |
| Inlet | KF40 |
| Outlet | KF40 |
| Power Supply | 380 to 400V |
| Dimension | 1300 × 550 × 900 mm |
| Weight | ~350 kg |
Function Implementation Distillation processes 120 m³/h pumping speed enables efficient vapor removal Freeze-drying operations ≤5 × 10⁻¹ Pa ultimate pressure supports deep vacuum requirements Thin-film deposition KF40 inlet and outlet ensure compatible system integration Aggressive gas handling Corrosion-resistant materials manage reactive process streams Continuous industrial use 7.5 kW motor power sustains heavy-duty operation cycles
Lab Expo Screw Dry Vacuum Pump provides oil-free, high-capacity vacuum generation with stable and continuous operation for industrial and laboratory applications. As a dry screw vacuum pump, it delivers quiet, efficient airflow with integrated cooling and precise process monitoring. Corrosion-resistant build and robust screw mechanisms ensure long service life, contamination-free operation, and precise performance for pharmaceutical, chemical, and semiconductor workflows.
