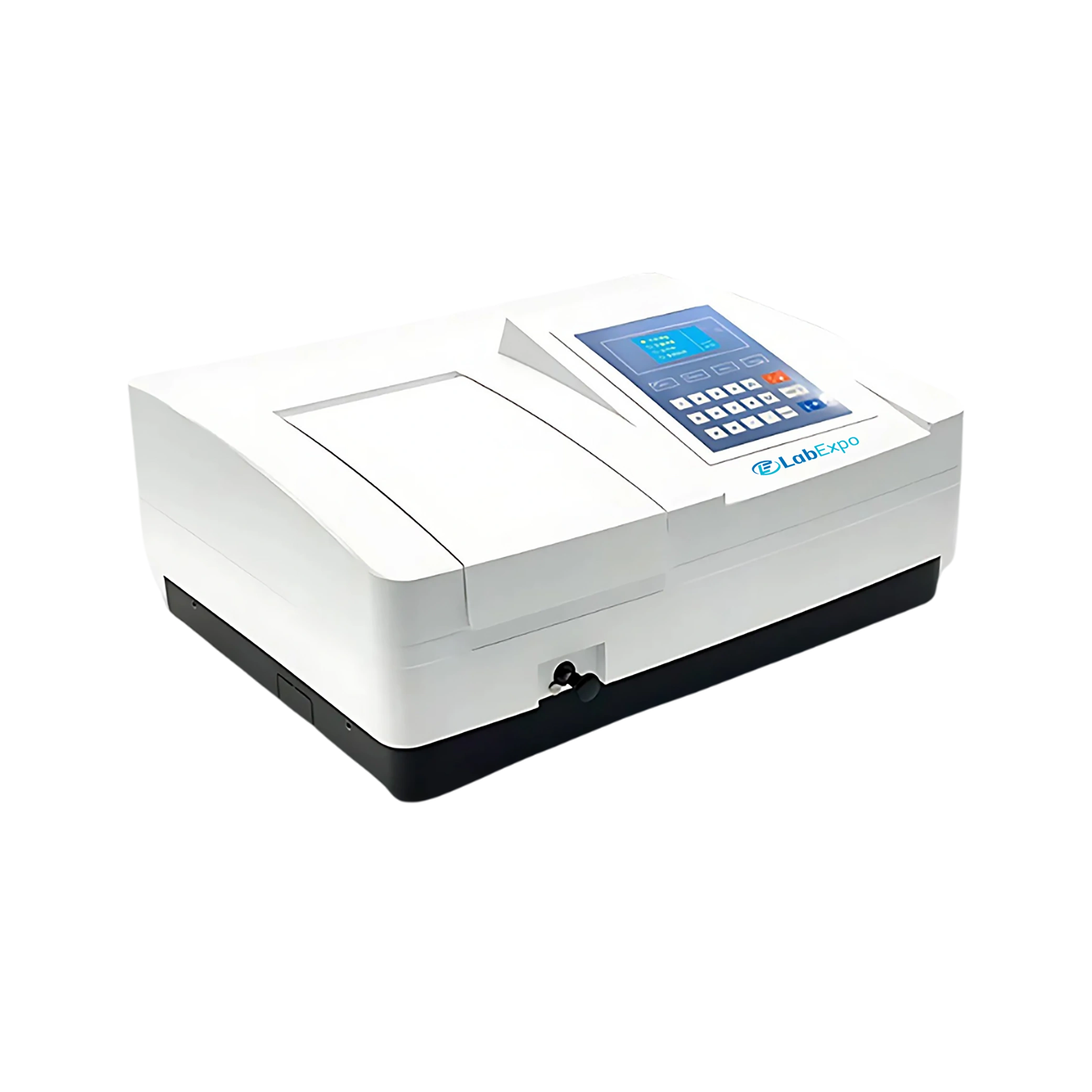

Single Beam UV Spectrophotometer LE-SBS103

Single Beam UV Spectrophotometer LE-SBS103

Lab Expo Single Beam UV Spectrophotometer LE-SBS103 with 1.8 nm bandwidth offers clear display of data and graphical results. It is integrated with die-cast aluminium optical base, ensuring reliable performance. Built-in advanced system supports spectrum scanning, standard curve creation and DNA/Protein test. Equipped with USB and parallel ports, enables easy data export to a computer for streamlined reporting. Our Spectrophotometer combines comprehensive analytical functions with user-friendly operation, suitable for diverse laboratory applications.

$5,611.00 $ 4676

Single Beam UV Spectrophotometer LE-SBS103 - Specifications

Optical System Single Beam
Wavelength Range 190 to 1100 nm
Bandwidth 1.8 nm
Wavelength Accuracy ±0.5 nm
Wavelength Repeatability ≤0.2 nm
Wavelength Setting Automatically
Photometric Accuracy ±0.3 %T (0-100%T)
Photometric Repeatability ≤0.1 %T
Photometric Range -0.3 to 3 A, 0 to 200% T, 0 to 9999 C
Stability ≥0.001 A/30 min at 500nm
Stray Light ≤0.05 %T at 220 nm and 360 nm
Display 320 × 240 Dots LCD
Detector Silicon Photodiode
Output USB Port & Parallel Port
Light Source Tungsten lamp and Deuterium lamp
Power Requirements AC 110 to 220 V

Single Beam UV Spectrophotometer LE-SBS103 - Key Features

  • Silicon photodiode detector with 0.5 nm resolution
  • Automatic wavelength setting with ±0.5 nm accuracy
  • Low stray light performance at ≤0.05 %T
  • Built-in memory for 100 data sets storage
  • Power saving mode reduces consumption by 30%

Single Beam UV Spectrophotometer LE-SBS103 - Applications

FunctionImplementation
Quality control labs±0.3 %T photometric accuracy supports repeatable analytical results
Clinical diagnostics190 to 1100 nm wavelength range enables broad assay compatibility
Research laboratories≤0.2 nm wavelength repeatability ensures consistent spectral measurements
Industrial testing≥0.001 A/30 min stability maintains measurement integrity over time
Educational institutionsUSB & parallel ports facilitate data export for streamlined reporting

Single Beam UV Spectrophotometer LE-SBS103 - Standard Accessories

  • 1cm Glass cuvette 4 pcs
  • 1cm Quartz cuvette 2 pcs
  • Power cord 1 pcs
  • Dust Cover 1 pcs

Single Beam UV Spectrophotometer LE-SBS103 - Optional Accessories

  • 10mm Single-position cell holder
  • Manual 10mm 4-position cell holder
  • 50mm/100mm Universal single-position cell holder
  • Manual 50mm/100mm Universal 4-position cell holder
  • Automatic 10mm 8-position cell holder
  • Manual 10mm 8-position cell holder
  • 10mm single-position water jacketed ambient cell holder
  • Adjustable cell holder for micro cuvettes
  • Transparent film holder
  • Test tube holder
  • Peltier system
  • Sipper system
  • Peltier & Sipper system
  • Reflectance Attachment
  • Tungsten lamp
  • Deuterium lamp

Single Beam UV Spectrophotometer LE-SBS103 - Catalog

Single Beam UV Spectrophotometer LE-SBS103 Catalog

Related Single Beam UV Spectrophotometer

Lab Expo Single Beam UV Spectrophotometer units are designed for absorbance and wavelength analysis in chemical, pharmaceutical, and educational applications. Models support single beam spectroscopy with wavelength ranges from 190 to 1100 nm, 1200 lines/mm grating optics, and precise single beam spectrometer measurement.
