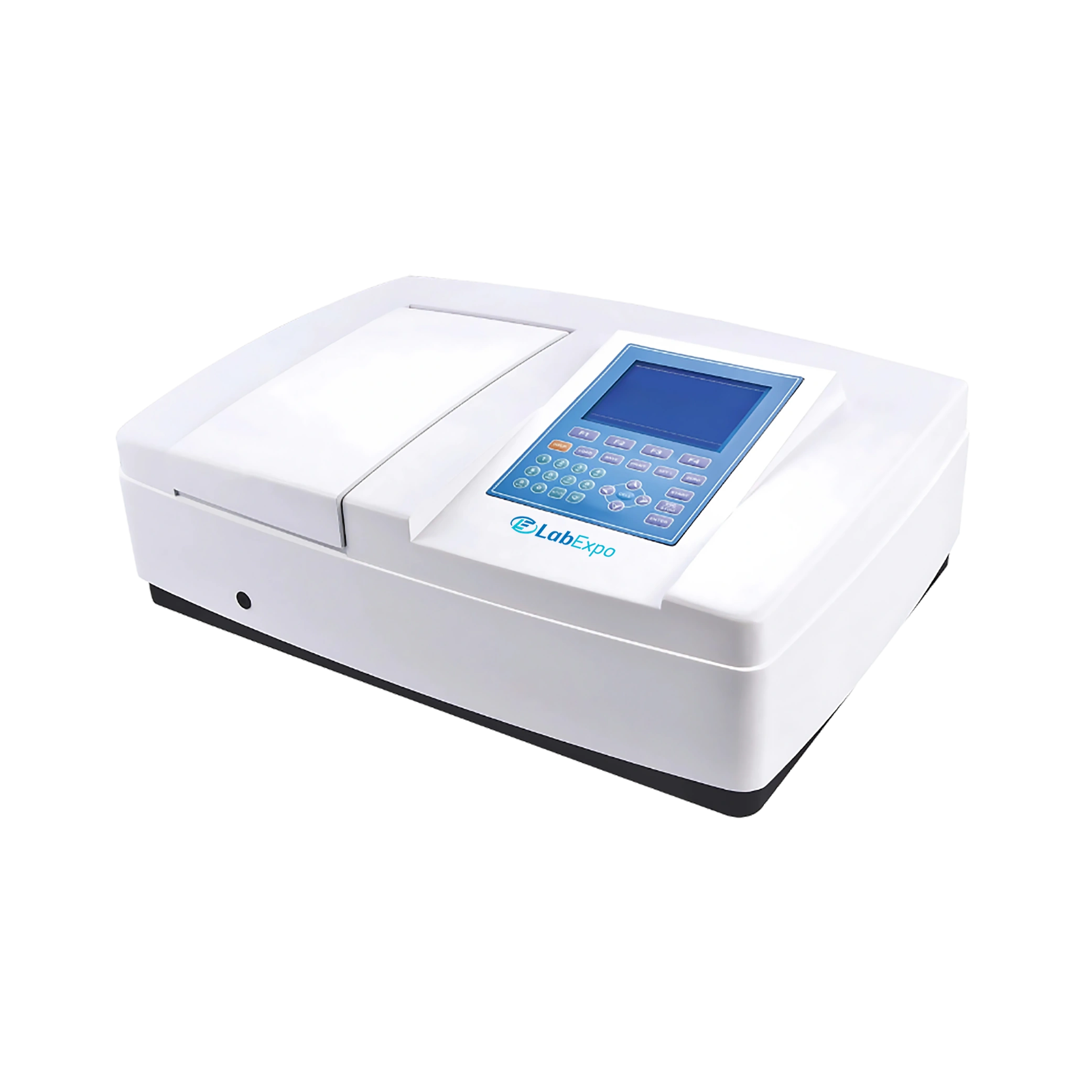

Single Beam UV Spectrophotometer LE-SBS104

Single Beam UV Spectrophotometer LE-SBS104

Lab Expo Single Beam UV Spectrophotometer LE-SBS104 with 1.8 nm bandwidth and wavelength resolution for precise analysis. It features an advanced stand-alone system and DNA/Protein testing, all viewable directly on the device. Built-in rigid die-cast aluminium optical base, ensures outstanding stability. Equipped with a one-button automatic calibration system for optimal performance. Our Spectrophotometer includes USB and parallel ports for data export, and robust PC software for analytical applications in labs.

$6,576.00 $ 5480

Single Beam UV Spectrophotometer LE-SBS104 - Specifications

Optical System Single Beam
Wavelength Range 190 to 1100 nm
Bandwidth 1.8 nm
Wavelength Accuracy ±0.5 nm
Wavelength Repeatability ≤0.2 nm
Wavelength Setting Automatically
Photometric Accuracy ±0.3 %T (0-100%T)
Photometric Repeatability ≤0.1 %T
Photometric Range -0.3 to 3 A, 0 to 200% T, 0 to 9999 C
Stability ≥0.001 A/30 min at 500nm
Stray Light ≤0.05 %T at 220 nm and 360 nm
Display 320 × 240 Dots LCD
Detector Silicon Photodiode
Output USB Port & Parallel Port
Light Source Tungsten lamp and Deuterium lamp
Power Requirements AC 110 to 220 V

Single Beam UV Spectrophotometer LE-SBS104 - Key Features

  • Energy saving mode with automatic power reduction
  • Standard curve creation using linear regression analysis
  • High-definition lcd display 320x240 dots resolution
  • User-friendly interface with one-button calibration
  • Noise Reduction Algorithms for signal enhancement

Single Beam UV Spectrophotometer LE-SBS104 - Applications

FunctionImplementation
Quality control labs±0.5 nm wavelength accuracy supports consistent sample verification
Clinical analysis190 to 1100 nm wavelength range enables broad assay compatibility
Research facilities≤0.2 nm wavelength repeatability ensures precise spectral data
Industrial testing≥0.001 A/30 min stability at 50nm maintains measurement integrity
Educational institutionsUSB & parallel ports facilitate data export for lab reporting

Single Beam UV Spectrophotometer LE-SBS104 - Standard Accessories

  • PC software 1 set
  • 1cm Glass cuvette 4 pcs
  • 1cm Quartz cuvette 2 pcs
  • Power cord 1 pcs
  • Dust cover 1 pcs

Single Beam UV Spectrophotometer LE-SBS104 - Optional Accessories

  • 10mm Single-position cell holder
  • Manual 10mm 4-position cell holder
  • 50mm/100mm Universal single-position cell holder
  • Manual 50mm/100mm Universal 4-position cell holder
  • Automatic 10mm 8-position cell holder
  • Manual 10mm 8-position cell holder
  • 10mm single-position water jacketed ambient cell holder
  • Adjustable cell holder for micro cuvettes
  • Transparent film holder
  • Test tube holder
  • Peltier system
  • Sipper system
  • Micro thermo printer
  • Peltier & Sipper system
  • Reflectance Attachment
  • Tungsten lamp
  • Deuterium lamp

Single Beam UV Spectrophotometer LE-SBS104 - Catalog

Single Beam UV Spectrophotometer LE-SBS104 Catalog

Related Single Beam UV Spectrophotometer

Lab Expo Single Beam UV Spectrophotometer units are designed for absorbance and wavelength analysis in chemical, pharmaceutical, and educational applications. Models support single beam spectroscopy with wavelength ranges from 190 to 1100 nm, 1200 lines/mm grating optics, and precise single beam spectrometer measurement.
