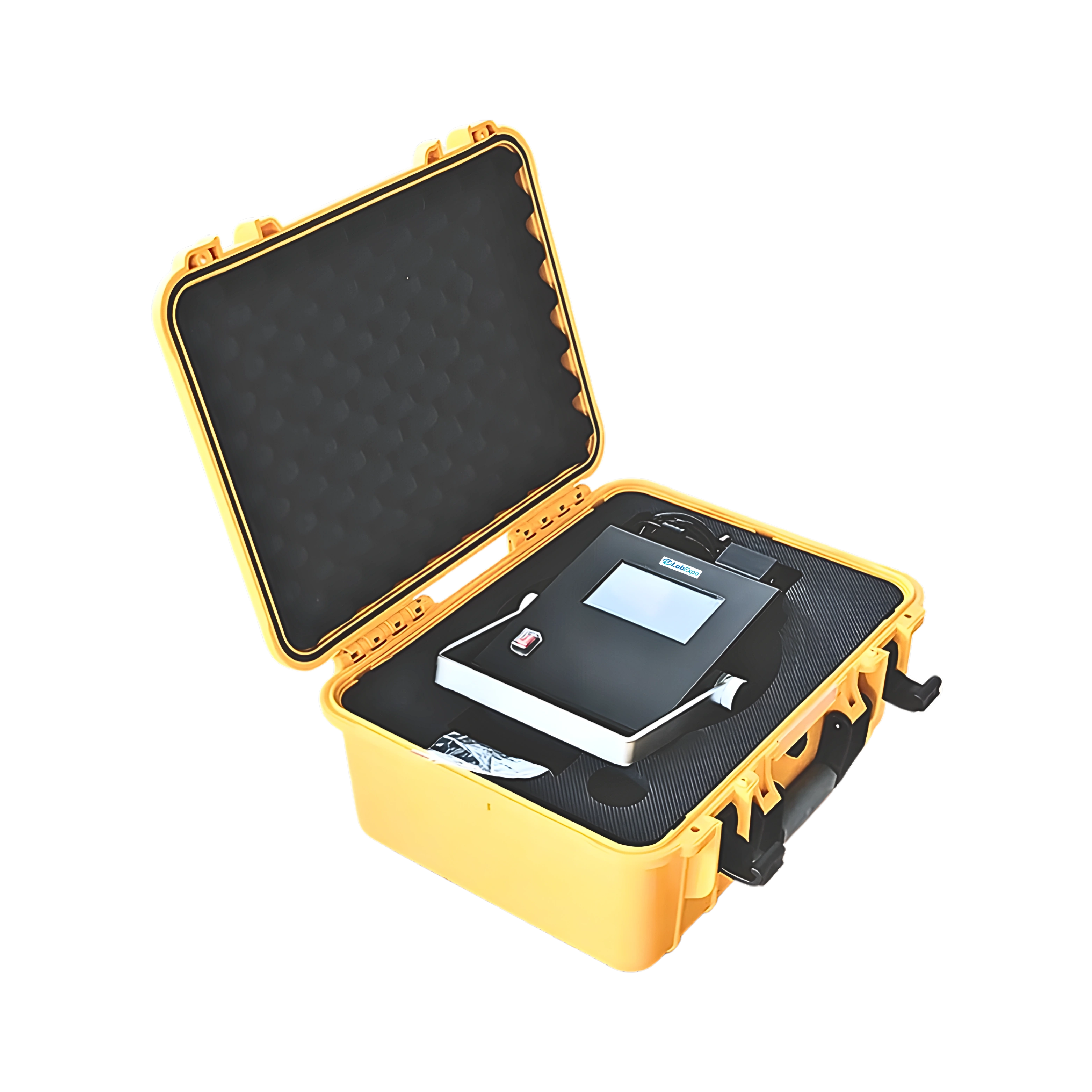

Product5

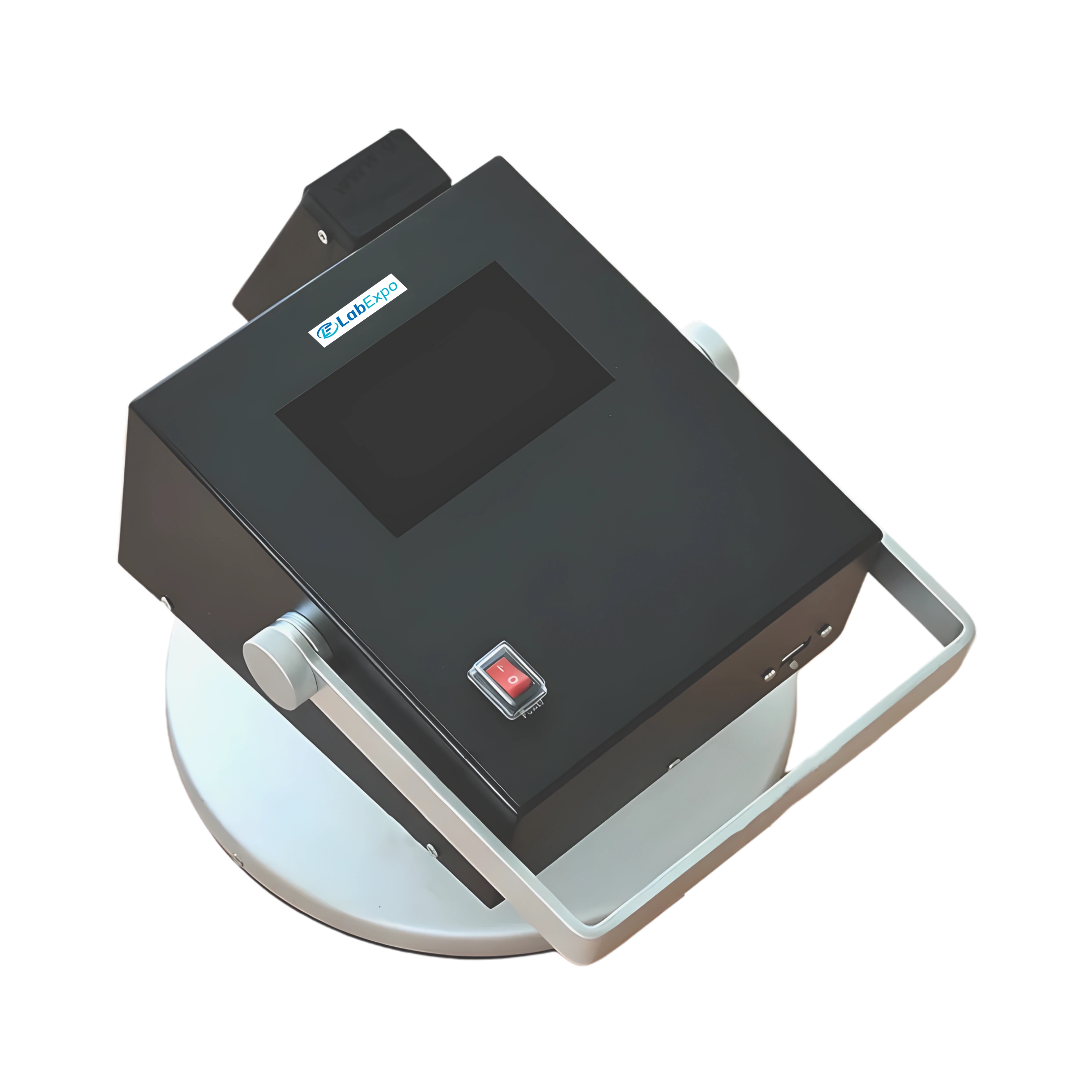

Product6

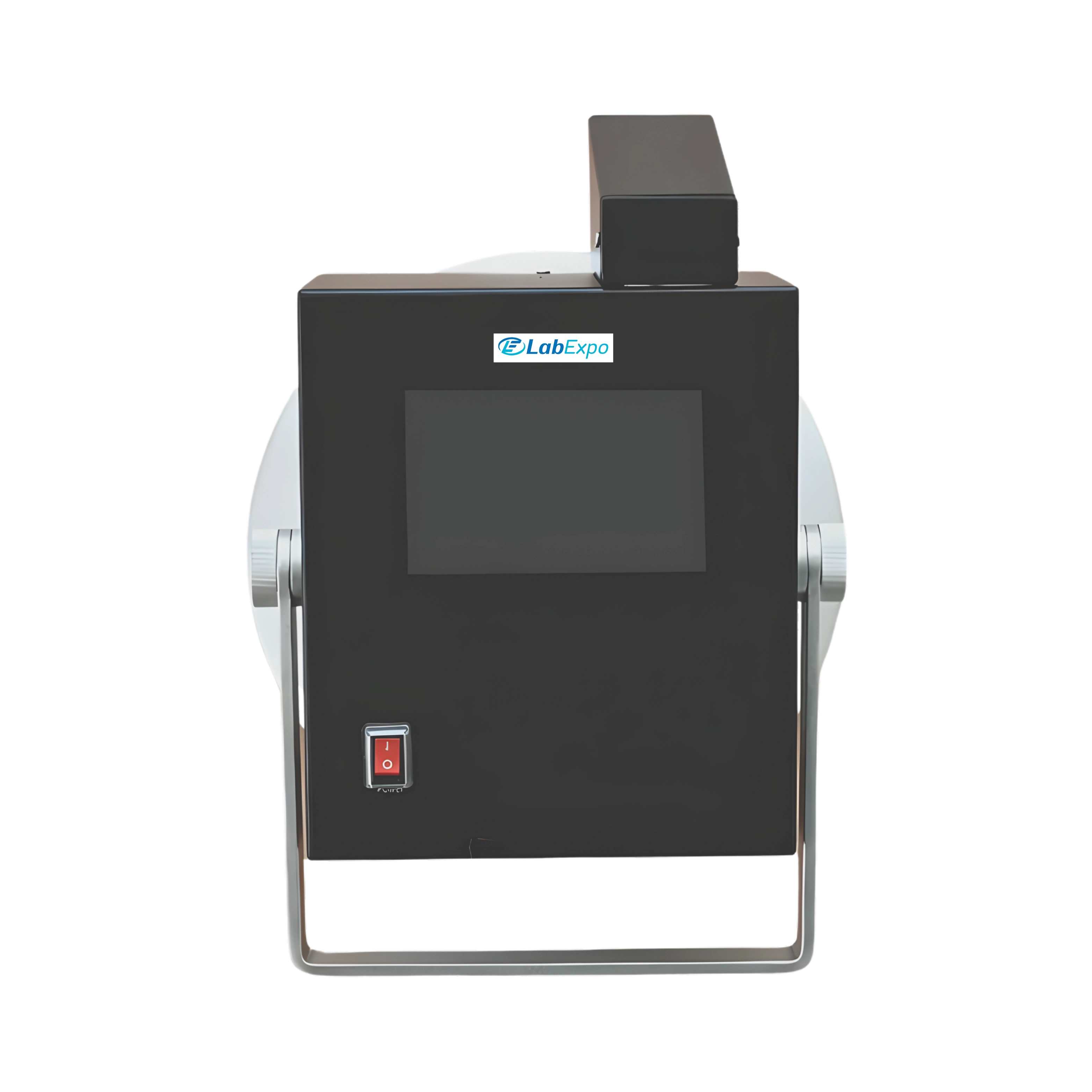

Soil Density Gauge 50-SDG100

Lab Expo Soil Density Gauge 50-SDG100 provides accurate soil density and moisture measurements at depths ranging from 50 to 300mm. It operates at a low-frequency range of 40 to 100K, utilizing radiation-free technology for safe, accurate soil analysis with no environmental impact. It collects electronic signals from at least three test points, improving accuracy. It is equipped with optional GPS and allows precise location tracking of test points, ensuring consistent data.

$8,822.00 $ 7352

Soil Density Gauge 50-SDG100 - Specifications

Measuring Depth 50 to 300mm
Electromagnetic Frequency 40 to 100K, Low frequency radiationless
Wet Density Range Standard compacted soil field range
Dry Density Accuracy Within 3% of standard tests
Humidity Range Standard compacted soil field range
Humidity Accuracy Within 3% of standard tests
Environment Temperature -20°C to 50°C
Temperature Compensation Yes
Storage Capacity 4200 engineering test sites, 24 soil models
Ambient Humidity 5% to 90%
Display 5.0-inch display
Interaction Touch Screen
GPS Standard configuration
Battery 10400mAh Lithium-ion rechargeable battery
Wireless Data Transmission Optional configuration
Report Export Method Install PC data export software and actuate
Special Functions Nondestructive measurement
Battery Life >12h (Medium backlight condition)
Charge Mode USB 5V recharge
Main Engine Size 270mm × 270mm × 280mm
Net Weight 3.0kg

Soil Density Gauge 50-SDG100 - Key Features

  • Soil Model Creation with 24 soil models storage capacity
  • Electronic Data Collection via 5.0-inch touch screen display
  • Physical Data Integration through USB 5V rechargeable battery system
  • Wide Data Coverage from 4200 engineering test sites memory
  • Field Testing Capability at -20C to 50C environment temperature range
  • Real-Time Soil Analysis using electromagnetic frequency 40 to 100K

Soil Density Gauge 50-SDG100 - Applications

FunctionImplementation
Soil density testing50 to 300mm measuring depth enables field compaction analysis
Moisture content assessmentHumidity accuracy within 3% supports reliable field readings
Extended site surveysBattery life >12h allows prolonged operational use
Geospatial data loggingStandard GPS configuration enables precise test point tracking
Wireless field reportingOptional wireless transmission facilitates remote data transfer
