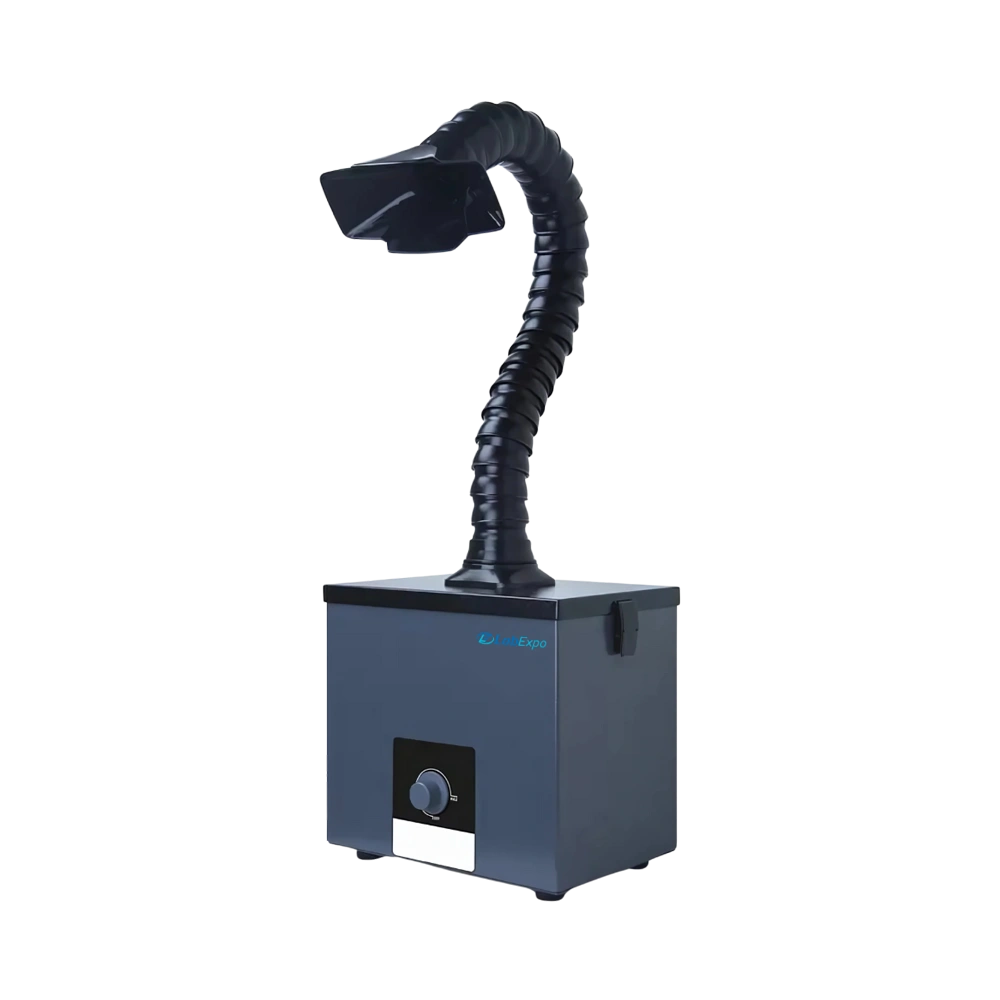

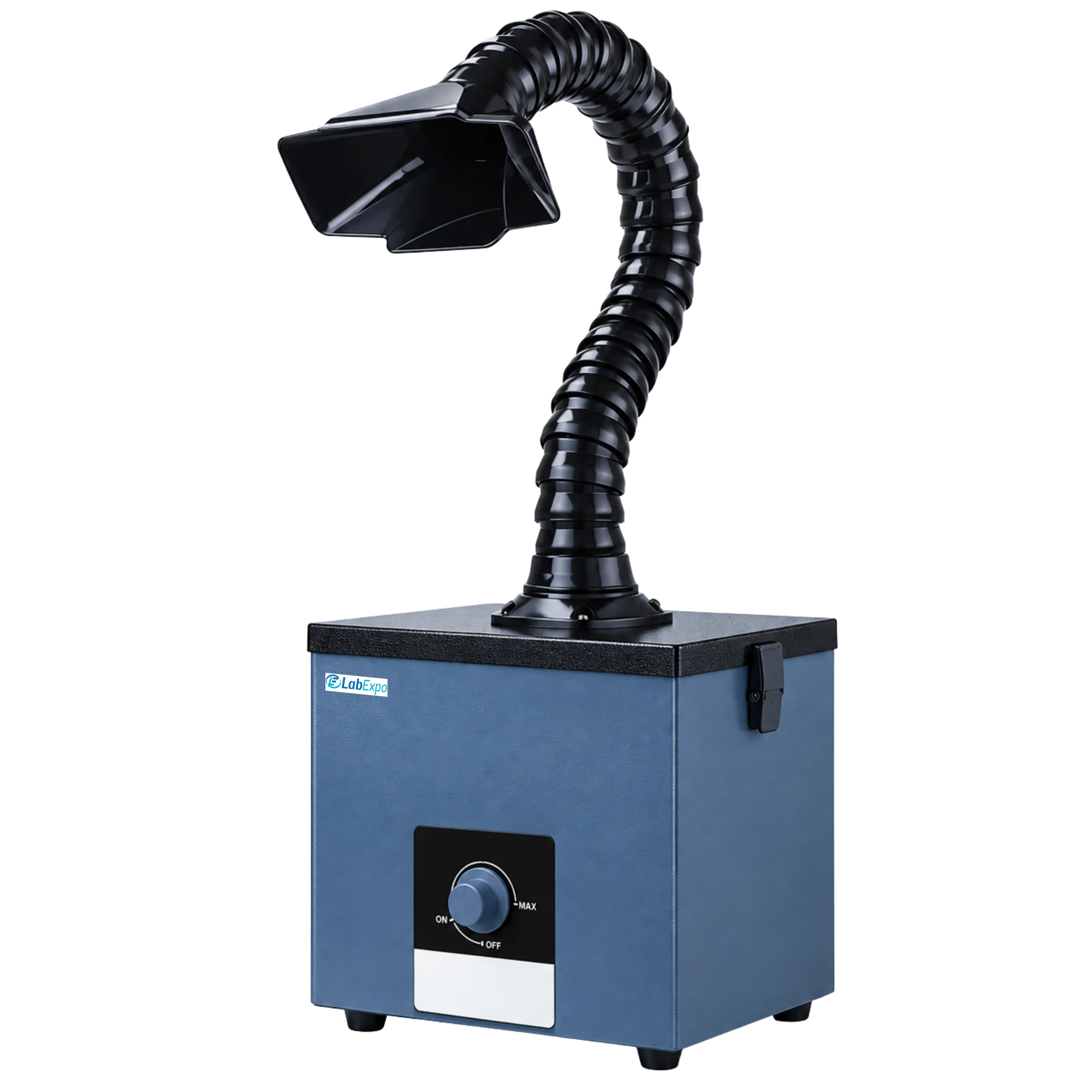

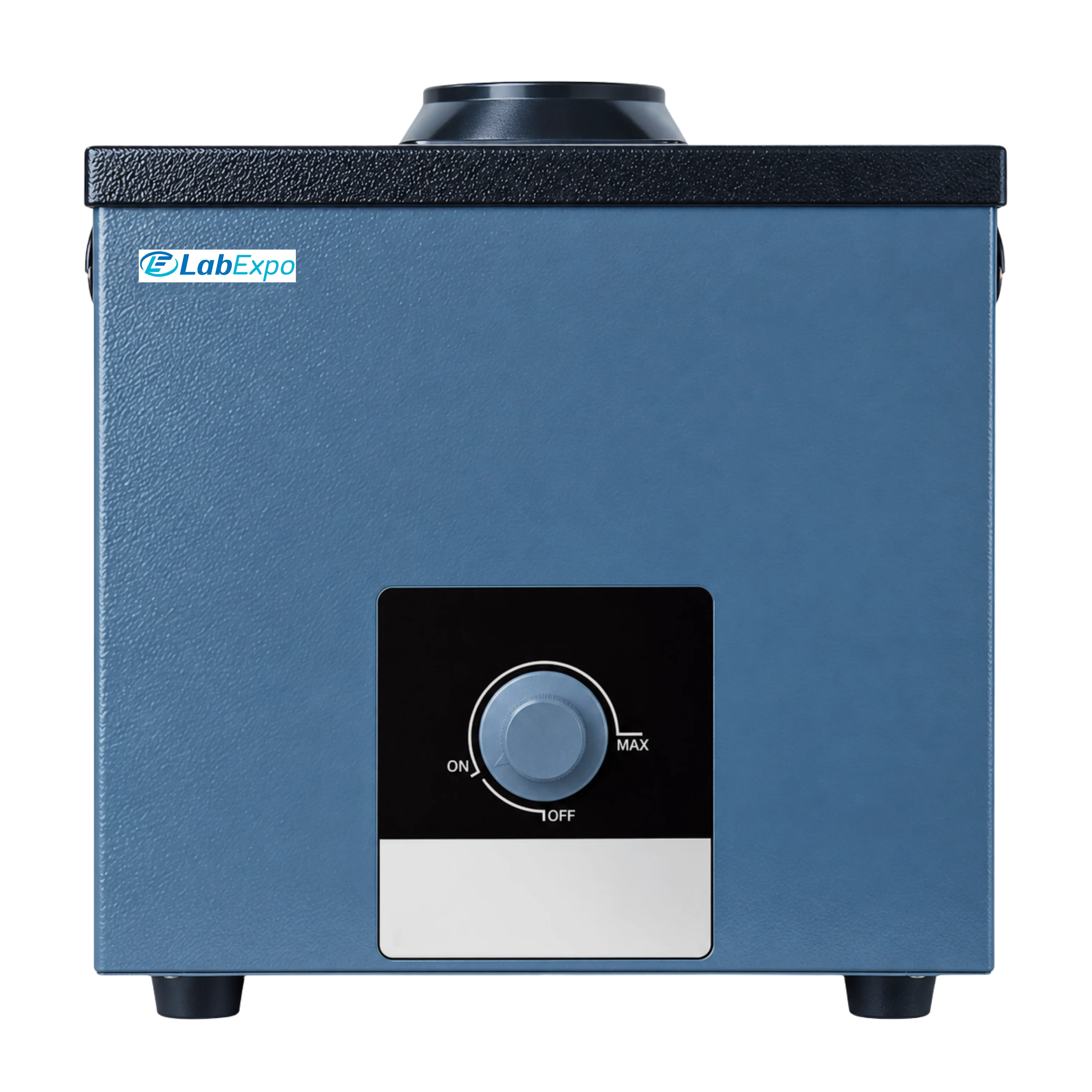

Soldering Fume Extractor LE-FE102 is a compact air purification system with 95.99% filter efficiency at 0.3μm. It offers a simple knob switch with stepless speed regulation and precise airflow adjustment. Equipped with a DC pure copper brushless motor for stable performance and strong suction. Integrated with a dual-layer tower filtration system that removes harmful smoke and particles. Our Fume Extractor is ideal for small laser engraving, silk screen printing, rosin welding, and tin melting furnaces.
$1,421.00 $ 1184
| Filtering Efficiency | 95.99% efficiency at 0.3 µm |
| Noise | Less than 55 dB |
| Cover type | Square silicone cover |
| Colour | Black |
| Air Velocity | 160 m³/h |
| Length of Duct | ∅50 mm × 0.75 m |
| Power Supply | 220 V 50 Hz |
| Power Consumption | 80 W |
| Dimension | 286 × 115 × 275 mm |
| Weight | 7 Kg |
Function Implementation Small labs 80 W powers compact air purification Industrial workshops 160 m³/h air velocity enables efficient fume removal Electronics manufacturing 95.99% efficiency at 0.3 µm filters harmful particles Research facilities Less than 55 dB noise level supports quiet operation Quality control labs 220 V 50 Hz power supply stabilizes consistent performance
Primary filter
Main filter
1: What is the LE-FE102 Soldering Fume Extractor used for?
LE-FE102 is designed for extracting fumes in tasks like laser engraving, silk screen printing, rosin welding, tin melting, and electronics repair, ensuring a safer workspace.
2: What kind of filtration system does it have?
This model utilizes a dual-layer tower filtration system to remove harmful fumes and particulate matter effectively.
3: What applications is this fume extractor suitable for?
It is ideal for use in small laser engraving, silk screen printing, rosin welding, and tin melting furnaces.
4: How often is there a need to replace the filters?
Filter replacement frequency depends on usage intensity, but it is recommended to check regularly for reduced suction or airflow.
5: Is the LE-FE102 suitable for portable use?
Yes, it features a compact footprint, ESD-safe construction, adjustable airflow direction, and a portable handle, making it ideal for both industrial and DIY environments.
Lab Expo Soldering Fume Extractor supports localized air purification where effective capture of solder smoke, particulates, and vapors is required at the source. The system operates with multi-stage filtration, combining particulate capture and activated carbon adsorption to treat process emissions. Flexible extraction arms enable precise positioning, while quiet airflow supports continuous operation. Compact build and accessible filter maintenance ensure controlled, repeatable fume removal for electronics assembly and rework environments.
