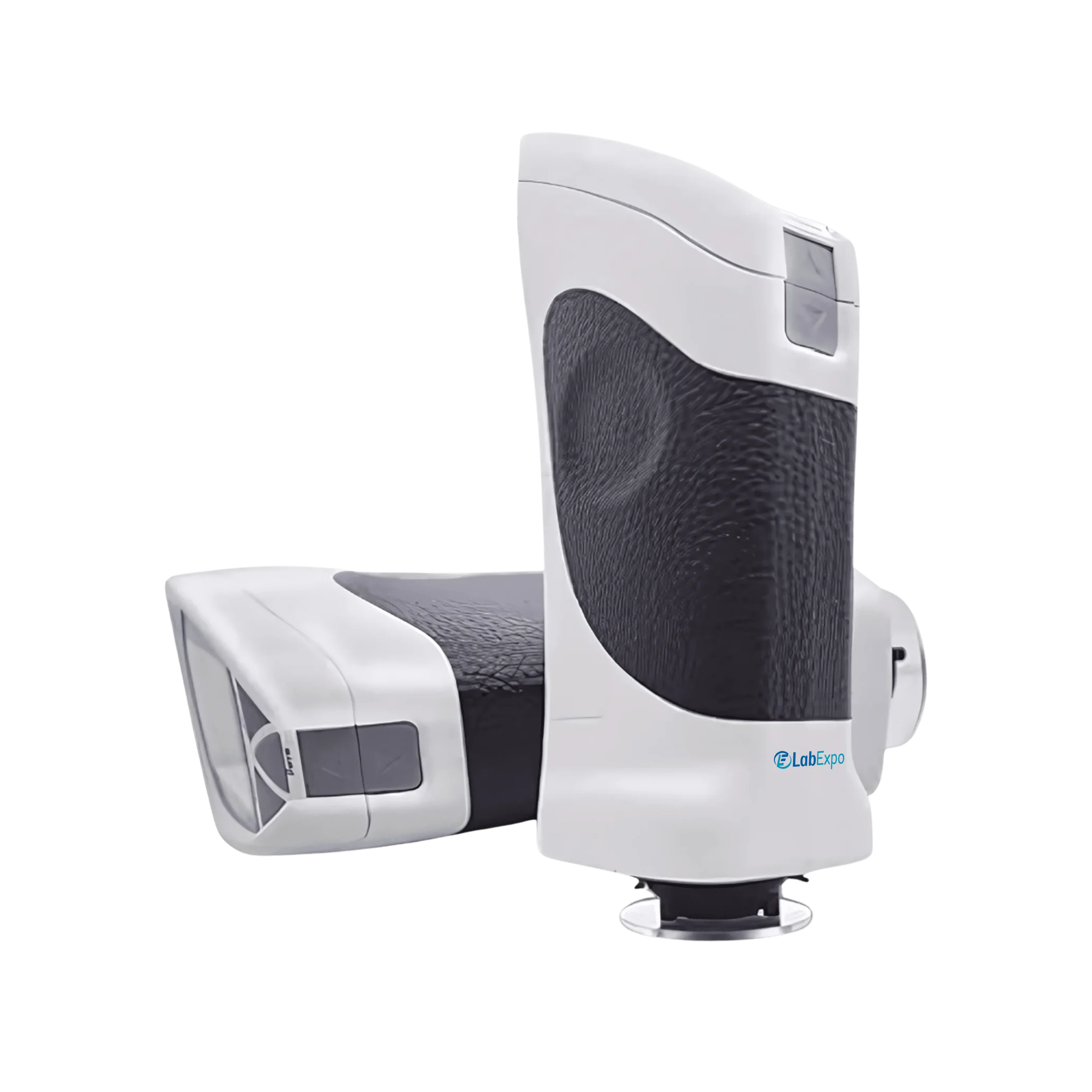

Spectral Colorimeter 33-SCM101 with high precision is adopted with spectral measurement working theory which greatly improves the accuracy of colorimeter. Equipped with superior leather design, helps in increasing the friction in case of fingers sliding. The spectral colorimeter comes with mass storage capacity and A, C, D65, D50 as light sources for colorimetric measurement.
$2,098.00 $ 1748
Specifications
| Illumination | Di / 8 (diffusion illumination, 8° viewing), SCI |
| Size of integrated sphere | 40 mm, alvan diffused reflection surface coating |
| Illumination light source | CLED |
| Sensor | Sensor array |
| Wavelength | 400 to 700 nm |
| Spectral resolution | 10 nm |
| Measuring time | 2 s |
| Measurement caliber size | 11 mm |
| Optional measurement caliber size | 4 mm, 6 mm, 15 mm |
| Repeatability | Standard deviation ΔE × ab 0.08 (when a white calibration plate is measured 30x at 10 second interval after calibration) |
| Observe angles | 2° and 10° |
| Light source | A,C,D50 & D65 |
| Camera attachment | With camera to see the measurement area |
| Display | Chromaticity value（L × a × b，L × C × h）, ΔE value, pass / fail, color tendency, average, generate test report |
| Color difference formula | ΔE × ab, ΔE × CH |
| Color space | CIE-L × a × b,L × C × h,XYZ,Yxy,reflectance |
| Measurement indices | WI (whiteness indices) (ASTM E313-10,ASTM E313-73，CIE/ISO，AATCC，Hunter，Taube Berger，Ganz，Stensby) YI (yellowness indices) (ASTM D1925，ASTM E313-00,ASTM E313-73) |
| Data storage | 100 targets and 200 samples |
| Light source lifetime | 5 years, 1.5 million times |
| Screen | Panchromatic True Color Screen |
| Interface | USB 2.0 |
| Working temperature | 5 to 45 °C, relative humidity 80 % or below (at 35 °C), no condensation |
| Storage temperature | (-25 to 55 °C), relative humidity 80 % or below( at 35 °C ),no condensation |
| Power | Rechargeable Lithium battery, 8.4 V / 2000 mAh, adaptor DC 12 V |
| Dimension | 77 × 86 × 210 mm |
| Weight | 550 g |
Features
Applications
Function Implementation Colorant Formulation Labs ±0.08 standard deviation ensures consistent colorant formulation Textile Quality Control Hubs 2-second measuring time supports rapid textile inspection Leather Finishing Operations 400 to 700 nm wavelength range accommodates diverse leather colors Plastic Film Production Lines 10 nm spectral resolution enables precise plastic film color analysis Paint Coatings Development Centers 100 target storage capacity facilitates efficient paint coatings development
Standard Accessories
Adapter, color management software, USB cable, black/white calibration tube, protective cover, portable bag, electronic cable charts
Optional Accessories
Micro printer
Lab Expo Spectral Colorimeter supports precision color measurement workflows where spectral accuracy and repeatable data capture are required for quality evaluation and analysis. This spectral colorimeter operates with multi-source diffused illumination and defined viewing geometry to maintain consistent colorimetric results. Digital controls manage calibration, measurement, and data grouping, while onboard display and USB data transfer ensure controlled operation and precise color analysis for routine laboratory and industrial use.
