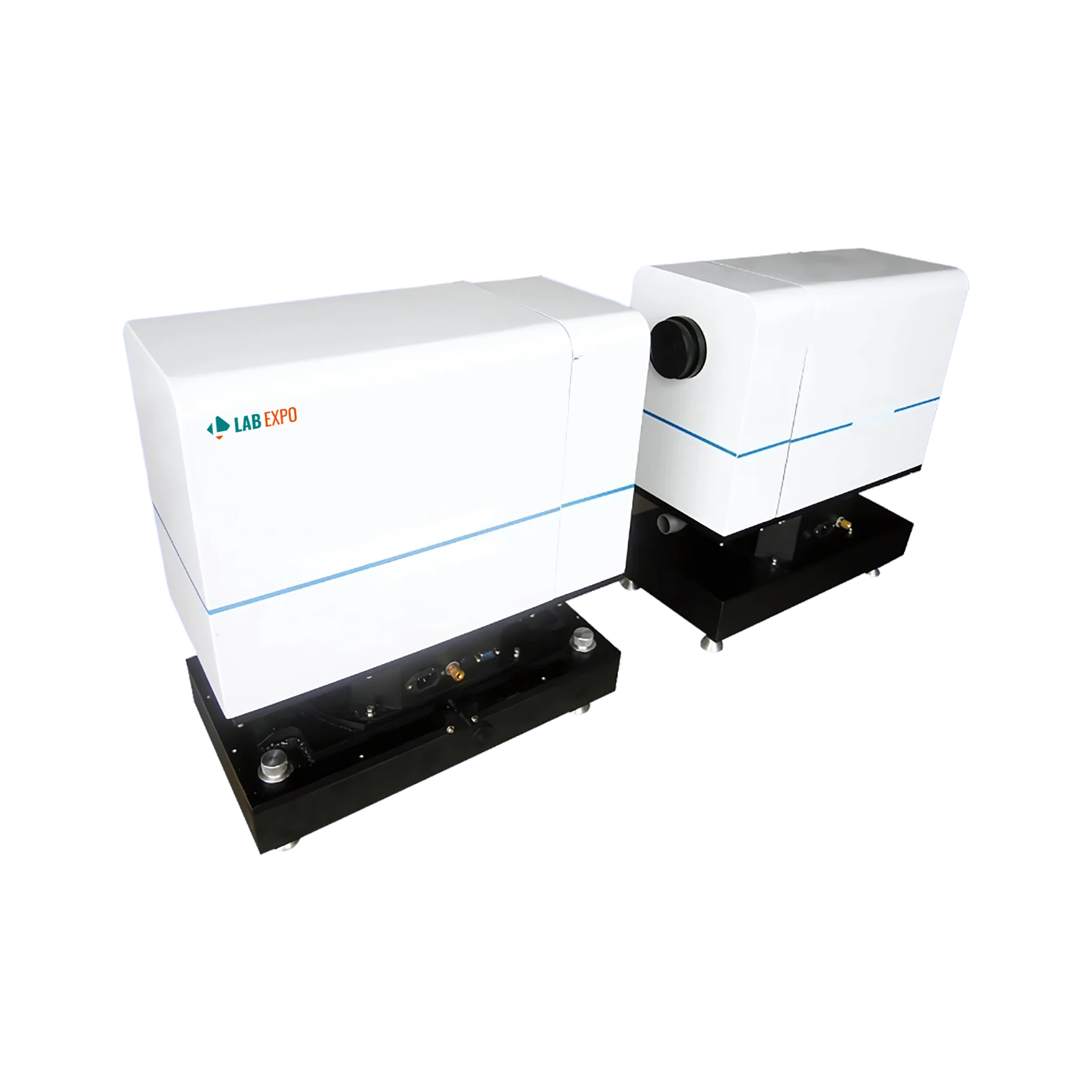

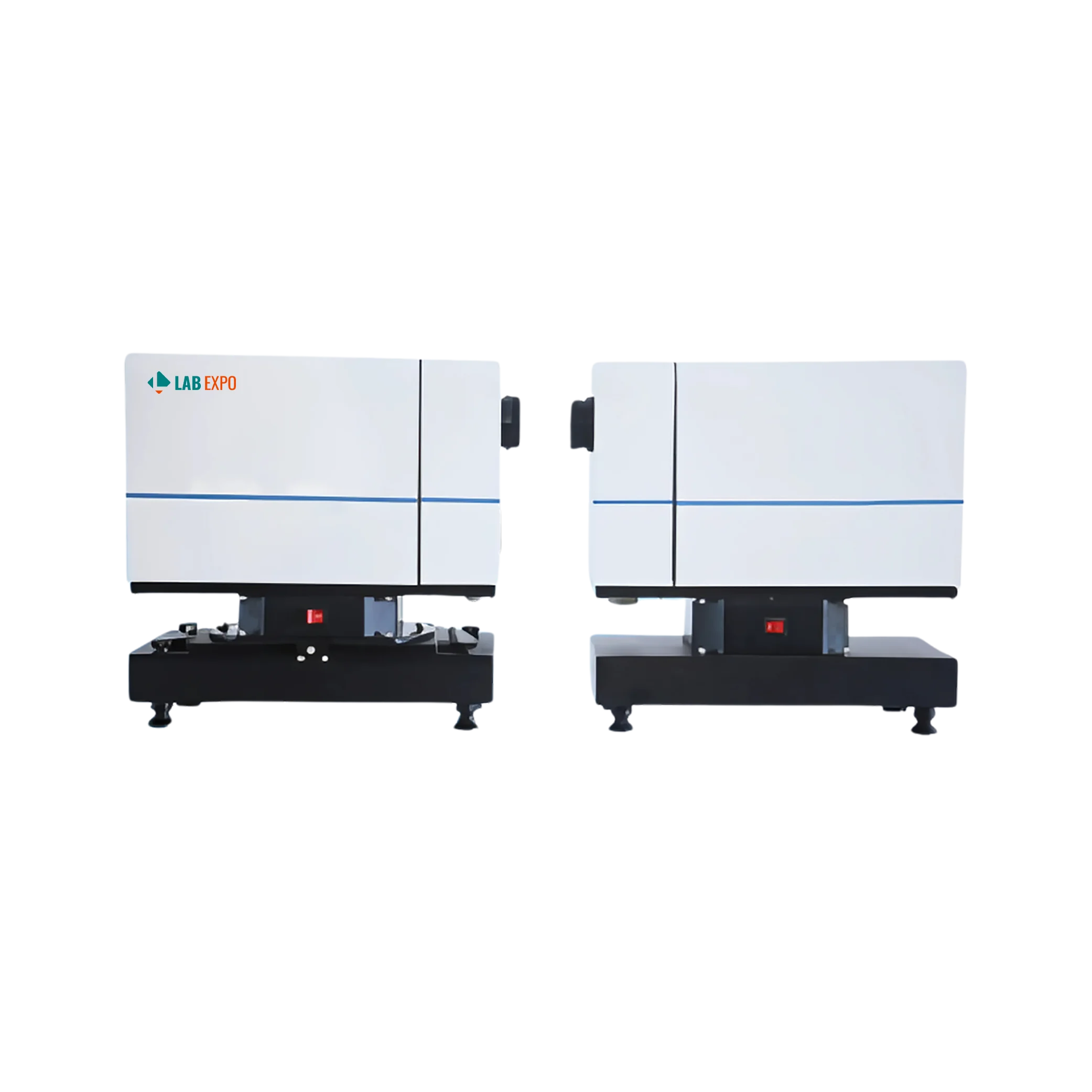

Lab Expo Spray particle size analyzer 50-SPA100 is an accurate bench top spray particle size analyzer that adopts Fraunhofer of scalar diffraction principle and parallel light path design for measuring over 1 - 2000 μm particle size range. With split-type structure design, it is well equipped with high performance and high power laser, airflow protection device and stable automatic optical path alignment system.
$33,696.00 $ 28080
| Measuring range | 1 μm - 2000 μm |
| Principle | Fraunhofer light diffraction |
| Spray area range | 1 - 10 m |
| Structure | Split-type |
| Executive standard | ISO13320 - 1 : 1999 |
| Sample type | Droplet |
| Laser | LD pump laser, 532 nm |
| Detector | Photoelectric |
| Number of channel | 58 pcs. |
| Sample introduction | open |
| Lens protection | Double air curtains |
| Adjusting range | a:3:{s:17:"Horizontal moving";s:8:"± 20 mm";s:7:"Lifting";s:8:"± 20 mm";s:8:"Rotation";s:7:"± 20°";} |
| Accuracy error | < 3% |
| Reproducibility error | < 3% |
| Software running | Win XP/Win 7 |
| Dimension | 369 x 295 x 360 mm |
Function Implementation Quality control labs 1 - 2000 μm measuring range supports droplet size verification Research facilities ±3% accuracy error ensures reproducible particle analysis Industrial testing areas Spray area range of 1 - 10 m enables flexible setup positioning Clinical evaluation units Photoelectric detector processes droplet samples efficiently Pharmaceutical development Double air curtains protect lens during continuous operation
