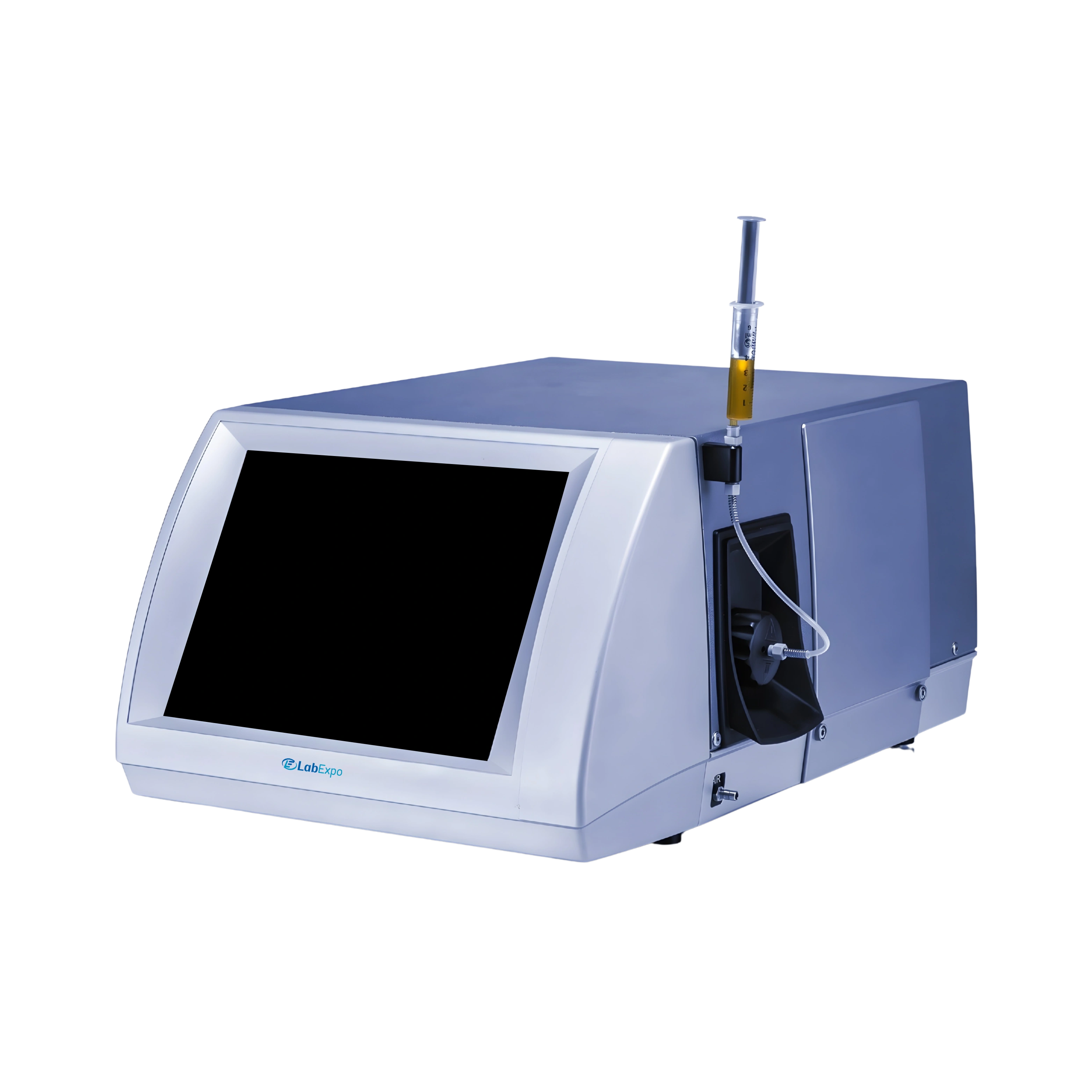

Lab Expo Viscometer LE-SVM100 offers a wide temperature range from –60°C to +135°C. It features a broad viscosity range from 0.2 mm²/s to 30,000 mm²/s, supporting varied testing requirements. Equipped with a 10.4" touchscreen along with optional keyboard mouse and barcode reader for flexible operation. Our Viscometer is suitable for automated unattended measurements ensuring seamless and versatile operation.
$150,120.00 $ 125100
| Temperature Range | –60°C to +135°C |
| Viscosity Range | 0.2 mm²/s to 30,000 mm²/s |
| Density Range | 0 to 3 g/cm³ |
| Viscosity Repeatability | 0.10% |
| Viscosity Reproducibility | 0.35% |
| Density Repeatability | 0.0002 g/cm³ |
| Density Reproducibility | 0.0005 g/cm³ |
| Temperature Repeatability | 0.005°C |
| Temperature Reproducibility | 0.03°C (15°C to 100°C) |
| Sample Volume (min./typ.) | 1.5 mL / 5 mL |
| Solvent Volume (min./typ.) | 1.5 mL / 6 mL |
| Ambient Conditions | 15°C to 35°C, |
| Maximum Throughput | 30 samples/hour |
| Data Storage | 1,000 results |
| Display | 10.4 Inch Touchscreen |
| Interfaces | 4× USB, RS-232 |
| Power Supply | AC 100 to 240 V, 50 to 60 Hz |
| Dimensions | 330 × 510 × 231 mm |
| Packaging Dimension | 530 × 710 × 431 mm |
| Net Weight | 17.6 kg |
| Gross Weight | 19 kg |
Function Implementation Petroleum quality control 0.2 mm²/s to 30,000 mm²/s viscosity range supports fuel and lubricant testing Clinical laboratory analysis Temperature reproducibility of 0.03°C ensures precise serum and plasma measurements Industrial process monitoring Maximum throughput of 30 samples/hour enables batch testing efficiency Research formulation development Density range of 0 to 3 g/cm³ accommodates diverse polymer and solvent evaluations Quality assurance laboratories Data storage for 1,000 results facilitates traceability and audit compliance
O-rings
Syringes
Tygon/FEP/Viton hoses
Luer Adapters
Cleaning Brushes
LabExpo Stabinger Viscometer delivers accurate viscosity and density analysis with automated operation for smooth and efficient testing. It features quality control by providing reliable fluid measurement for petroleum labs and research use. We offer precise and repeatable results with flexible operation and an easy-to-use control interface. Our Stabinger Viscometer supports efficient fluid characterization with automated functions that reduce manual workload.
