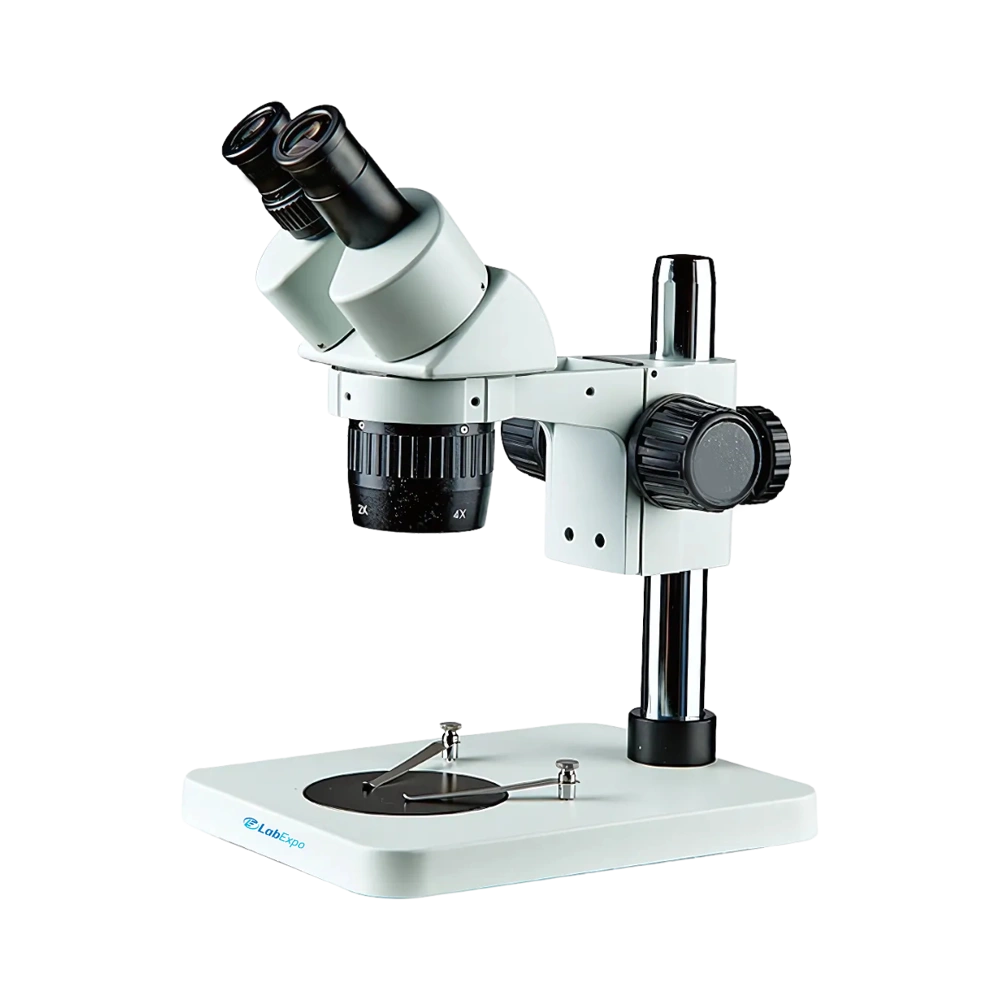

Stereo Microscope LE-SM101

Stereo Microscope LE-SM101
Model: LE-SM101

Lab Expo Stereo Microscope LE-SM101 is designed with a 45º inclined and 360º swiveling binocular head for ergonomic and flexible viewing. It includes super wide field eyepieces that provide a broad and detailed observation area. Equipped with 3X super wide field magnification settings for versatile inspection needs. Built-in high eye point design allows comfortable viewing, even for eyeglass wearers. Our Stereo Microscope is suitable for applications in education, dissection, assembly, and routine inspections.

$1,500.00 $ 1250

Stereo Microscope LE-SM101 - Specifications

Head Binocular, 45° inclined, 360° rotatable, can be locked in any position desired
Magnification 20X to 40X, 10X to 80X with Optional Eyepieces and Objectives
Working Distance 100mm
Eyepiece WF10X/20mm High-Eyepoint, Wide-Field; Convenient for Observers Wearing Glasses
Objective 2X/4X, 1X/3X, 1X/2X
Diopter Adjustment ±5 diopters
Interpupillary Distance 54 to 76mm
Focusing Mount A1 Focusing Bracket, Handwheel's Tightness is Adjustable, Lifting Range 50mm
Base CB1 Base
Illumination Fluorescent Lamp, LED Ring Light, for More Option

Stereo Microscope LE-SM101 - Key Features

  • Fluorescent lamp illumination with adjustable intensity
  • LED ring light option for enhanced specimen visualization
  • CB1 base design providing stable platform support
  • Handwheel adjustable focusing bracket with 50mm lifting range
  • Diopter adjustment range of ±5 diopters for individual vision correction
  • Interpupillary distance adjustment from 54 to 76 millimeters

Stereo Microscope LE-SM101 - Applications

FunctionImplementation
Education labs20X to 40X magnification supports detailed specimen observation
Dissection workstations100mm working distance allows tool manipulation during inspection
Assembly linesBinocular head rotates 360° and locks for shared viewing setups
Quality control stations±5 diopter adjustment accommodates eyeglass wearers comfortably
Industrial inspection tasksLED ring light provides consistent illumination for surface analysis

Stereo Microscope LE-SM101 - Catalog

Stereo Microscope LE-SM101 Catalog

Stereo Microscope LE-SM101

Stereo Microscope LE-SM101
