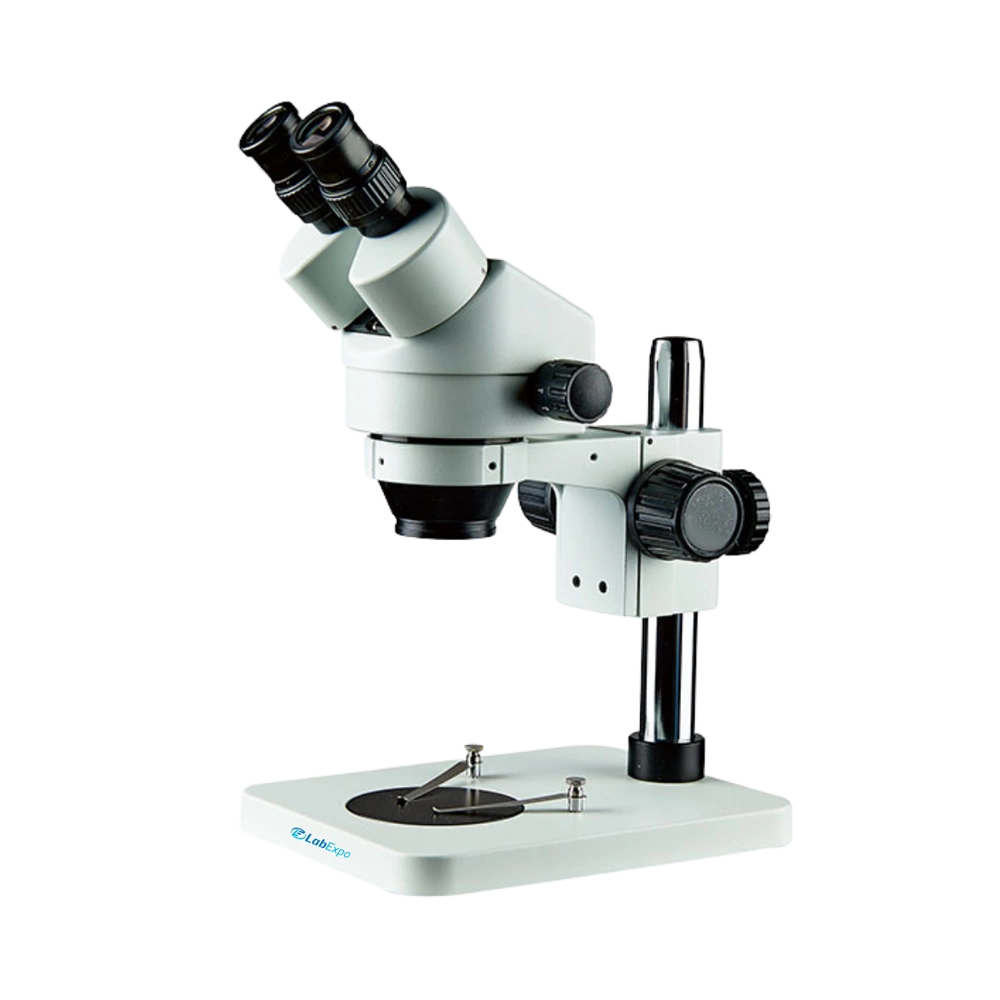

Stereo Microscope LE-SM104

Stereo Microscope LE-SM104

Lab Expo Stereo Microscope LE-SM104 is designed with a magnification range from 3.5X to 270X. It offers crystal-clear, high-resolution images with excellent depth and a broad field of view. Equipped with super wide high eye point WF10X/20mm eyepieces, it ensures operator comfort. Integrated optical components provide consistent sharpness, making it ideal for detail work. Our Stereo Microscope is suitable for electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.

$1,536.00 $ 1280

Stereo Microscope LE-SM104 - Specifications

Head Binocular
Magnification 7X to 45X, 3.5 to 270X with optional lens
Working Distance 100mm, 30 to 287mm with optional lens
Eyepiece 10X/20mm
Zoom Range 0.7X to 4.5X
Zoom Ratio 6.4:1
Objective 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Diopter Adjustment ±5 diopters
Interpupillary Distance 54 to 76mm
Binocular Tube with an Inclination of 45° for Greater Ease of Observation
Binocular Body Can be Rotated a Full 360° and Locked in Any Position Desired
Focusing Mount A1 Focusing Bracket, Handwheel's Tightness is Adjustable, Lifting Range 50mm
Base CB1 Base
Illumination Fluorescent Lamp, LED Ring Light, for More Option

Stereo Microscope LE-SM104 - Key Features

  • Interpupillary distance range 54 to 76mm for ergonomic adjustment
  • Binocular tube inclined at 45 degrees for enhanced observation comfort
  • Zoom ratio 6.4:1 enables continuous magnification variation across range
  • Eyepieces specified as WF10X/20mm providing wide field and high eye point
  • Zoom range extends from 0.7X to 4.5X for versatile inspection capabilities
  • Head configuration is binocular enabling stereoscopic depth perception

Stereo Microscope LE-SM104 - Applications

FunctionImplementation
Electronic inspection0.3X to 2X objectives enable detailed component analysis
Educational labsBinocular tube inclined at 45° supports extended observation sessions
Agricultural researchMagnification up to 270X facilitates micro-organism study
Industrial QAWorking distance of 100mm allows manipulation during examination
Medical trainingDiopter adjustment ±5 accommodates varying user vision needs

Stereo Microscope LE-SM104 - Catalog

Stereo Microscope LE-SM104 Catalog

Stereo Microscope LE-SM104

Stereo Microscope LE-SM104

Related Stereo Microscope

Lab Expo Stereo Microscopes are structured around dual optical paths to deliver true three-dimensional visualization with extended depth of field. This stereoscopic microscope supports low-magnification inspection with a wide working distance for hands-on sample handling. Binocular or trinocular configurations, stable illumination, and smooth focus control enable precise surface examination, manipulation, and quality inspection across research, electronics, education, and industrial workflows.
