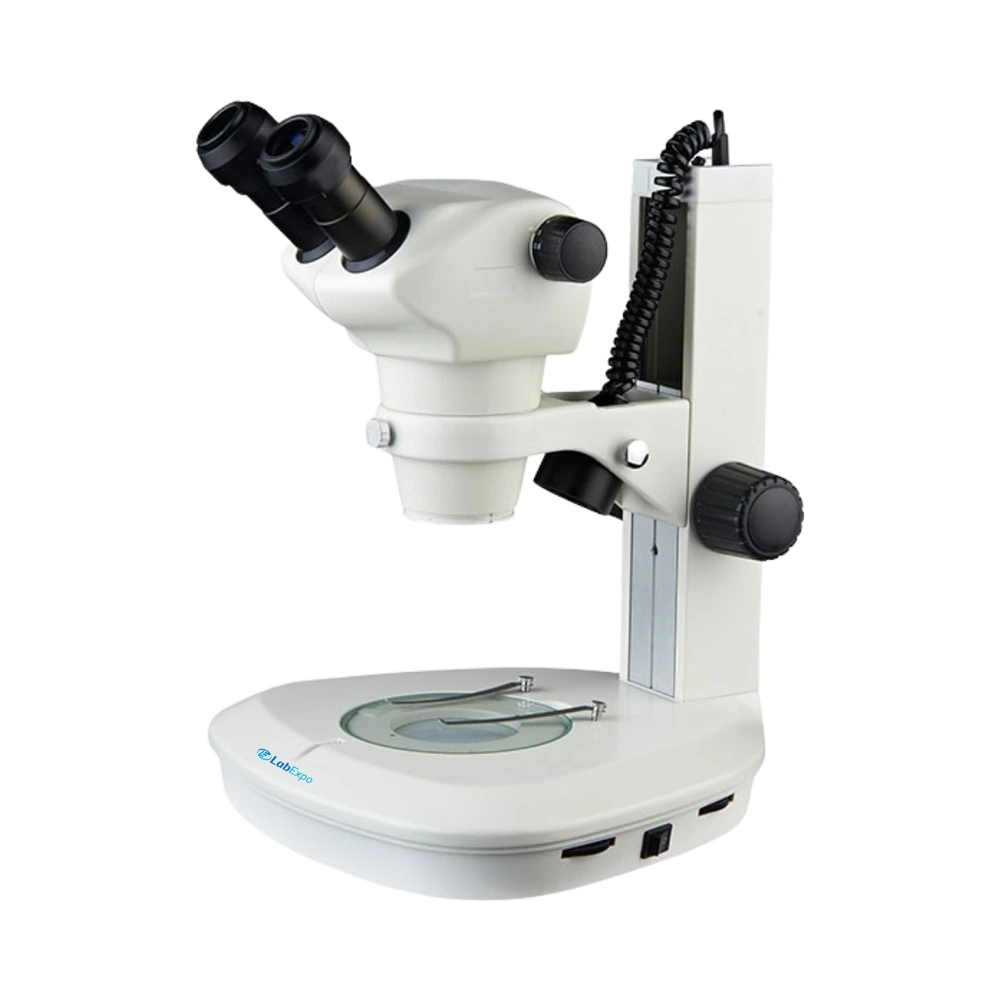

Stereo Microscope LE-SM106

Stereo Microscope LE-SM106

Lab Expo Stereo Microscope LE-SM106 is equipped with a binocular head and a fully coated optical system. Integrated with a variable magnification range 4X to 300X depending upon the eyepiece and auxiliary lenses. Incorporated long working distance allows convenient manipulation of specimens under the lens. Our Stereo Microscope is designed for users who demand precision-oriented observation.

$1,925.00 $ 1604

Stereo Microscope LE-SM106 - Specifications

Head Binocular
Magnification 8X to 50X, 4 to 300X with optional lens
Working Distance 115mm, 43.5 to 211mm with optional lens
Eyepiece 10X/22mm
Zoom Range 0.8X to 5.0X
Zoom Ratio 6.3:1
Objective 0.5X, 2.0X
Diopter Adjustment ±5 diopters
Interpupillary Distance 52 to 75mm
Binocular Tube with an Inclination of 45° for Greater Ease of Observation
Binocular Body Can be Rotated a Full 360° and Locked in Any Position Desired
Base CD Base
Illumination Fluorescent Ring Light, LED Ring Light, Halogen Lamp is Available

Stereo Microscope LE-SM106 - Key Features

  • LED illumination with adjustable intensity control
  • Easy to operate binocular head design
  • High resolution fully coated optical system
  • High-eyepoint eyepieces 10X/22mm specification
  • Fluorescent Ring Light for specimen visualization

Stereo Microscope LE-SM106 - Applications

FunctionImplementation
Quality control labs10X/22mm eyepiece enables detailed specimen inspection
Research laboratoriesBinocular body rotates 360° and locks for flexible observation angles
Clinical diagnosticsWorking distance of 115mm allows safe manipulation of samples
Industrial inspectionZoom ratio of 6.3:1 supports variable magnification from 8X to 50X
Educational institutionsInterpupillary distance adjustable from 52 to 75mm accommodates multiple users

Stereo Microscope LE-SM106 - Catalog

Stereo Microscope LE-SM106 Catalog

Stereo Microscope LE-SM106

Stereo Microscope LE-SM106
