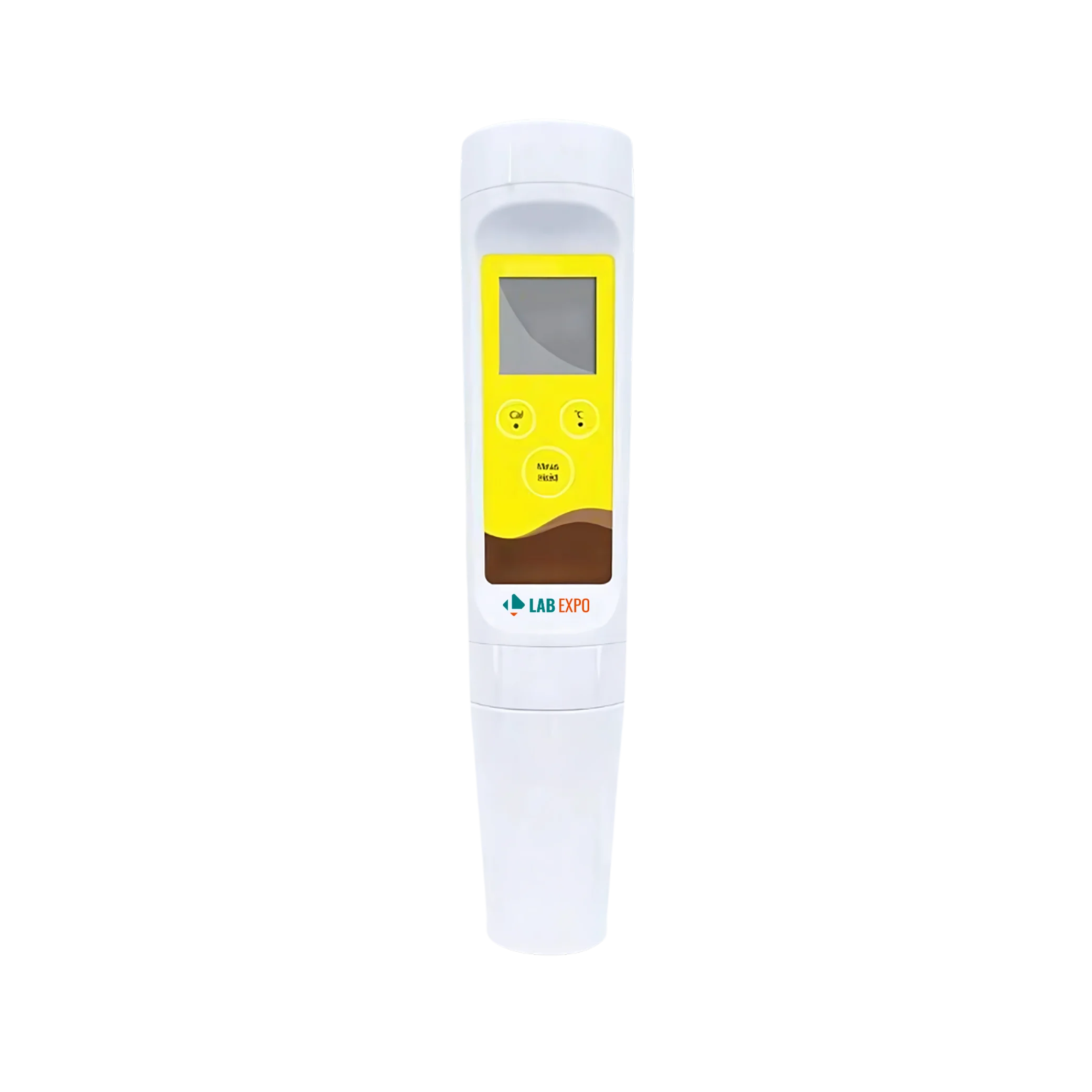

Pocket TDS Tester 25-PTS103

Multi-range pocket TDS tester comes with 1 - 3 points calibration system. Equipped with platinum sensor provides fast and reliable results. The battery indicator shows the remaining battery capacity on display screen. The System menu allows setting of up to 5 parameters. Equipped with reset features. It can measure TDS content of all liquids and low, mid, high concentration solutions.

$1,014.00 $507.00

Specifications

TDS range 0 - 20 ppt
TDS accuracy ± 1 % F.S.
TDS factor 0.1 to 1.0 (default 0.5)
Calibration points 1 - 3 points
TDS type range Low range TDS
Calibration solutions 100 ppm, 1000 ppm, 10 ppt
Type of sensor Platinum sensor
Temperature compensation 0 °C - 60 °C, Automatic
Temperature coefficient 2 % per °C
Normalization temperature 25 °C
Operating temperature 0 °C - 60 °C, 32 °F - 140 °F
Connector 6 pin
Display LCD screen
Data hold function Manual
Battery life Approximately 150 hours
Power off Manual or automatic (8 minutes after last key is pressed)
Power 2 × 1.5 V “AAA”
Dimension (L × dia.) 185 × 40 mm
Weight 100 g

Features

Selectable TDS conversion factor for accurate measurements
1 - 3 points push button calibration to adjust the display value to known standard
Equipped with platinum sensor
Battery indicator to show the remaining battery capacity
Reset function automatically resumes all the settings to default mode
System menu allows setting of up to 5 parameters
Automatic temperature compensation for accurate measured value over the entire range
Auto hold function freezes stable, final readings for better viewing and recording
Automatic power off helps to reduce battery power consumption
Waterproof features guarantees protection against harsh conditions
Replaceable electrode module to reduce the maintenance , replacement cost

Applications

Multi-range pocket TDS tester can measure TDS content of solutions, liquids used in electroplating & printing industry, beverage industry, water & waste water, aquarium units.
