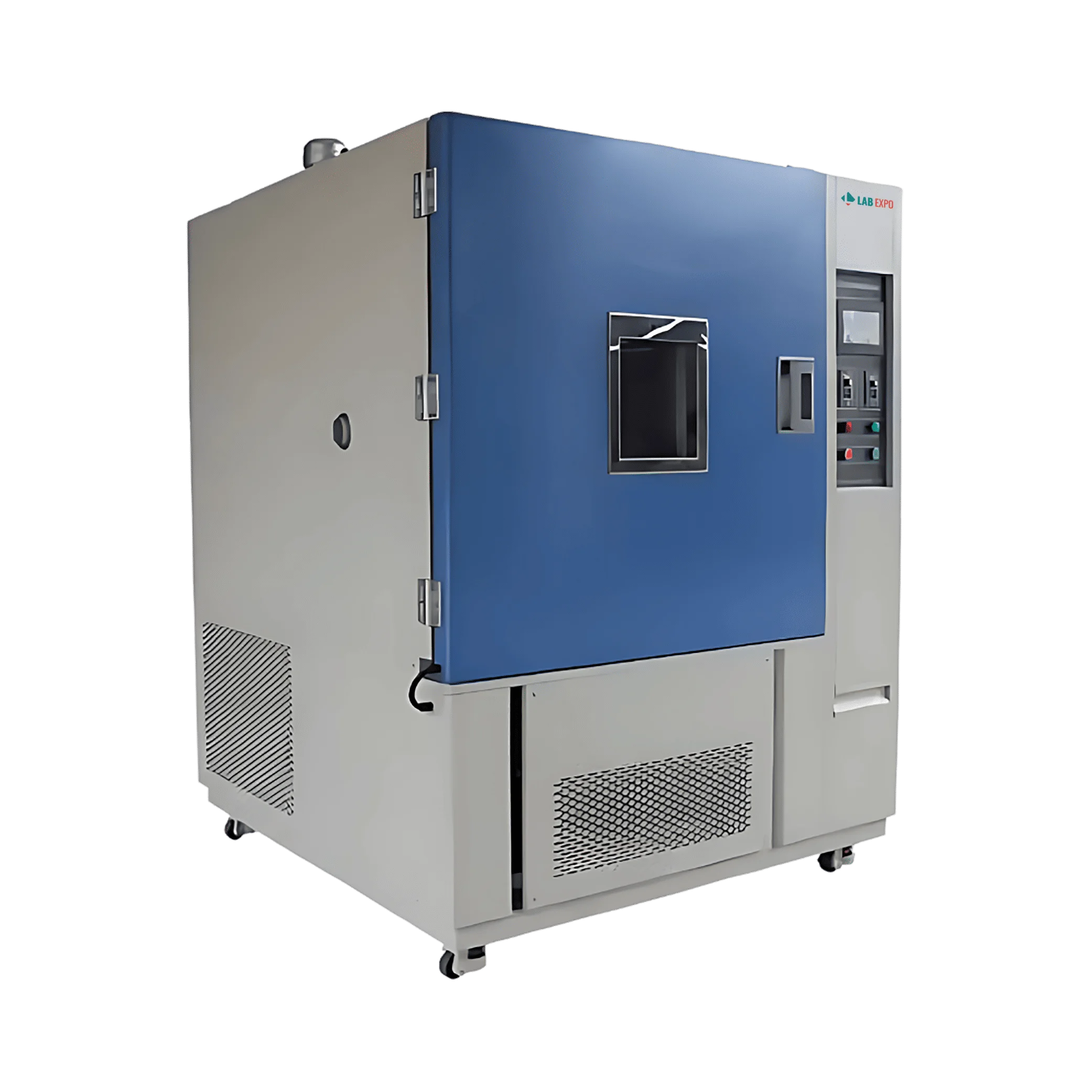

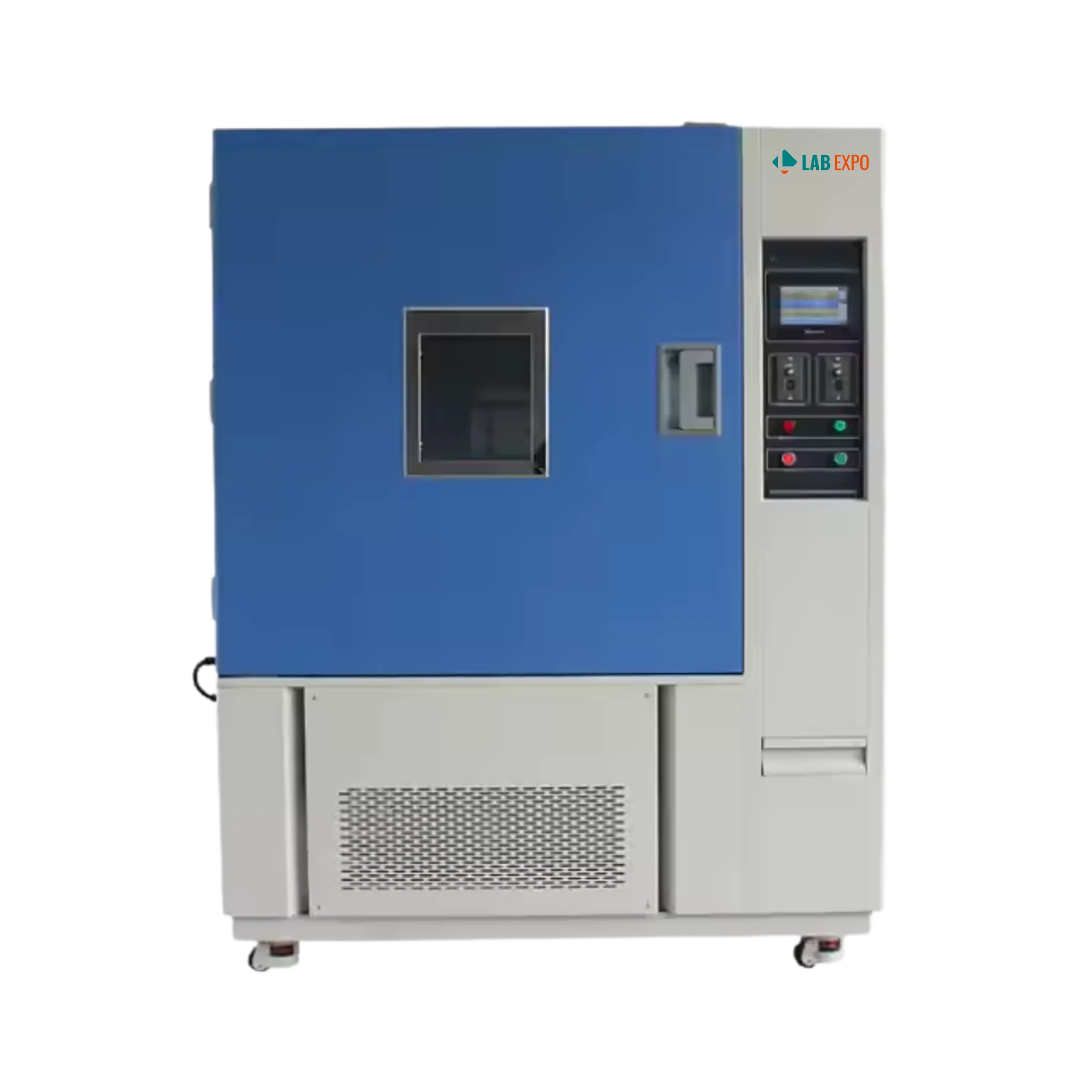

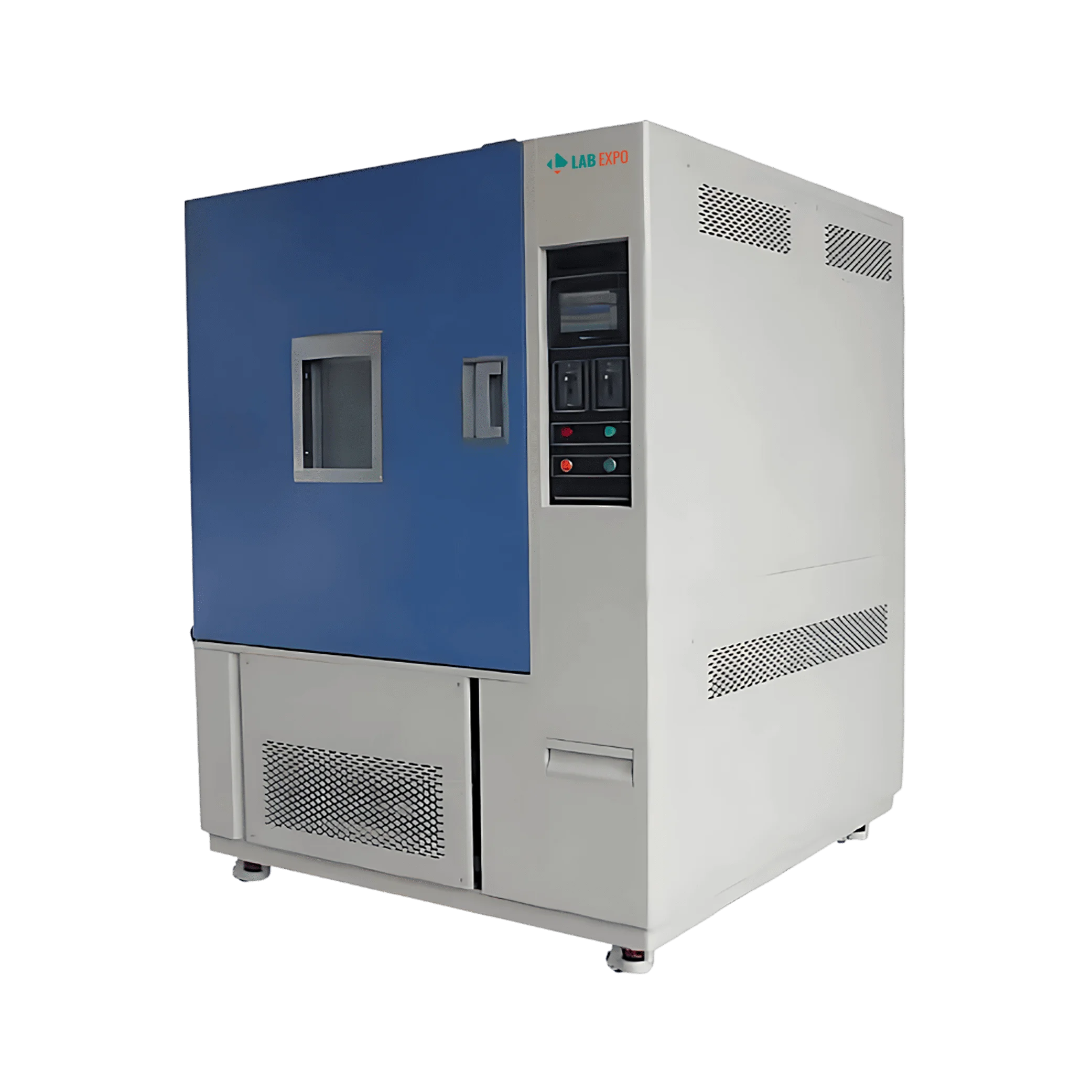

Temperature & Humidity Test Chamber 24-TTC201

Lab Expo Temperature & Humidity Test Chamber 24-TTC201 has a capacity of 225 liters offering ample space for diverse testing applications. It operates at temperatures from -70℃ to 150℃ and humidity levels from 20% to 98% RH ensuring accurate environmental simulation. It is equipped with independently developed software that optimizes performance and control. Our test chamber has an LCD touch screen and graphic display for easy monitoring of settings.

$22,680.00 $ 18900

Temperature & Humidity Test Chamber 24-TTC201 - Specifications

Capacity 225 L
Temperature range (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃
Temperature cooling rate 1 ℃ / min
Temperature heating rate 3 ℃ / min
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity range 20 % to 98 % R.H
Humidity deviation ± 2.5 % RH
High temperature 180 ℃
Lowest humidity 10 % RH
Internal dimension (D x W x H) 500 x 600 x 750 mm
Overall dimension (D x W x H) 960 x 1150 x 1860 mm

Temperature & Humidity Test Chamber 24-TTC201 - Key Features

  • 225L stainless steel chamber with uniform heating
  • Microprocessor-based PID control with 0.1C resolution
  • Temperature range -70C to 150C for environmental testing
  • Independent R&D software for programmable cycling
  • Corrosion-resistant interior with toughened glass window
  • Compressor overload switch with automatic shutdown safety

Temperature & Humidity Test Chamber 24-TTC201 - Applications

FunctionImplementation
Quality control labs±2.0 ℃ temperature deviation supports consistent test repeatability
Pharmaceutical stability testing10 % RH lowest humidity enables dry condition simulation
Clinical sample preservation-70℃ to 150℃ temperature range allows broad environmental cycling
Industrial material aging3 ℃/min heating rate accelerates thermal stress evaluation
Research protocol validation±2.5 % RH humidity deviation ensures precise moisture control

Temperature & Humidity Test Chamber 24-TTC201 - Catalog

Temperature & Humidity Test Chamber 24-TTC201 Catalog

Related Temperature and Humidity Test Chamber

Lab Expo Temperature Humidity Test Chamber provides precise environmental control with uniform temperature and humidity distribution for repeatable testing. Designed for research, quality control, and industrial evaluation, this temperature humidity chamber uses forced convection airflow and eco-friendly refrigeration to maintain stable conditions. LCD-based monitoring and durable build support accurate parameter control and consistent performance across extended test cycles.
