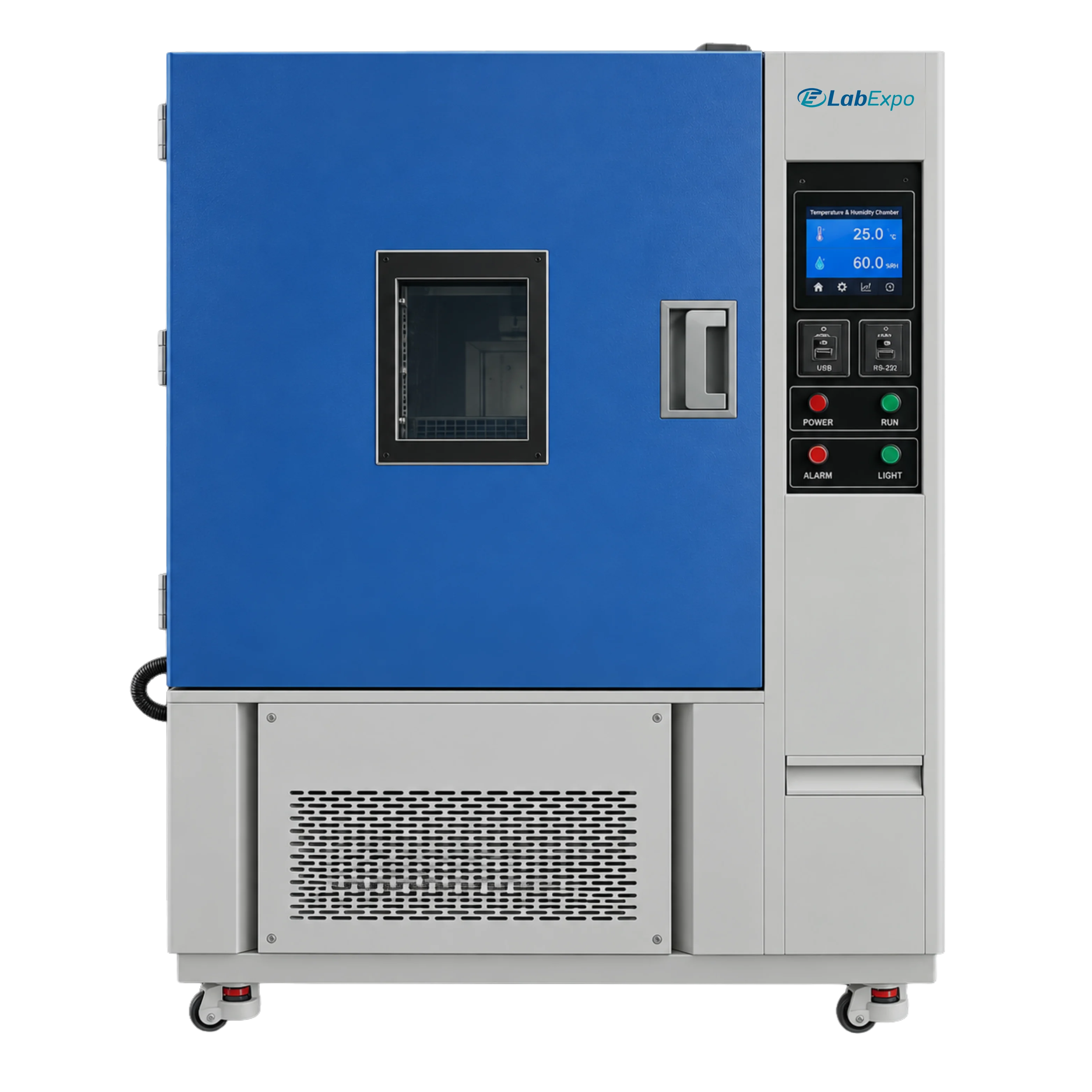

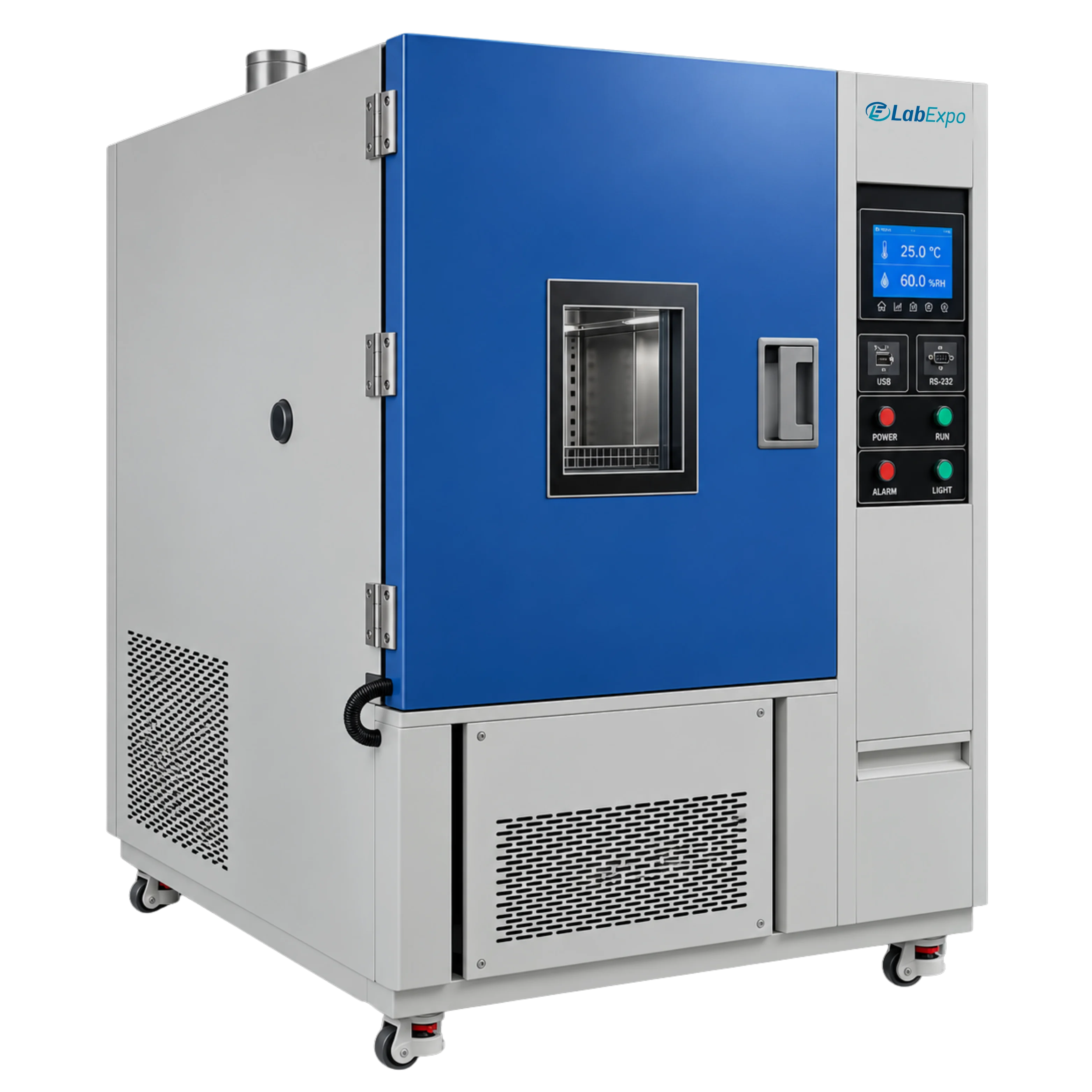

Temperature & Humidity Test Chamber 24-TTC203

Name: Temperature & Humidity Test Chamber 24-TTC203
Brand: Lab Expo
SKU: 24-TTC203
Price: 16390 USD
Availability: InStock
Rating: 5.0 (867 reviews)

★ ★ ★ ★ ★

Price: $16390

Temperature and Humidity Test Chamber is designed to simulate constant climatic conditions for testing a wide variety of products for their quality, performance, shelf life and stability. It's used to simulate constant temperature and humidity conditions, thereby creating a physiologically ideal environment for product testing. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.

Name Please enter a valid name.

Email Please enter a valid email address.

Product

Message

Capacity	800 L
Temperature range	(-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃
Temperature cooling rate	1 ℃ / min
Overall dimension (D x W x H)	1280 x 1550 x 2110 mm
Temperature heating rate	3 ℃ / min
Temperature fluctuations	± 0.5 ℃
Temperature deviation	± 2.0 ℃
Humidity range	20 % ~ 98 % R.H
Humidity deviation	± 2.5 % RH
High temperature	180 ℃
Lowest humidity	10 % RH
Internal dimension (D x W x H)	800 x 1000 x 1000 mm

Ideal for high and low temperature testing
Easy to use LCD touch screen controller and a graphic display to allow monitoring of the set and actual working parameters
Humidity controller
Corrosion resistant interior chamber
Observation window: Built-in toughened double layered glass
Independent R and D software
Humidity regulation with capacitive humidity sensor
Inner chamber material : Stainless steel plate
Thermal-insulating material resistant to high temperature and density
Compressor overload switch
Unit shuts down after alarm for over heating
Safety self-protection function includes short circuit, over temperature, motor overheating, compressor pressure, fuse failure
Windows with anti - sweat heater device to prevent water from vapor condensation and water droplets

Extensively used in basic and advanced research, pharmaceutical industries, chemical industries, food and beverage industry.
