Temperature & Humidity Test Chamber 24-TTC206
Product1
Product2
Product3

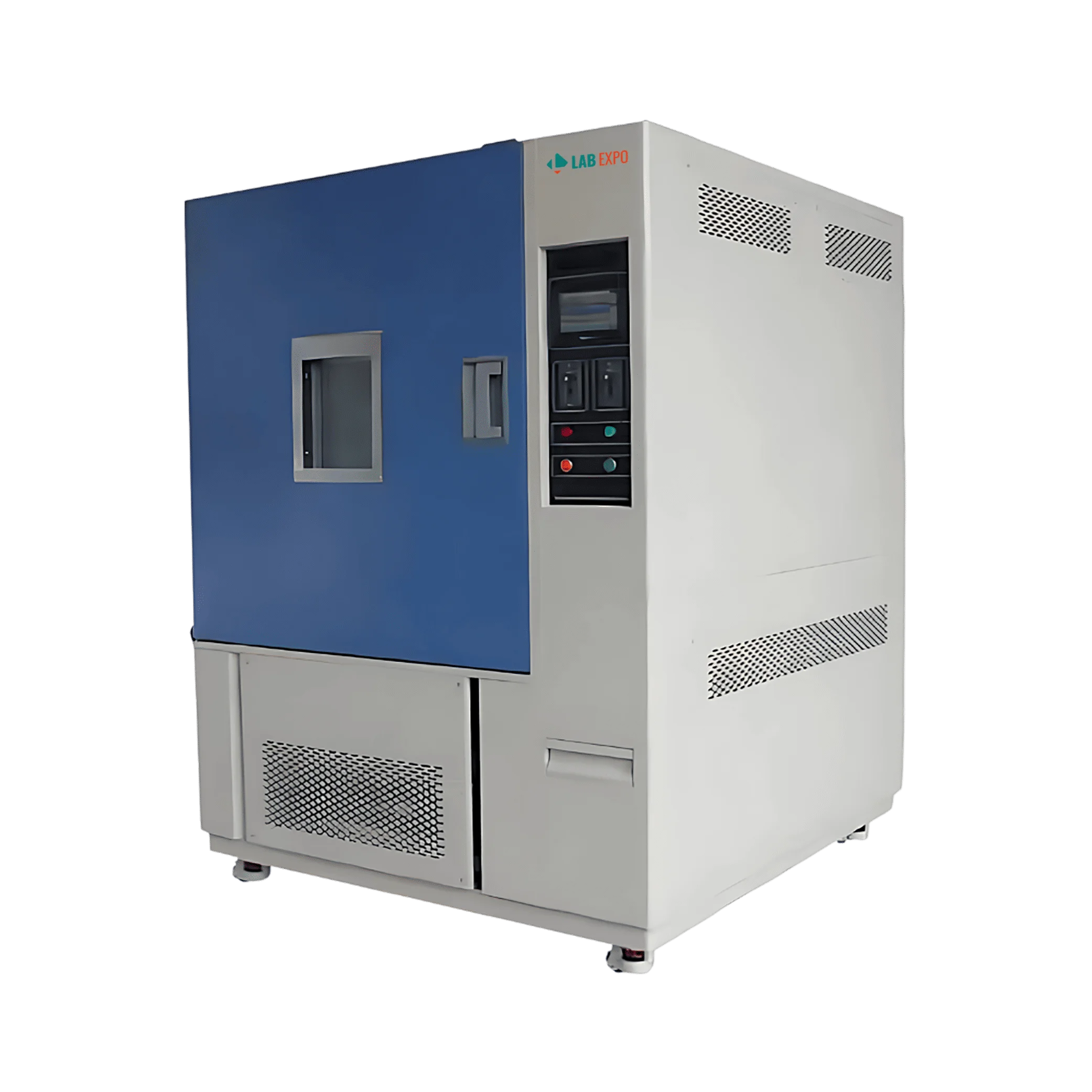

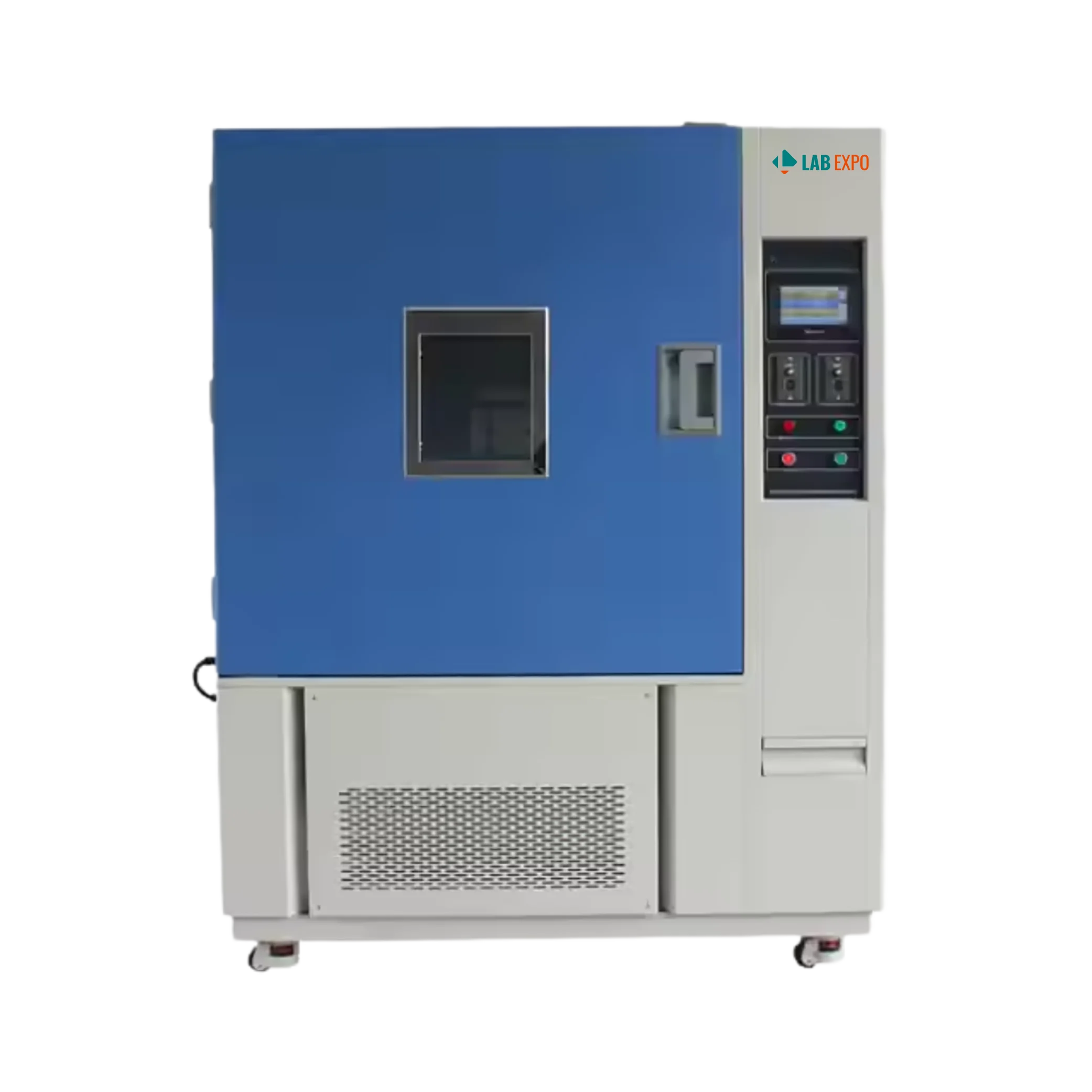

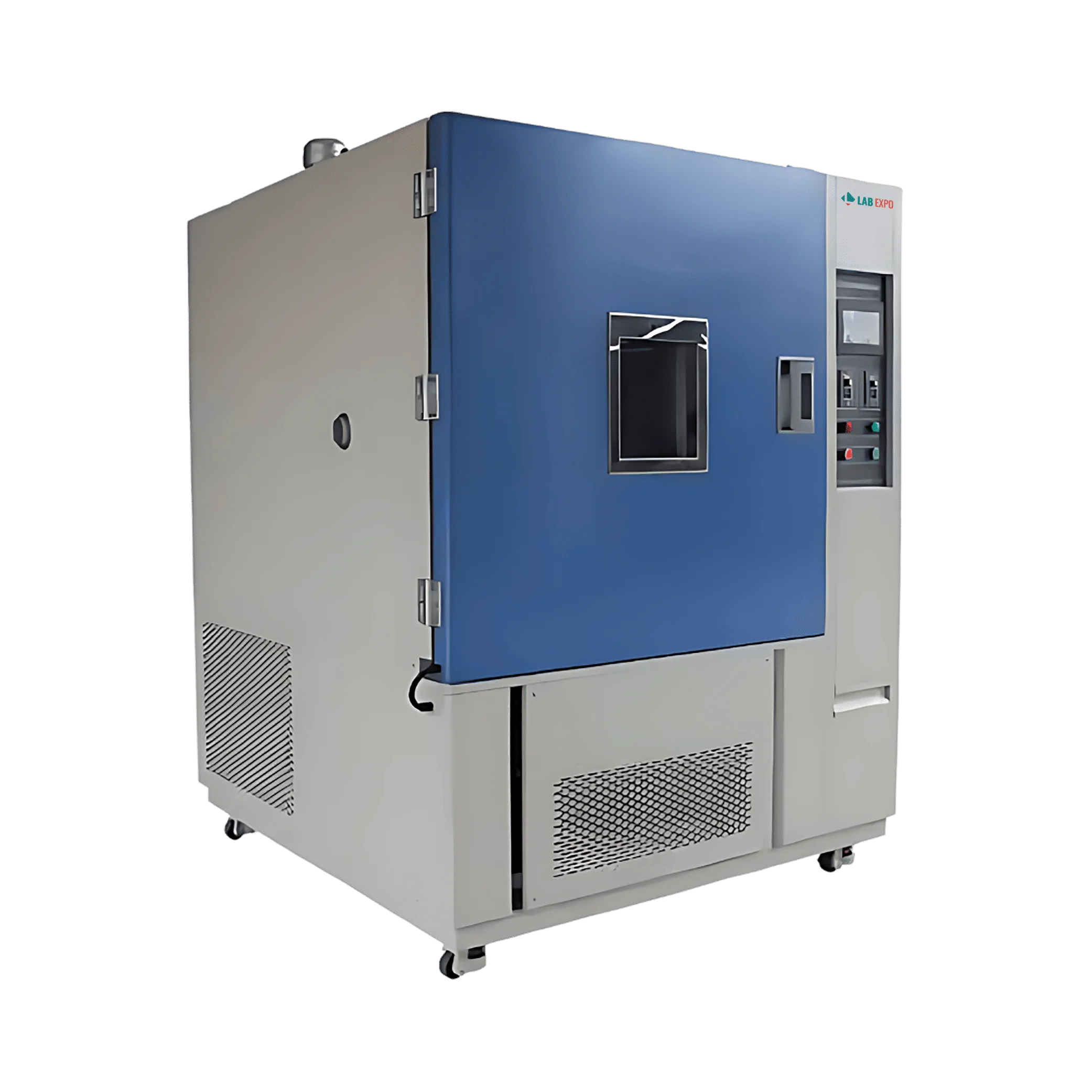

Temperature & Humidity Test Chamber 24-TTC206

Lab Expo Temperature & Humidity Test Chamber 24-TTC206 can operate from -20°C to 150°C, -40°C to 150°C, or -70°C to 150°C. It has a capacity of 225 liters providing ample space for various testing applications. It features windows with an anti-sweat heater device that prevent condensation and water droplet formation for clear visibility. Our test chamber has an LCD touchscreen for easy control and real-time monitoring of settings.

$37,901.00 $ 31584

Temperature & Humidity Test Chamber 24-TTC206 - Specifications

Capacity 225 L
Temperature range (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃
Temperature cooling rate 5 ℃ / min
Temperature heating rate 3 ℃ / min
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity range 20 % to 98 % R.H
Humidity deviation ± 2.5 % RH
High temperature 180 ℃
Lowest humidity 10 % RH
Internal dimension (D x W x H) 500 x 600 x 750 mm
Overall dimension (D x W x H) 960 x 1150 x 1860 mm

Temperature & Humidity Test Chamber 24-TTC206 - Key Features

  • Heating rate 3C/min with precise temperature control
  • High temperature limit 180C for extended testing
  • Temperature fluctuation ±0.5C maintains uniformity
  • Compressor overload switch provides motor protection function
  • Over-temperature alarm triggers automatic unit shutdown

Temperature & Humidity Test Chamber 24-TTC206 - Applications

FunctionImplementation
Stability testing labsTemperature deviation ± 2.0 ℃ ensures consistent environmental conditions
Material aging studiesHumidity range 20 % to 98 % R.H simulates diverse climatic exposures
Pharmaceutical validationInternal dimension 500 x 600 x 750 mm accommodates standard sample trays
Quality control batchesCapacity 225 L supports high-volume product evaluation cycles
Electronics stress screeningTemperature heating rate 3 ℃ / min enables controlled thermal ramp-up profiles

Temperature & Humidity Test Chamber 24-TTC206 - Catalog

Temperature & Humidity Test Chamber 24-TTC206 Catalog

Related Temperature and Humidity Test Chamber

Lab Expo Temperature Humidity Test Chamber provides precise environmental control with uniform temperature and humidity distribution for repeatable testing. Designed for research, quality control, and industrial evaluation, this temperature humidity chamber uses forced convection airflow and eco-friendly refrigeration to maintain stable conditions. LCD-based monitoring and durable build support accurate parameter control and consistent performance across extended test cycles.
