Temperature & Humidity Test Chamber 24-TTC208
Product1
Product2
Product3

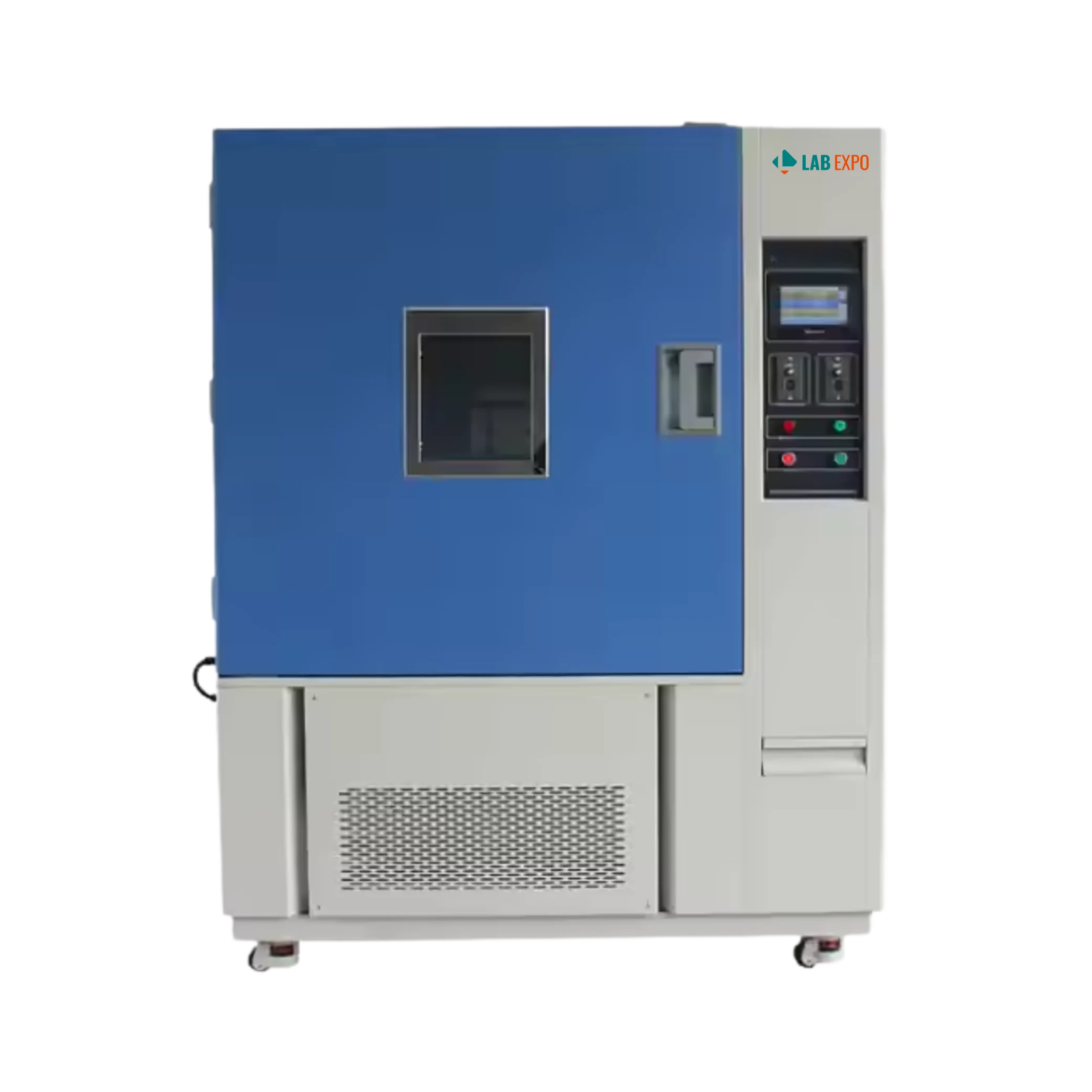

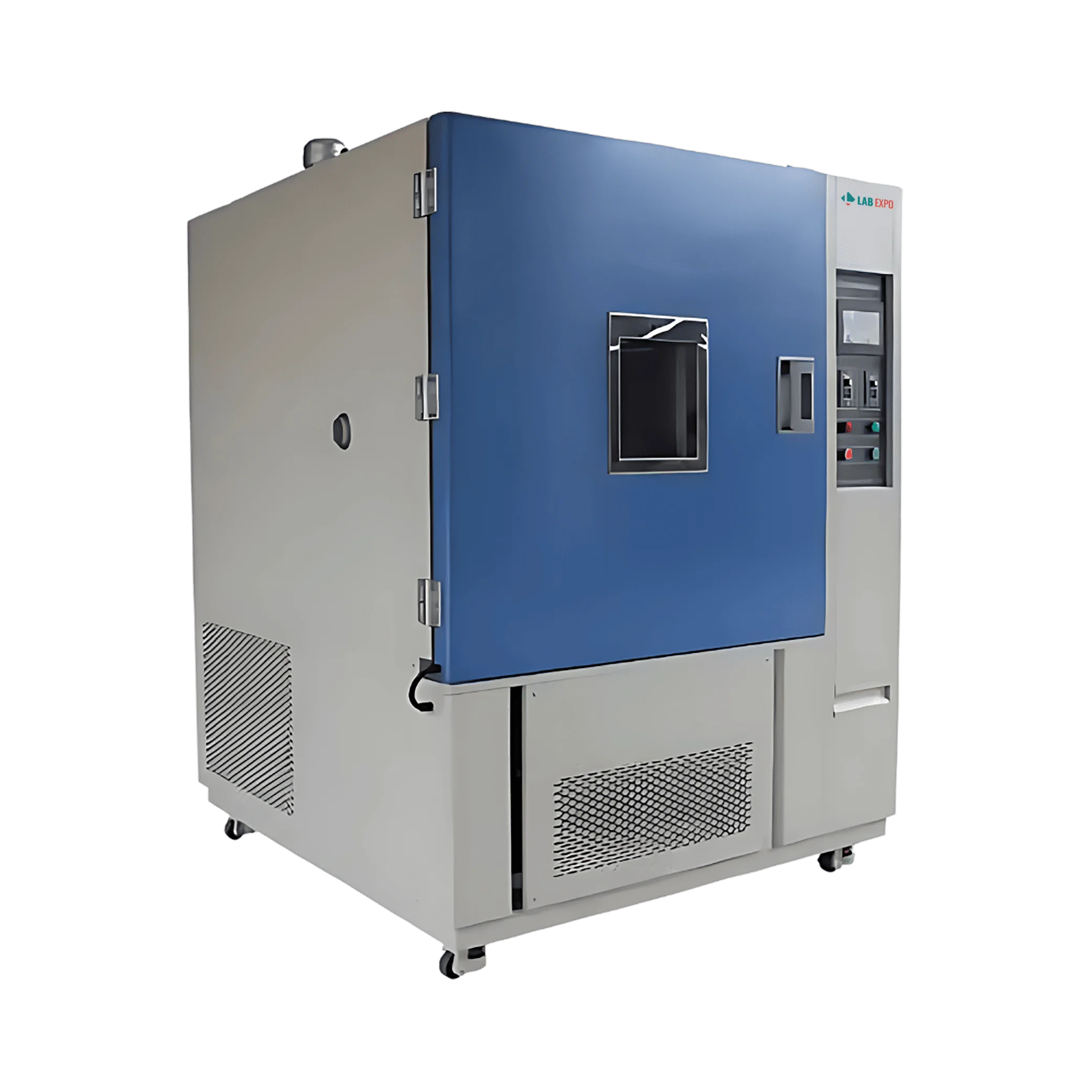

Temperature & Humidity Test Chamber 24-TTC208

Lab Expo Temperature & Humidity Test Chamber 24-TTC208 has a temperature range of -20℃ to 150℃, -40℃ to 150℃, or -70℃ to 150℃ for temperature testing. It has a spacious capacity of 800L suitable for a variety of testing applications. It has a humidity controller and sensor to ensure consistent humidity for reliable test results. Our test chamber has an LCD touchscreen for easy monitoring of set and actual working parameters.

$53,050.00 $ 44208

Temperature & Humidity Test Chamber 24-TTC208 - Specifications

Capacity 800 L
Temperature range (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃
Temperature cooling rate 5 ℃ / min
Temperature heating rate 3 ℃ / min
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity range 20 % to 98 % R.H
Humidity deviation ± 2.5 % RH
High temperature 180 ℃
Lowest humidity 10 % RH
Internal dimension (D x W x H) 800 x 1000 x 1000 mm
Overall dimension (D x W x H) 1280 x 1550 x 2110 mm

Temperature & Humidity Test Chamber 24-TTC208 - Key Features

  • LCD touch screen controller with 0.1C resolution for parameter monitoring
  • Humidity controller with capacitive sensor maintaining 20-98% RH range
  • Corrosion resistant stainless steel chamber ensuring long-term durability
  • Observation window: toughened double layered glass preventing condensation
  • Independent R and D software enabling customizable test programming

Temperature & Humidity Test Chamber 24-TTC208 - Applications

FunctionImplementation
Material stability testing±0.5℃ temperature fluctuations ensure consistent thermal conditions
Pharmaceutical validation20% to 98% RH humidity range supports drug stability protocols
Electronic component aging3℃/min heating rate accelerates thermal stress evaluation
Environmental simulation labs-70℃ to 150℃ temperature range replicates extreme climate exposure
Quality control batch analysis±2.5% RH humidity deviation maintains repeatable test accuracy

Temperature & Humidity Test Chamber 24-TTC208 - Catalog

Temperature & Humidity Test Chamber 24-TTC208 Catalog

Related Temperature and Humidity Test Chamber

Lab Expo Temperature Humidity Test Chamber provides precise environmental control with uniform temperature and humidity distribution for repeatable testing. Designed for research, quality control, and industrial evaluation, this temperature humidity chamber uses forced convection airflow and eco-friendly refrigeration to maintain stable conditions. LCD-based monitoring and durable build support accurate parameter control and consistent performance across extended test cycles.
