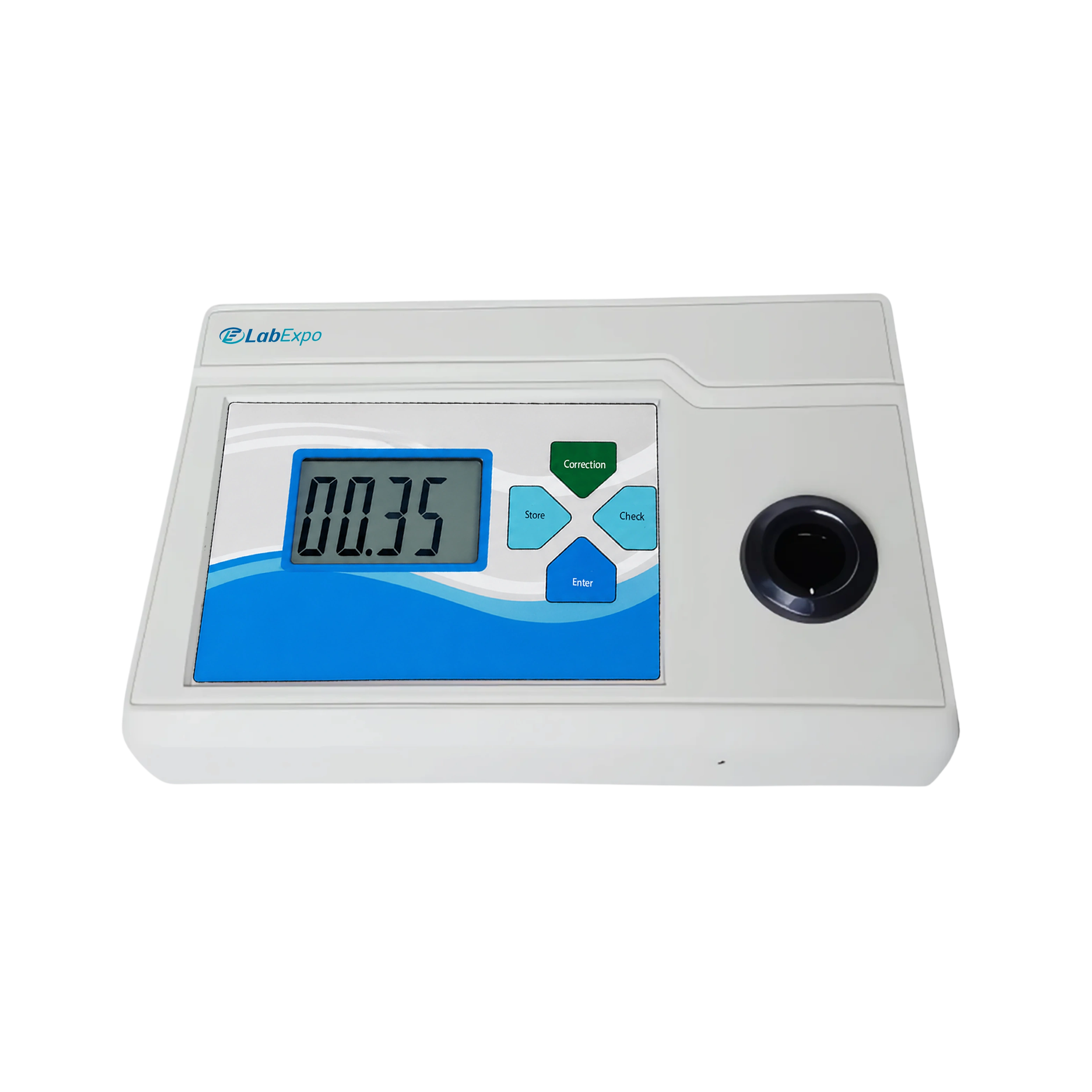

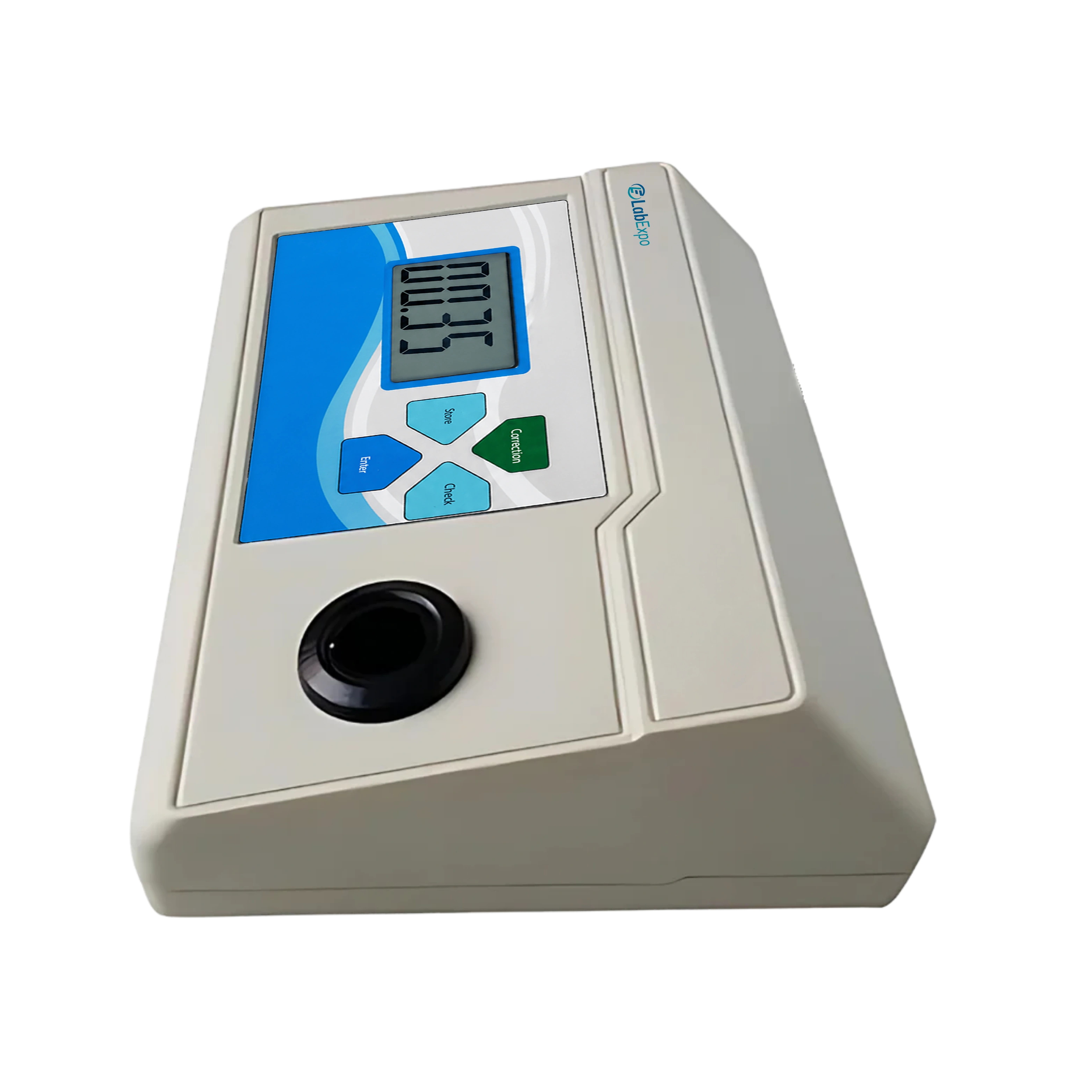

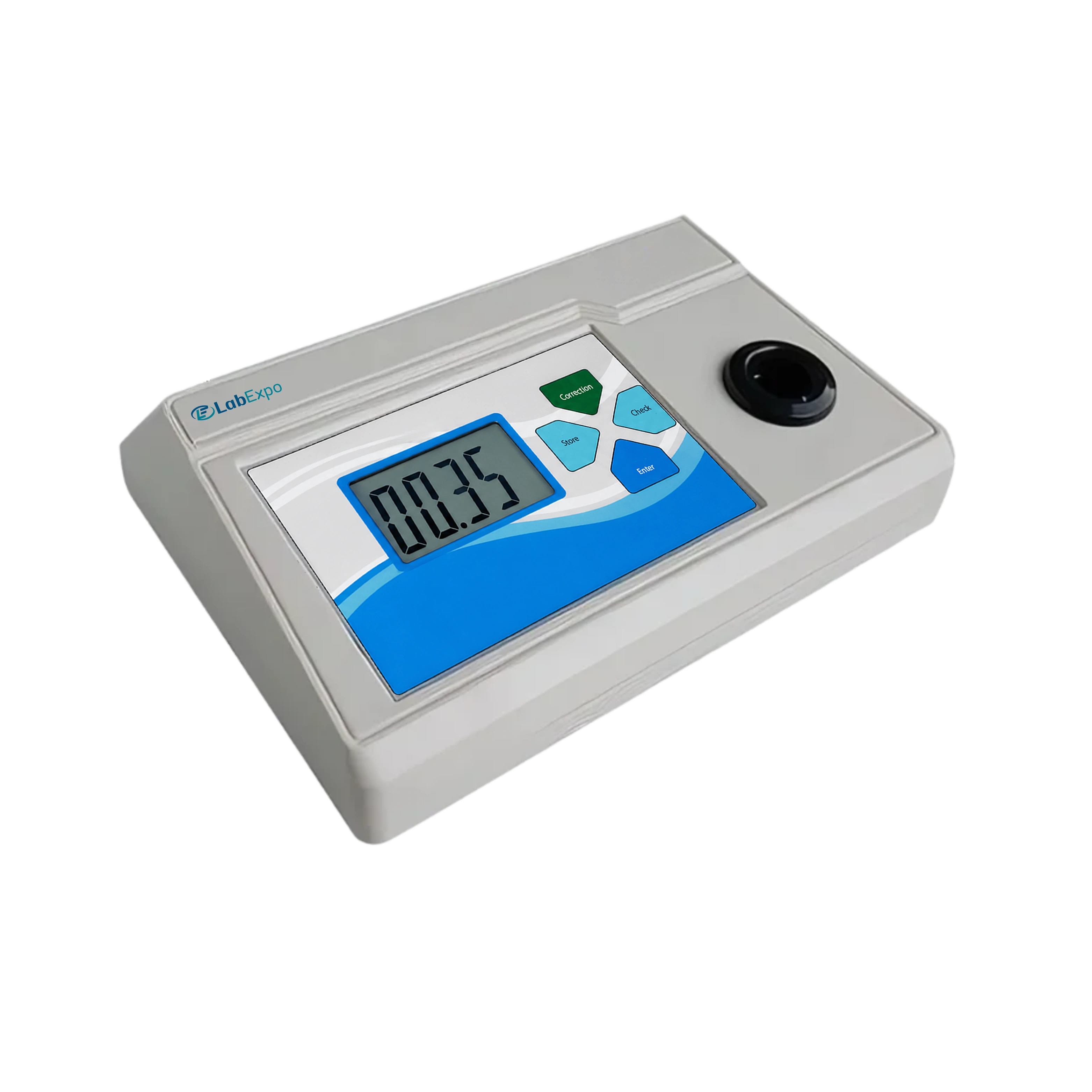

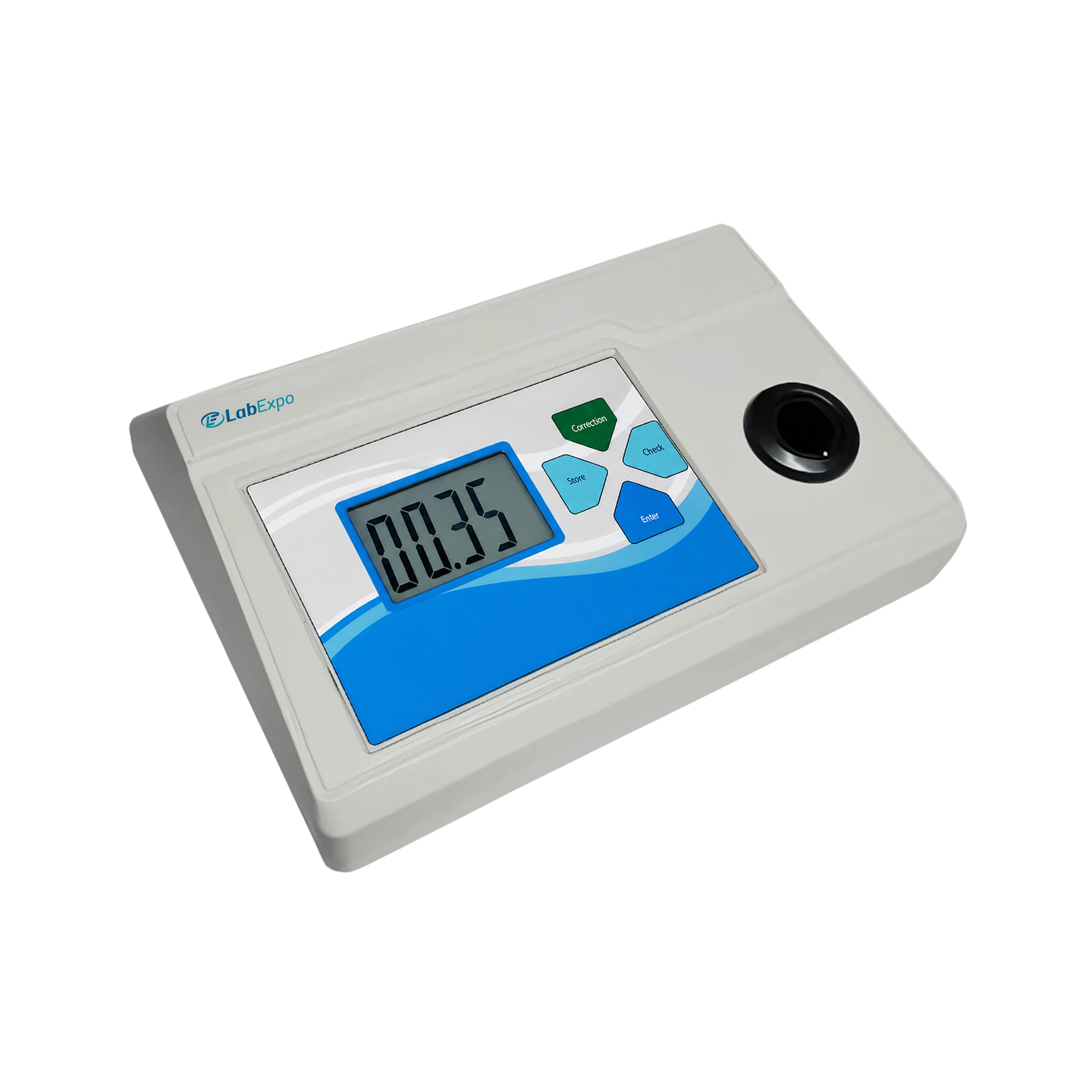

Lab Expo Benchtop Turbidity Meter 25-BTM103 with microprocessor controlled system, works on 90° scattered light principle to measure water turbidity in nephelometric turbidity unit i.e. NTU. The formazine standard solution of turbidity mentioned in ISO 7027 is used for turbidity analysis. This turbidity meter delivers highly accurate results with better numerical calculations to meet GLP standards.
$2,148.00 $ 1790
| Minimum readout value (NTU) | 0.01, 0.1 |
| Calibration point | 6 |
| Sample volume | 5 to 10 ml |
| Principle method | 90° scattered light |
| Operating temperature | 5 to 40°C |
| Working temperature | 5 to 40°C |
| Light source | Infrared-emitting diode (850 nm λ) |
| Detector | Silicon photodiode |
| Error value | ± 6 % (± 2 % F.S) |
| Zero drift | ± 0.5 % F.S. |
| Reset functions | Yes |
| Memory | Stores up to 20 sets data |
| Output | USB communication interface |
| Measuring range (NTU) | 0 to 100,100 to 800 |
| Power batteries | DC 1.5 V, 5 AA alkaline batteries |
| Power supply | AC 220 V, 50 Hz |
| Dimension | 400 × 300 × 250 mm |
| Weight | 2.5 kg |
Function Implementation Water quality labs 0.01 NTU minimum readout detects low turbidity levels Industrial process control Measuring range 0 to 100 NTU covers standard monitoring needs Field sampling sites Sample volume 5 to 10 ml allows portable testing with minimal reagent Laboratory calibration stations 6-point calibration ensures traceable accuracy across ranges Data logging applications Stores up to 20 sets data enables batch record keeping
| Accessory No. | Name | Quantity |
| 1 | Specimen bottle | 3 pcs |
| 2 | 400 NTU (Formazine) turbidity standard solution | 1 bottle |
| 3 | Power cable | 1 pc |
Lab Expo Turbidity Meter units are used for water clarity and suspended particle analysis in environmental, laboratory, and water treatment applications. The range includes benchtop and portable turbidity meter systems with measurement ranges up to 1000 NTU, minimum readout values down to 0.01 NTU, and multi-point calibration support for precise turbidity testing.
