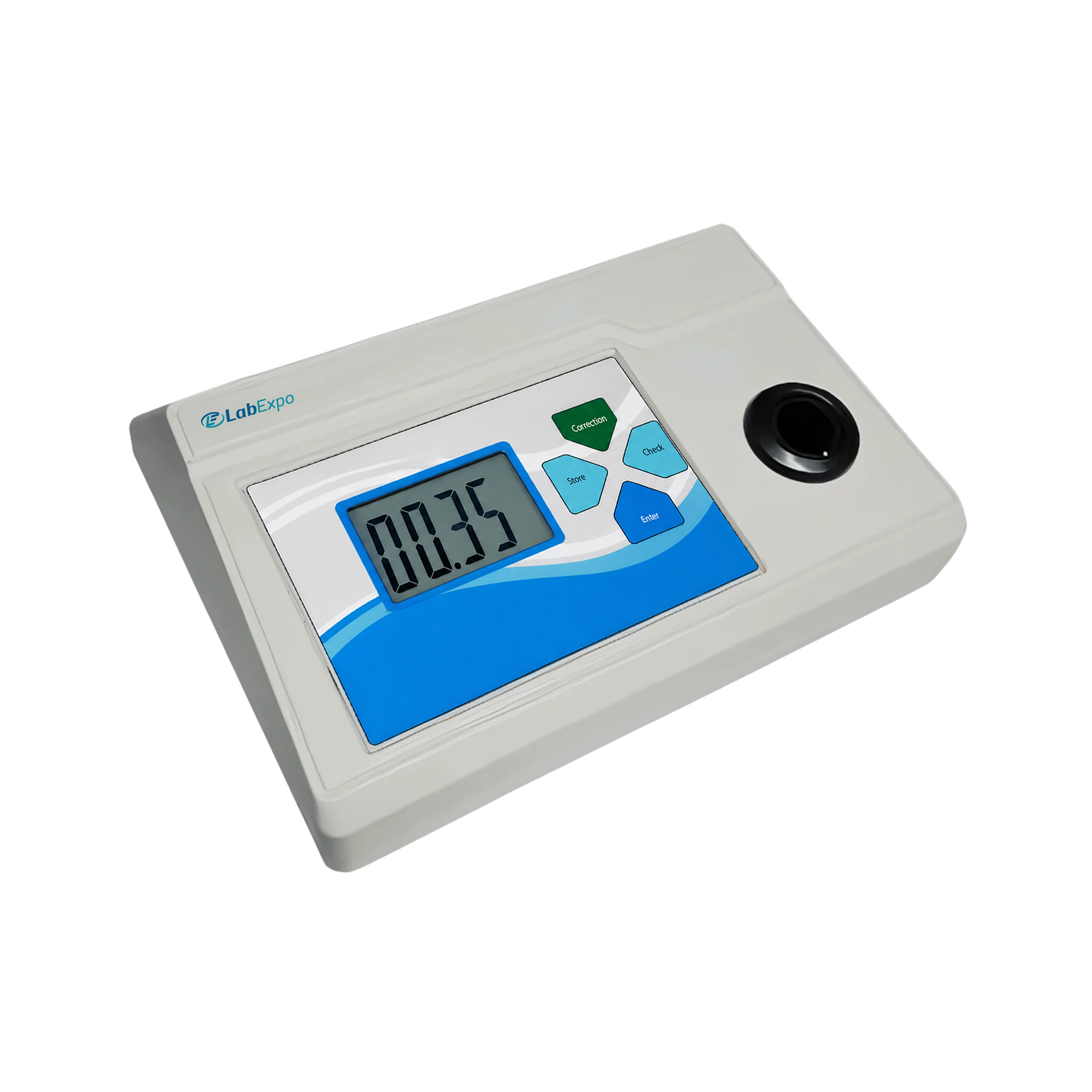

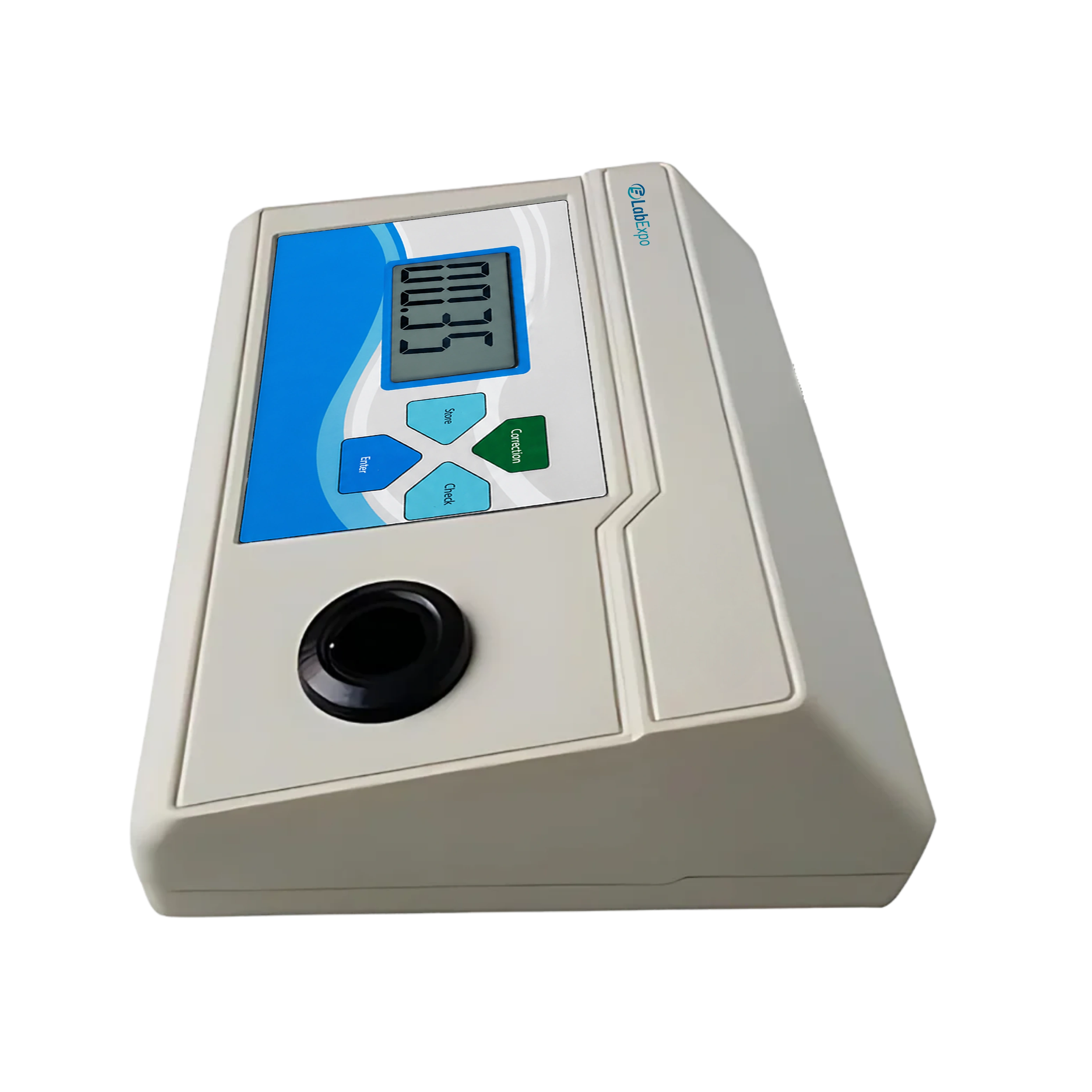

Lab Expo Benchtop Turbidity Meter 25-BTM104 measures water clarity using the 90° scattered light principle with an infrared-emitting diode at 850 nm and silicon photodiode detector. It covers two ranges: 0–100 NTU and 100–1,000 NTU, with a minimum readout of 0.01 NTU and error value of ±6% (±2% F.S.). Zero drift is ±0.5% F.S., calibration uses seven points, and it stores up to 20 data sets. Suitable for quality control in beverage, pharmaceutical, environmental testing and research labs requiring precise turbidity assessment under ISO-aligned conditions.
$2,220.00 $ 1850
| Measuring range (NTU) | 0 to 100,100 to 1000 |
| Minimum readout value (NTU) | 0.01, 0.1 |
| Calibration point | 7 |
| Sample volume | 5 to 10 ml |
| Principle method | 90° scattered light |
| Operating temperature | 5 to 40°C |
| Working temperature | 5 to 40°C |
| Light source | Infrared-emitting diode (850 nm λ) |
| Detector | Silicon photodiode |
| Error value | ± 6 % (± 2 % F.S) |
| Zero drift | ± 0.5 % F.S. |
| Reset functions | Yes |
| Memory | Stores up to 20 sets data |
| Output | USB communication interface |
| Power batteries | DC 1.5 V, 5 AA alkaline batteries |
| Power supply | AC 220 V, 50 Hz |
| Dimension | 400 × 300 × 250 mm |
| Weight | 2.5 kg |
Function Implementation Water quality testing labs 0 to 100,100 to 1000 NTU range enables comprehensive turbidity analysis Field sampling stations 5 to 40°C operating temperature supports ambient condition use Clinical sample processing ±6% error value ensures accurate wastewater assessment Industrial effluent monitoring Stores up to 20 sets data facilitates batch record keeping Research laboratory workflows USB communication interface allows seamless data transfer
| Accessory No. | Name | Quantity |
| 1 | Specimen bottle | 3 pcs |
| 2 | 400 NTU (Formazine) turbidity standard solution | 1 bottle |
| 3 | Power cable | 1 pc |
Lab Expo Turbidity Meter units are used for water clarity and suspended particle analysis in environmental, laboratory, and water treatment applications. The range includes benchtop and portable turbidity meter systems with measurement ranges up to 1000 NTU, minimum readout values down to 0.01 NTU, and multi-point calibration support for precise turbidity testing.
