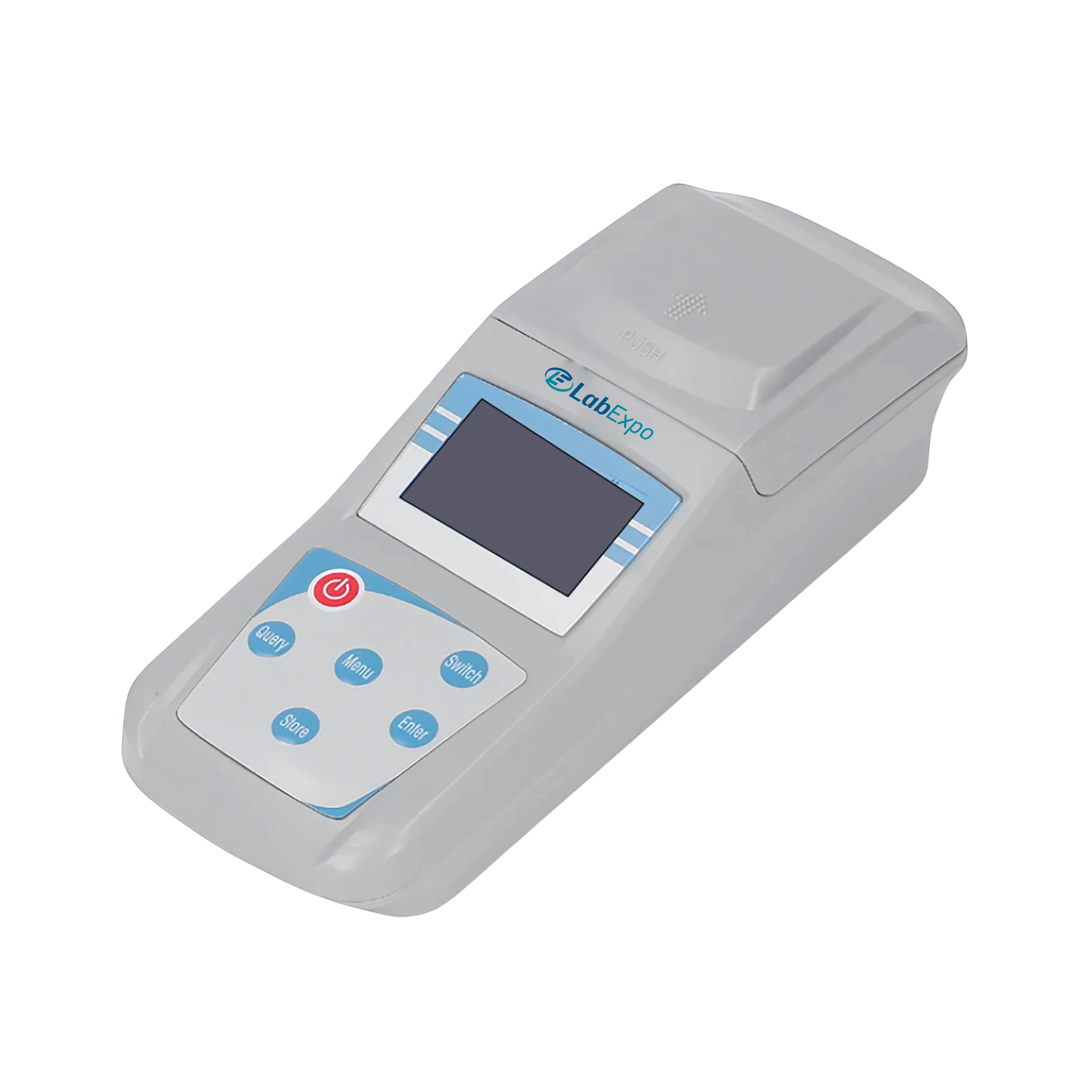

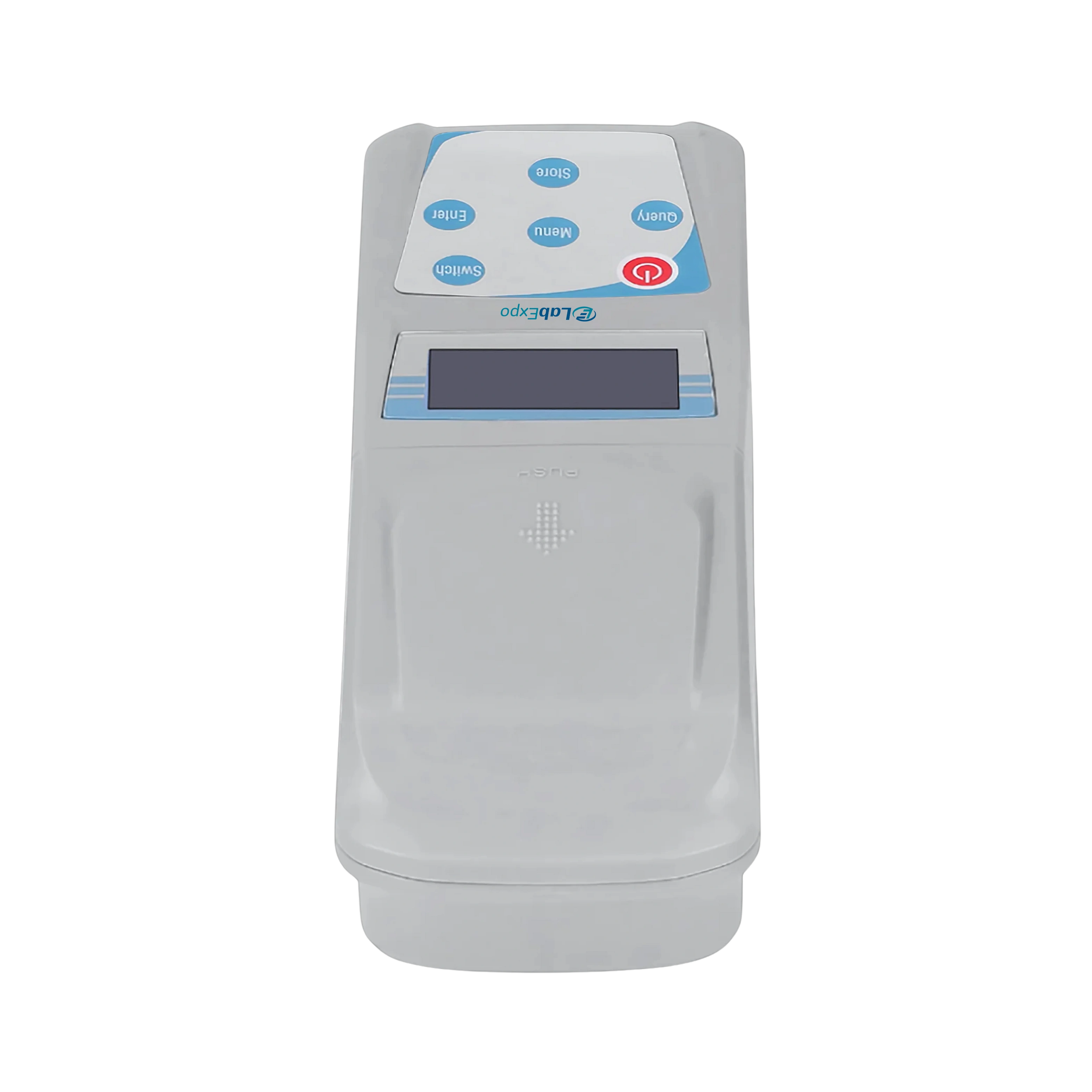

Lab Expo Portable Turbidity Meter 25-PTM100 with microprocessor controlled system, utilizes 90° scattered light principle to measure water turbidity in nephelometric turbidity unit i.e. NTU. The formazine standard solution of turbidity mentioned in ISO 7027 is used for turbidity analysis. Portable meter, used in field and lab scale analysis, delivers highly accurate results as per the GLP standards.
$1,752.00 $ 1460
| Measuring range (NTU) | 0 to 200 |
| Minimum readout value (NTU) | 0.1 |
| Calibration point | Nil |
| Sample volume | 5 to 10 ml |
| Principle method | 90° scattered light |
| Operating temperature | 5 to 40°C |
| Working temperature | 5 to 40°C |
| Light source | Infrared-emitting diode (850 nm λ) |
| Detector | Silicon photodiode |
| Error value | ± 6 % (± 2 % F.S) |
| Zero drift | ± 0.5 % F.S. |
| Reset functions | Yes |
| Memory | Stores up to 20 sets data |
| Output | USB communication interface |
| Power batteries | DC 1.5 V, 5 AA alkaline batteries |
| Power supply | AC 220 V, 50 Hz |
| Dimension | 370 × 260 × 150 mm |
| Weight | 1.5 kg |
Function Implementation Field water testing 5 to 10 ml sample volume enables on-site collection Laboratory analysis 0 to 200 NTU measuring range supports standard protocols Data logging needs Stores up to 20 sets data allows batch recording Temperature-variable sites Operating temperature 5 to 40°C ensures stable readings Power-constrained locations DC 1.5 V, 5 AA alkaline batteries provide portable operation
| Accessory No. | Name | Quantity |
| 1 | Specimen bottle | 3 pcs |
| 2 | 400 NTU (Formazine) turbidity standard solution | 1 bottle |
| 3 | Power cable | 1 pc |
| 4 | Carrying box | 1 pc |
Lab Expo Turbidity Meter units are used for water clarity and suspended particle analysis in environmental, laboratory, and water treatment applications. The range includes benchtop and portable turbidity meter systems with measurement ranges up to 1000 NTU, minimum readout values down to 0.01 NTU, and multi-point calibration support for precise turbidity testing.
