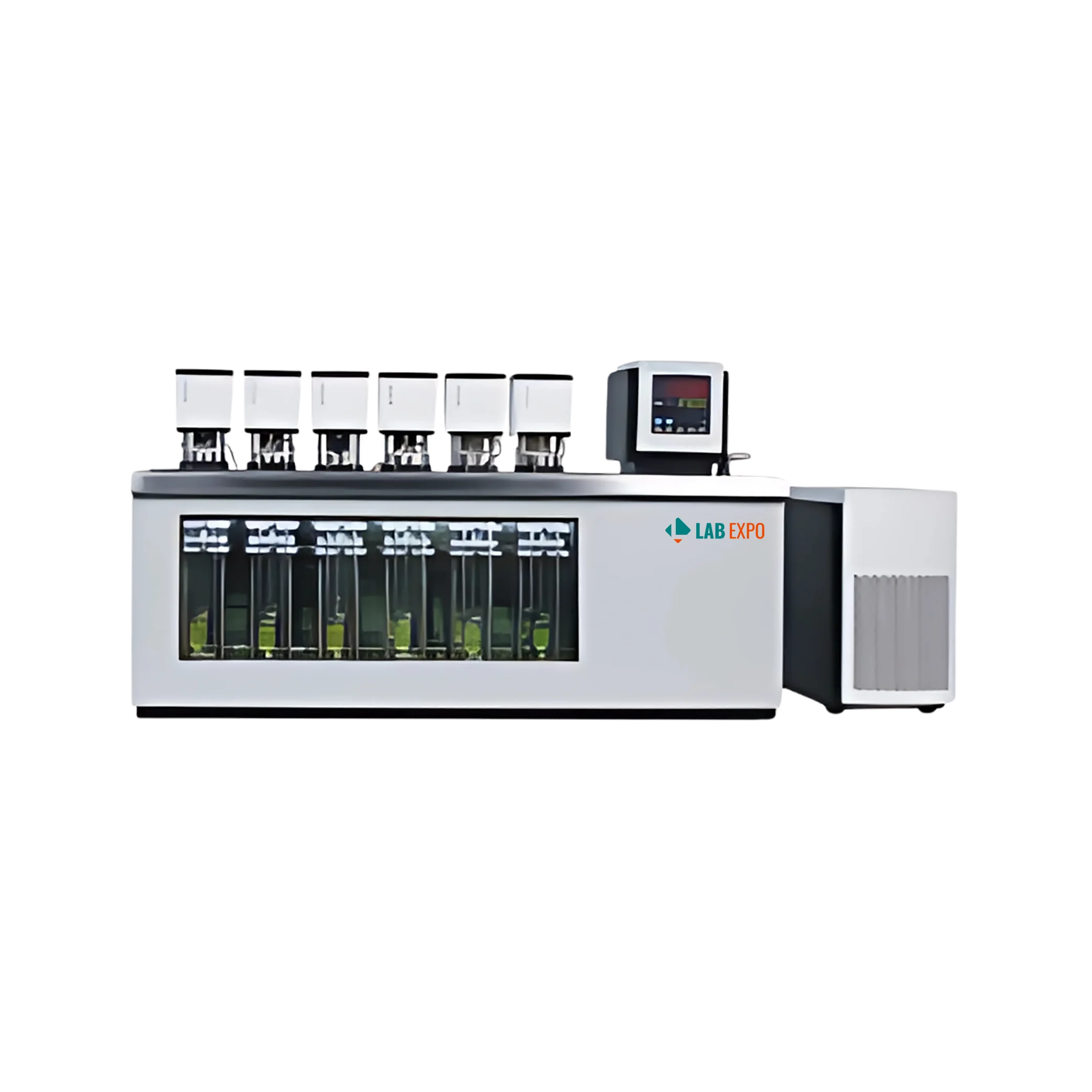

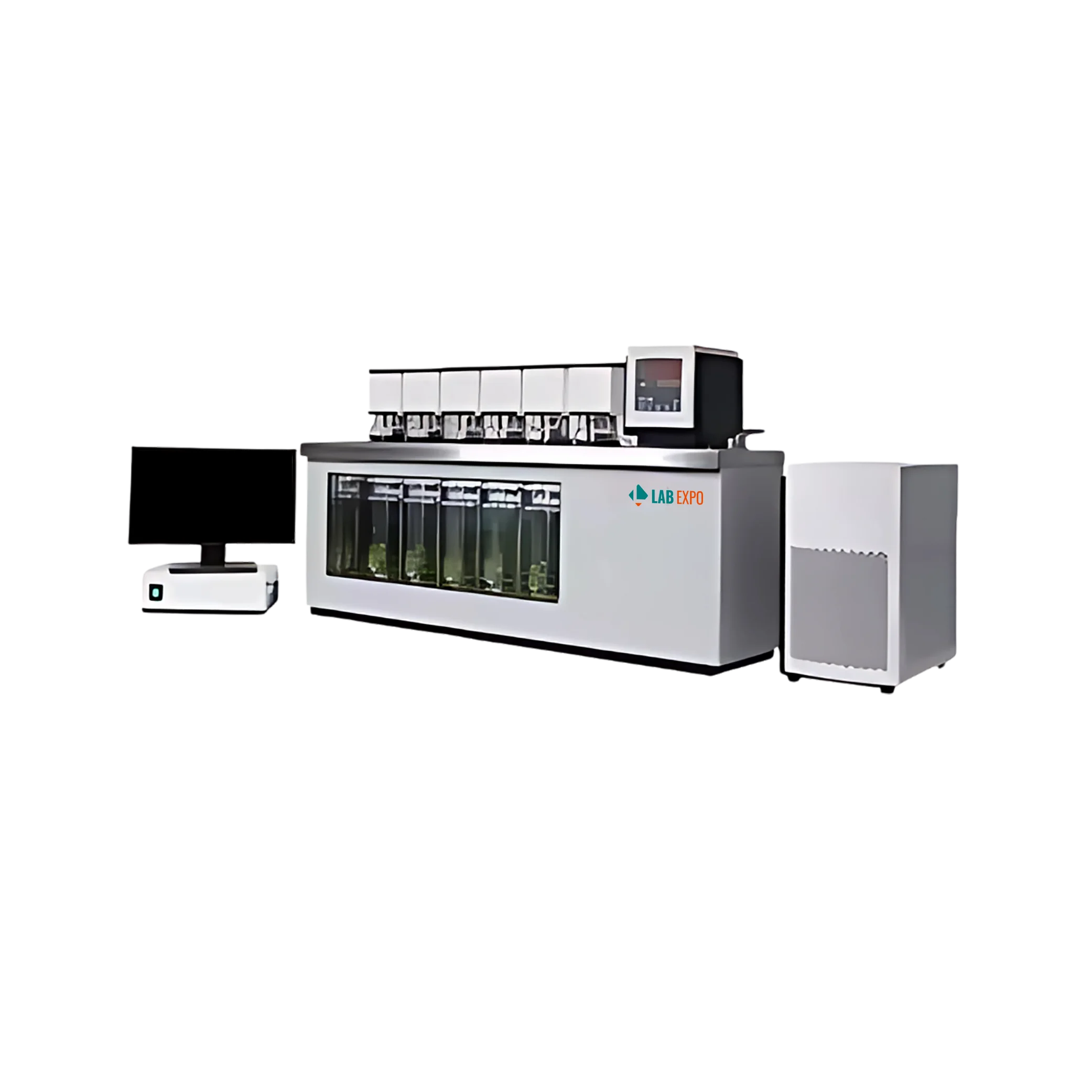

Lab Expo Ubbelohde Viscometer 52-UVM102 has LCD display screen to show the running status of each measurement unit, precisely 6 units at the same time. It has 6 measuring positions & it can obtain intrinsic viscosity through one point method. There is no need to monitor the process after the start in this viscometer, the auto test runs continuously until the test gets completed. It accurately controls the temperature, time & flow rate of fluid tested. It meets FDA & GLP regulations on experiment data management.
$57,600.00 $ 48000
| Measuring range | 0.3 - 50000 mm2/s |
| Measure position | 6 |
| Bath volume | 41 L |
| Timing accuracy | 0.01 s |
| Temperature range | 5 °C - 95 °C |
| Temperature fluctuation & uniformity | ± 0.01 °C |
| Temperature accuracy | Better than ± 0.01 °C |
| Water bath Inner dimension | 920 × 170 × 320 mm |
| Water bath Outer dimension | 990 × 330 × 500 mm |
| Heating power | 1 kW, 220 V |
| Material applicable | PET, PS, SAN, PBT, PMMA, PCT, PA, PIB, TPU, PAM, PSU, PEN, PC, PLA,CA, PVC, SB, Chitin, PAN, TP etc. |
Function Implementation Quality control labs ±0.01°C temperature accuracy ensures reliable viscosity measurements Polymer testing facilities 6 measuring positions enable simultaneous sample analysis Petroleum analysis units 41L bath volume supports extended testing sessions Clinical research labs 0.3-50000 mm²/s measuring range covers diverse fluid types Industrial material testing ±0.01s timing accuracy provides precise flow rate data
Lab Expo Ubbelohde Viscometer units are used for kinematic viscosity measurement in petroleum, chemical, and fluid analysis applications. Models support ubbelohde and capillary viscometer testing with measuring ranges from 0.3 to 50000 mm²/s, multiple measuring positions, and controlled oil bath temperature operation up to 180°C.
