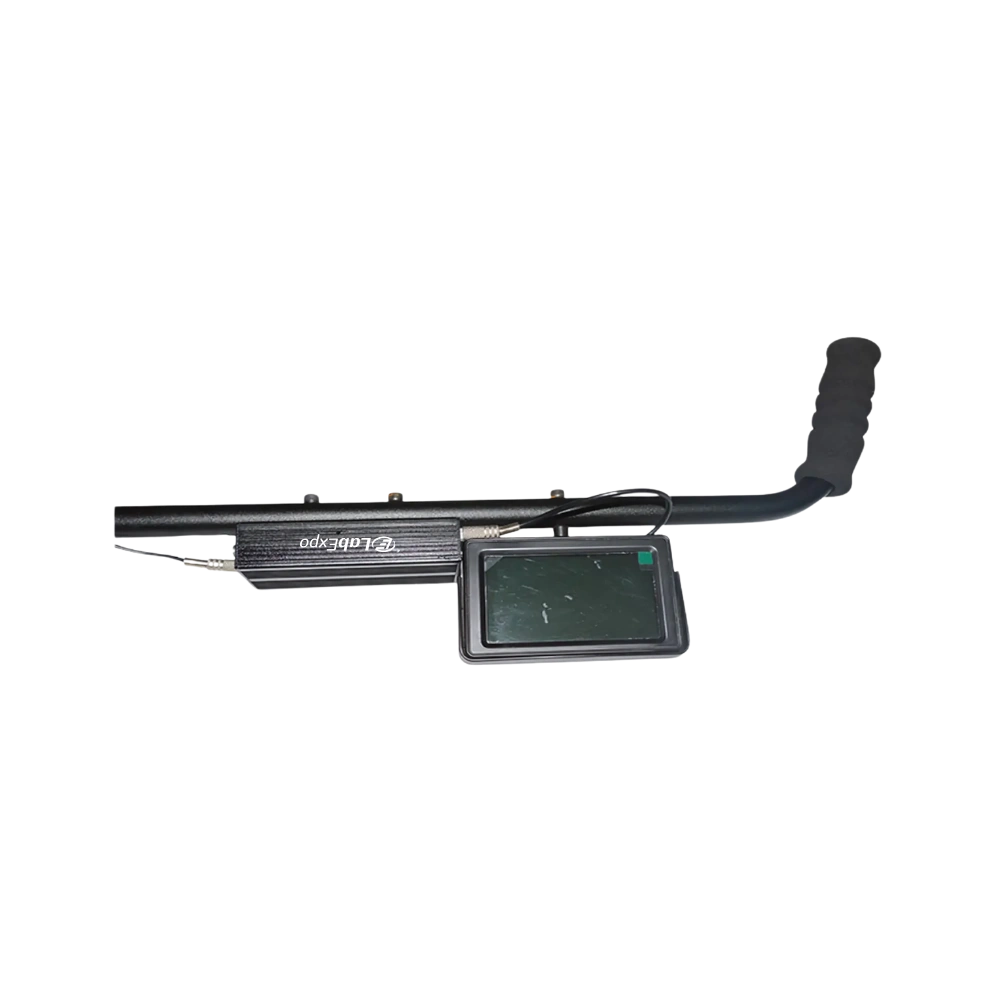

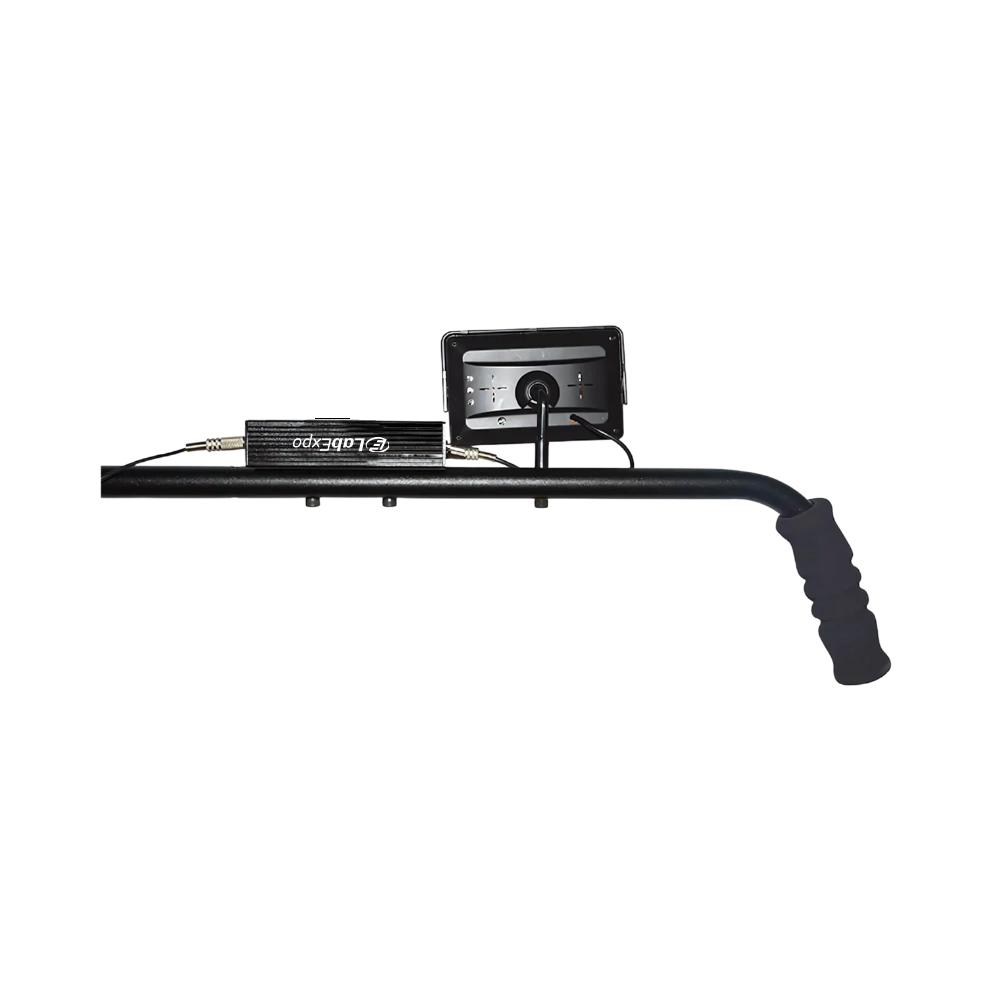

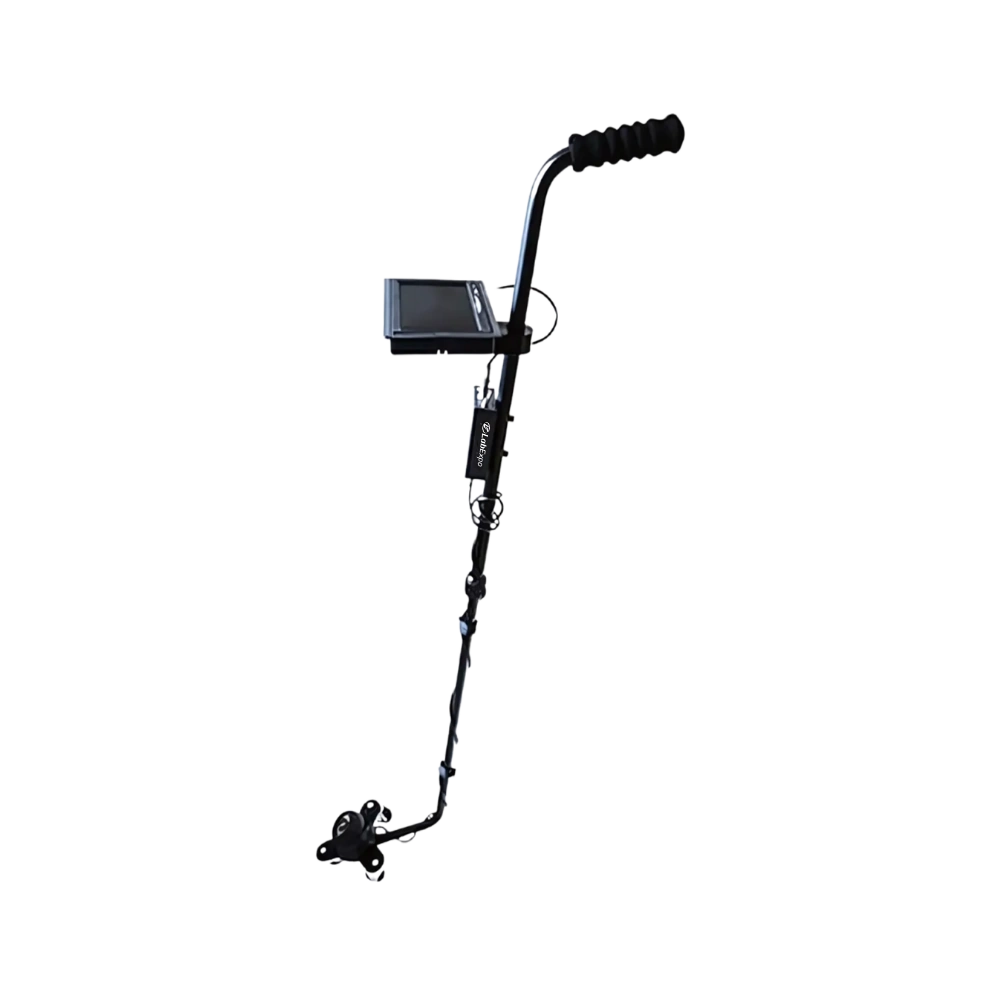

Lab Expo Under Vehicle Surveillance System LE-UVSS102 provides an advanced Sony imaging chip for superior clarity and pixel depth in every frame. It is with infrared sensors for enhanced surveillance during night-time or low-light operations. Equipped with a wide-angle AHD camera for distortion-free visuals across the entire undercarriage span. Our Under Vehicle Surveillance System guarantees dependable monitoring in high-security environments.
$1,428.00 $ 1190
| Rod Length | 120 to 140cm |
| Camera | AHD Sensor |
| Camera Lens Angle | 120° Wide Angle |
| Camera Chip | 1/3 420 Sony Chip |
| Pixels | 384000 |
| Infrared Distance | 3 to 5m |
| Universal Wheel | 3 |
| Display | 4.3-inch TFT Digital LCD |
| Resolution | 320 × 240 |
| Power Supply | DC12 V |
Function Implementation Security checkpoints 120° Wide Angle enables full undercarriage coverage Low-light operations Infrared Distance 3 to 5m supports night-time surveillance Mobile deployment sites Rod Length 120 to 140cm allows adjustable positioning High-traffic areas Universal Wheel 3 ensures stable maneuverability Industrial facilities Resolution 320 × 240 provides clear under-vehicle imaging
1: What is the primary function of the LE-UVSS102?
Our system is designed for real-time, high-resolution inspection of vehicle undersides to detect threats or anomalies, especially in high-security zones.
2: What kind of camera does this system use?

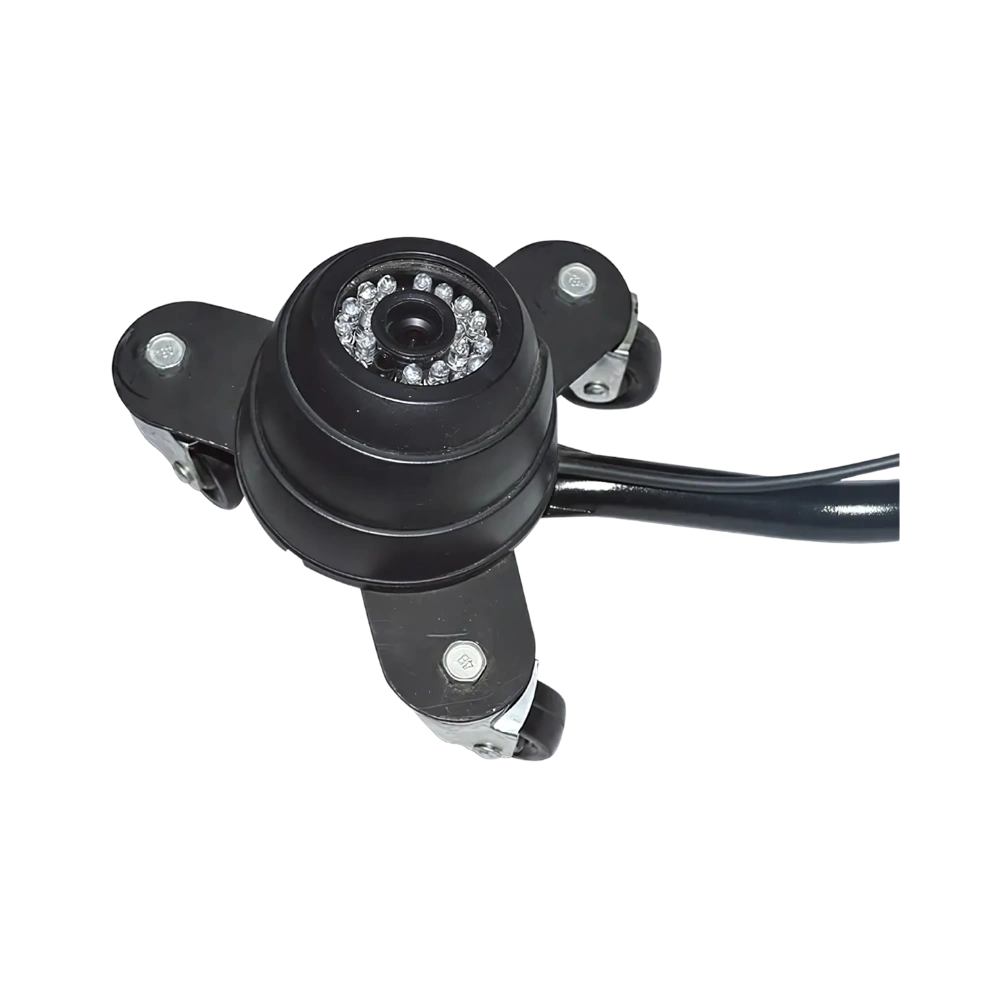

It uses an AHD wide-angle camera with a 1/3 420 Sony chip, offering 384,000 pixels and 120° lens angle for distortion-free visuals.
3: Can it operate in low-light or night conditions?
Yes, our system includes infrared sensors with a range of 3 to 5 meters, enabling clear imaging in night-time or low-light environments.
4: What is the display specification?
It comes with a 4.3-inch TFT digital LCD screen with a resolution of 320 × 240 for live viewing.
5: Can damaged parts be replaced easily?
Yes, the system includes field-replaceable components for quick and cost-effective maintenance.
6: What is the purpose of high-resolution imaging in a UVSS?
High-resolution imaging allows for the capture of clear, detailed images of a vehicle underside, helping operators detect concealed threats, contraband or modifications with precision.
7: What is the benefit of real-time video monitoring in a UVSS?
Real-time video monitoring enables immediate detection of hidden threats, such as explosives or smuggled items and allows security personnel to respond instantly.
8: How does advanced image processing improve UVSS performance?
It enhances image clarity, contrast and sharpness, enabling security teams to detect threats or anomalies quickly and accurately.
9: Why is a rugged and weatherproof design important for UVSS units?
These systems are installed outdoors, so a rugged and weatherproof build ensures consistent performance under rain, dust, heat or cold.
10: Is the image quality maintained at high vehicle speeds?
Advanced processing techniques and high-frame-rate cameras ensure clear images even when vehicles pass through the scanner at moderate speeds.
Lab Expo Under Vehicle Surveillance System units are designed for vehicle underside inspection and security screening in industrial, defense, and checkpoint applications. The range includes under vehicle inspection mirror systems with rod lengths from 880 mm to 3.1 m, convex mirrors up to 300 mm, wide-angle cameras, LED lighting, and CCD linear scan imaging technology for under car inspection mirror analysis.
