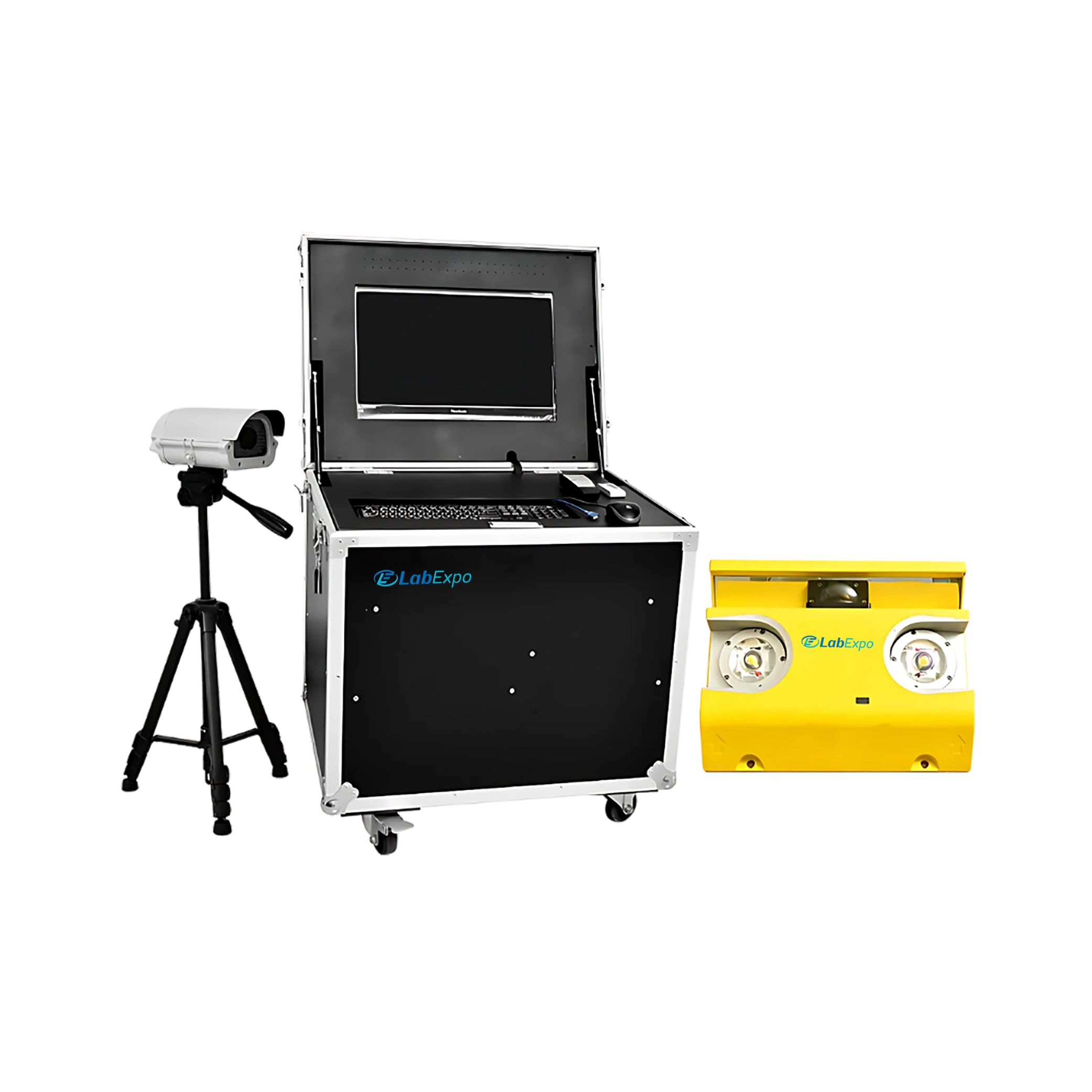

Under Vehicle Surveillance System LE-UVSS201

Name: Under Vehicle Surveillance System LE-UVSS201
Brand: Labexpo
SKU: LE-UVSS201
Rating: 4.9 (922 reviews)

Lab Expo Under Vehicle Surveillance System LE-UVSS201 offers a maximum scan rate of 18 kHz for fast and reliable detection. It features a linear scan and ground coil trigger for accurate detection of hidden vehicle threats. Integrated digital line scan camera provides clear, high-resolution images for undercarriage inspection. Equipped with expansion capabilities, it easily integrates with various systems for enhanced security operations. Our Under Vehicle Surveillance System is portable and ideal for events, border crossings, military zones, and sensitive facility access points.

$14,256.00 $ 11880

Under Vehicle Surveillance System LE-UVSS201 - Specifications

Scanning Method	Linear Scan, Ground Coil Trigger
Maximum Scan Rate	18kHz
Vertical Resolution	2048 Pixel CCD
Image Resolution	>12000 × 6000
Detecting Speed	1 to 60km/h (Recommendation: ≤30km/h)
Scanner Data Time	10m (Customizable Length)
Field of View	≥170°
Lighting Assembly	Single Sealed LED Surface Light Source, Life: 50000 h
Scanning Direction	One-way(Reflex Imaging)/ Two-Way(Top Imaging)
Imaging	Using Black and White/ Color Wire Array CCD Scanning Technology, Dynamic Mode Imaging
Time of Image Saving/Loading
Image Display Mode	Horizontal Display
Image Storage Format	BMP, JPEG
System Interface Language	Customized
Display Resolution	Adapt to Various Display Resolutions
Image Data Transmission Interface	RJ45
Scene Image Display	≥1 Way
Load Bearing	30 T
Image Auto-Saving	10000
Waterproof Level	IP68
Host Monitor	22-inch LCD Display
Memory	DDR3, >2GB
Hard Disk	500GB
Operating Current	3A
Graphics	DDR3, 192BIT, Independent Graphics Card
Data Transmission Cable Length	10 m
Ambient Temperature	-20°C to 60°C
Power Supply	AC 110V to 240V, 50/60Hz
Dimension	400 × 340 × 78 mm (Reflective Imaging)400 × 280 × 80 mm (Top Imaging)
Weight	15.28 Kg (Reflective Imaging)12.75 Kg (Top Imaging)

Under Vehicle Surveillance System LE-UVSS201 - Key Features

Host monitor 22-inch LCD display with real-time monitoring
Multi-language operation supports customized system interface language
Image data transmission interface uses RJ45 connector for networking control functions
IP68 high grade protection ensures waterproof performance in harsh environments

Under Vehicle Surveillance System LE-UVSS201 - Applications

Function	Implementation
Security checkpoints	30 T load bearing supports heavy vehicle inspection
Industrial facilities	18 kHz maximum scan rate enables rapid undercarriage screening
Border control stations	IP68 waterproof level ensures operation in harsh environments
Parking access control	≤30 km/h detecting speed allows accurate threat identification
Military installations	≥170° field of view provides comprehensive under-vehicle coverage

Under Vehicle Surveillance System LE-UVSS201 - Optional Accessories

Car license plate recognition

Under Vehicle Surveillance System LE-UVSS201 - Catalog

Under Vehicle Surveillance System LE-UVSS201 Catalog
