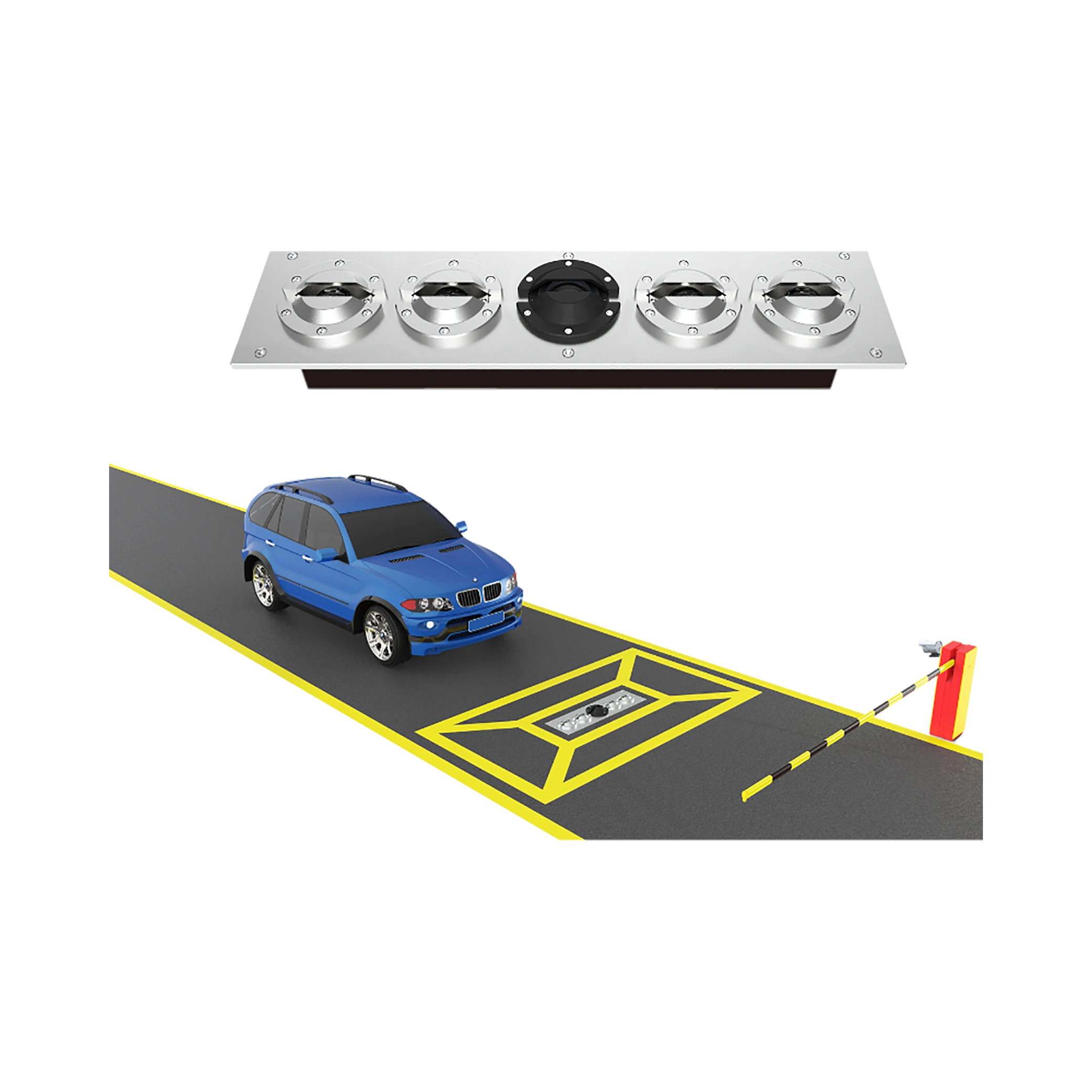

Under Vehicle Surveillance System LE-UVSS202

Name: Under Vehicle Surveillance System LE-UVSS202
Brand: Labexpo
SKU: LE-UVSS202
Rating: 4.9 (645 reviews)

Lab Expo Under Vehicle Surveillance System LE-UVSS202 is designed for fast, accurate inspections with an 18 kHz scan rate. It delivers clear images with a digital camera to detect small hidden objects. Incorporated RFID technology enables effective vehicle identification during scanning and monitoring operations. Equipped with networking control functions, it integrates easily with devices and security platforms. Our Under Vehicle Surveillance System is suitable for airports, prisons, customs, parking lots, and government buildings.

$22,896.00 $ 19080

Under Vehicle Surveillance System LE-UVSS202 - Specifications

Scanning Method	Linear Scan, Ground Coil Trigger
Maximum Scan Rate	18kHz
Vertical Resolution	2048 Pixel CCD
Image Resolution	>12000 × 6000
Detecting Speed	1 to 60km/h (Recommendation: ≤30km/h)
Scanner Data Time	10m (Customizable Length)
Field of View	≥170°
Lighting Assembly	Single Sealed LED Surface Light Source, Life: 50000 h
Scanning Direction	Two-way
Imaging	Using Black and White/ Color Wire Array CCD Scanning Technology, Dynamic Mode Imaging
Time of Image Saving/Loading
Image Display Mode	Horizontal Display
Image Storage Format	BMP, JPEG
System Interface Language	Customized
Display Resolution	Adapt to Various Display Resolutions
Image Data Transmission Interface	RJ45
Scene Image Display	≥1 Way
Load Bearing	50 T
Image Auto-Saving	10000
Host Monitor	22-inch LCD Display
Memory	DDR3, >2GB
Hard Disk	500GB
Operating Current	3A
Graphics	DDR3, 192BIT, Independent Graphics Card
Ambient Temperature	-20°C to 60°C
Operating Temperature	-35°C to 60°C
Power Supply	AC 110V to 240V, 50/60Hz
Dimension	1100 × 280 × 234 mm
Weight	105 Kg

Under Vehicle Surveillance System LE-UVSS202 - Key Features

Recording function with 10000 image auto-saving capacity
Multi-language operation supporting customized interface language
IP68 high grade protection for environmental resilience
Real-time monitoring with
Multi-channel image monitoring via ≥1 way scene display

Under Vehicle Surveillance System LE-UVSS202 - Applications

Function	Implementation
Airport security checkpoints	18kHz scan rate enables rapid vehicle undercarriage inspection
Prison facility entrances	≤30km/h recommended speed ensures thorough threat detection
Customs border crossings	50 T load bearing supports heavy truck and trailer scanning
Parking lot access control	<1s image saving/loading allows real-time monitoring
Industrial site perimeters	-35°C to 60°C operating temperature ensures all-weather operation

Under Vehicle Surveillance System LE-UVSS202 - Optional Accessories

Car license plate recognition

Under Vehicle Surveillance System LE-UVSS202 - Catalog

Under Vehicle Surveillance System LE-UVSS202 Catalog
