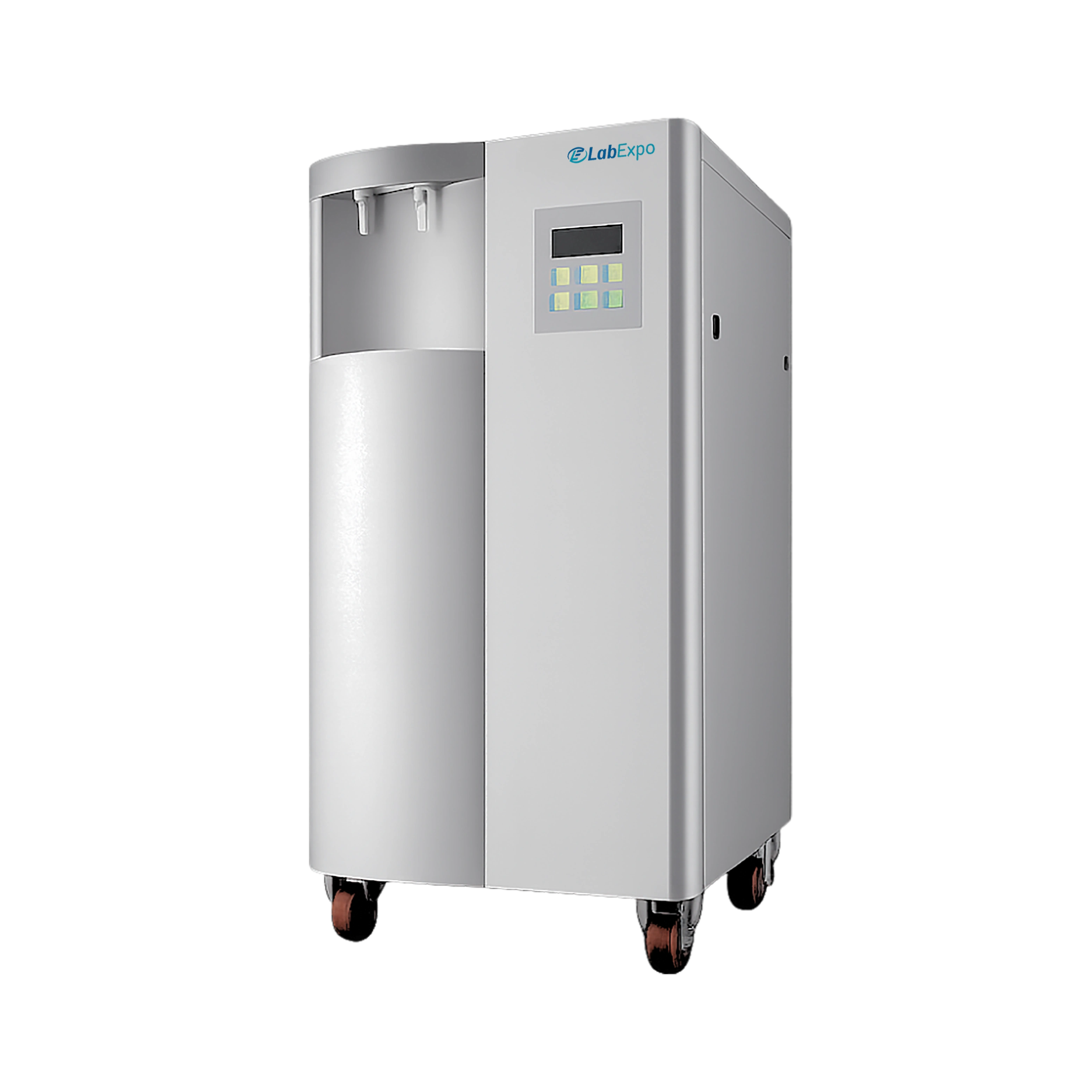

UV Water Purification System 58-UVW104

Lab Expo UV Water Purification System is a 80 L capacited revolutionary, modular design integrated with deionization cartridge, storage tank and UV sterilizer which helps in elimination of large amount of salts and other minerals from water using RO with TOC level of < 10 ppb. The highlight feature is the UV sterilizer which destroys the DNA of micro-org making the water contamination free. This system produce and reject water at the same time. It’s designed to deliver compliant purified water with clear quality parameters and care free maintenance

$7,181.00 $ 5984

UV Water Purification System 58-UVW104 - Specifications

Output of Pure water ≥ 50 L / hr.
Process Single Pass RO system
Configuration Floor Standing
Water Tank capacity 80 L
Output of Ultrapure water ≥ 1 to 1.5 L / min
Resistivity at 25 °C 18.25 M Ω. cm
Conductivity at 25 °C ≤ 10 µs / cm
TOC < 10 ppb
Pyrogens / Endotoxins < 0.025 EU / ml
Bacteria < 1 cfu / ml
Particles ( > 0.22 µm ) < 1 / ml
Absorbance ( 254 nm ) ≤ 0.001
Reactive Silica ( SiO2 ) < 0.01 ppm
Heavy metal < 0.01 ppm
Electrical requirements 220 V / 50 Hz
Power ≥ 350 W
Dimensions ( L x W x H ) 340 x 550 x 530 mm
Weight 32 kg

UV Water Purification System 58-UVW104 - Key Features

  • Single pass RO system with ≥ 50 L per hour pure water output
  • Ultrapure water delivery ≥ 1 to 1.5 L per min with 18.25 M ohm cm resistivity
  • Integrated UV sterilizer with TOC < 10 ppb and bacteria < 1 cfu per ml
  • Built in 80 L storage tank with floor standing configuration
  • Automatic RO flushing and water shortage alarm protection system

UV Water Purification System 58-UVW104 - Applications

FunctionImplementation
Water quality testing18.25 MΩ·cm resistivity supports high-purity analysis
Clinical laboratory use< 0.025 EU/ml endotoxins enables sterile applications
Industrial process control≤ 1 µS/cm conductivity ensures consistent rinse water
Pharmaceutical preparation≥ 1 to 1.5 L/min output meets batch processing needs
Research facility supply< 10 ppb TOC maintains analytical reagent integrity

UV Water Purification System 58-UVW104 - Catalog

UV Water Purification System 58-UVW104 Catalog

Related UV Water Purification System

Lab Expo UV Water Purification Systems are structured around ultraviolet sterilization stages combined with RO filtration to control microbial and organic contaminants. This uv purification of water platform applies UV exposure with membrane-based separation to maintain consistent purity levels. Integrated RO membrane cleaning, real-time LCD supervision, and modular capacity options support stable water output for laboratory, pharmaceutical, healthcare, and industrial workflows.
